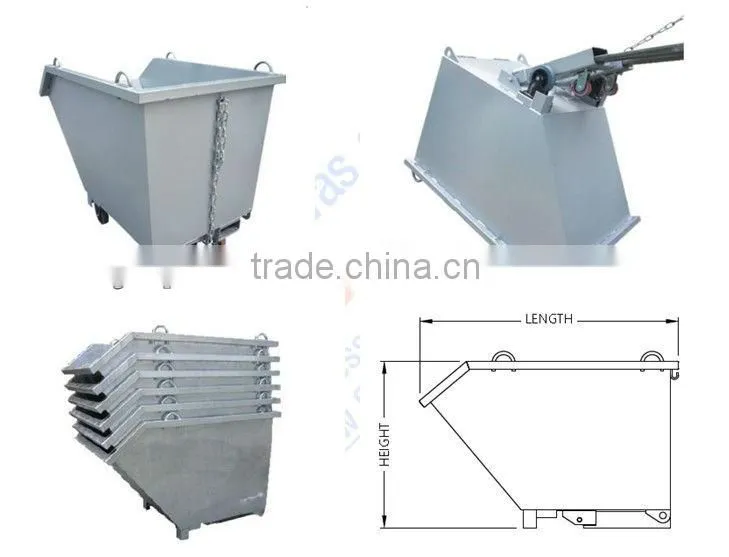

CSD steel tipping hopper bin
Function & Application
1. The economical CSD bin is a self dumping bin suitable for most waste handing applications. The bin is supplied standard with 4 crane lugs and upending lugs under.
2. It is also fitted with a drain plug and wheel brackets(wheels not supplied unless ordered).Beging a nesting bin, it uses a minimum of space for stoage and transport.Available in either painted or zinc plated finish.
Specification
Safe Working Load 1500kg
Unit Weight – refer Table
Volume Capacity – refer Table
Pocket size 185 x 75mm
CSD9 Pocket Centres – 340mm
CSD12 Pocket Centres – 630mm
HCG 550mm
VCG 340mm
Wheels Optional
Drain Valve & Strainer Optional
Model Number |
Max.ForkSize(mm) |
ExternalSizeH * W * L(mm) |
UnitWeight(kg) |
Capacity(kg) |
Vol.(m³) |
|
CSD9 |
185*75 |
1010*1010*1570 |
180 |
1000 |
0.95 |
|
CSD12 |
185*75 |
1010*1310*570 |
205 |
1000 |
1.25 |
|
CSD20 |
200*100 |
1210*1770*1510 |
365 |
2500 |
2.00 |
