Help CenterType CSD Stainless Steel Forklift Tipping Skip
Related Products
1) Type CSD forklift tipping skips
2) Crane Lugs fitted standard
3) Drain Plug fitted standard

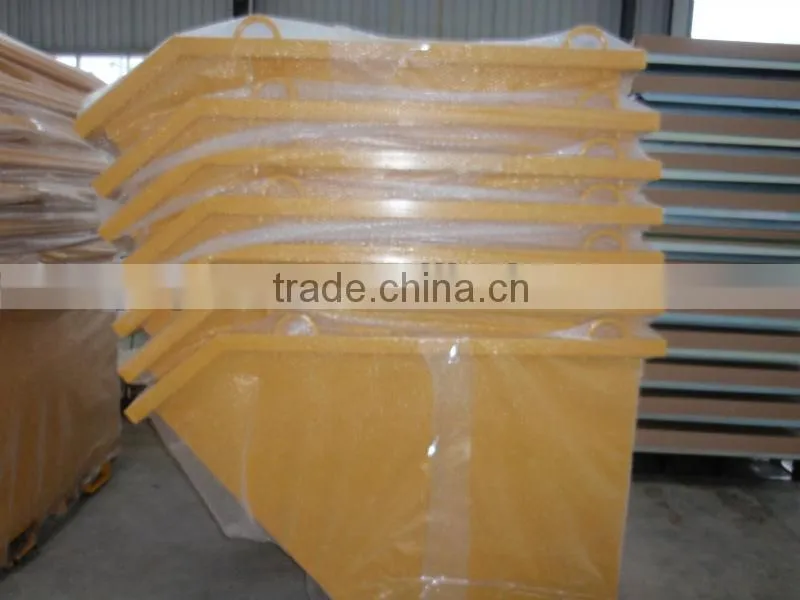

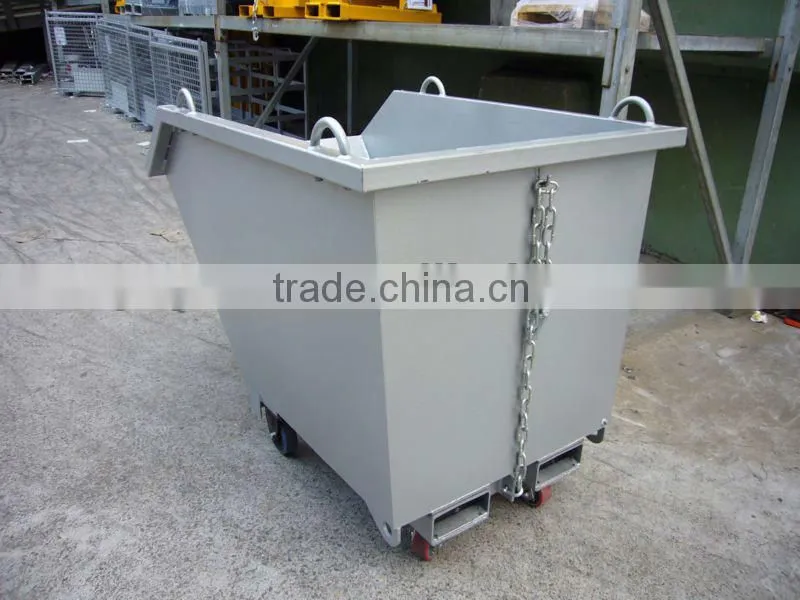

CSD Stainless Steel Forklift Tpping Skip
1, The economical type CSD Tipping Bin is a self dumping bin suitable for most waste handling applications. Being a nesting bin, it uses minimum of space for storage and transport.
2. This bin is supplied standard with 4 crane lugs and upending lugs. It is also fitted with drain plug and wheel brackets (wheels and lugs not supplied unless ordered).
3, The type CSD Tipping Bins are available in either enamel painted or Galvanised finish.
SPECIFICATIONS:
Safe Working Load 1500kg
Unit Weight – refer Table
Volume Capacity – refer Table
Pocket size 185 x 75mm
CSD9 Pocket Centres – 340mm
CSD12 Pocket Centres – 630mm
HCG 550mm
VCG 340mm
Wheels Optional
Drain Valve & Strainer Optional

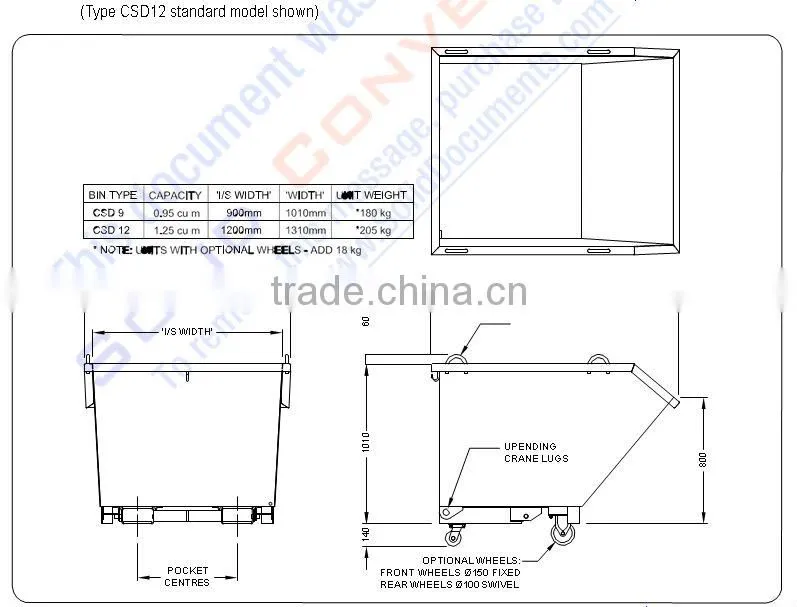

Model Number |
Max.ForkSize(mm) |
ExternalSizeH * W * L(mm) |
UnitWeight(kg) |
Capacity(kg) |
Vol.(m³) |
|
CSD9 |
185*75 |
1010*1010*1570 |
180 |
1000 |
0.95 |
|
CSD12 |
185*75 |
1010*1310*570 |
205 |
1000 |
1.25 |
|
CSD20 |
200*100 |
1210*1770*1510 |
365 |
2500 |
2.00 |
