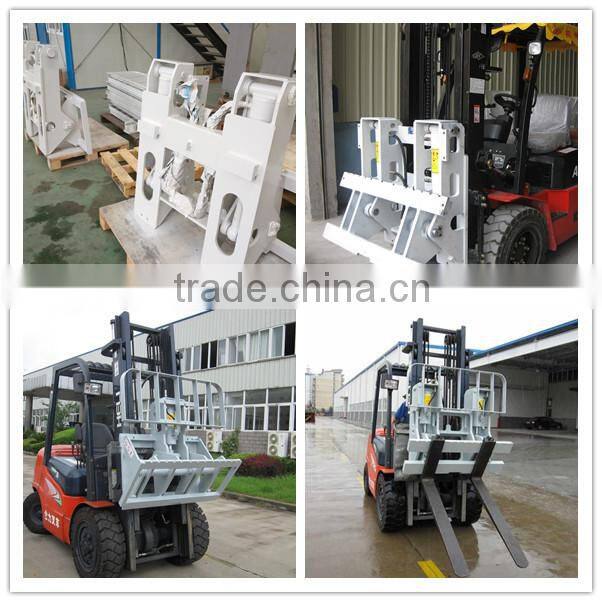

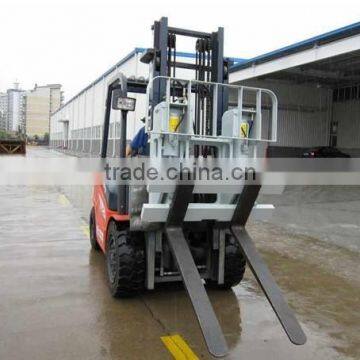

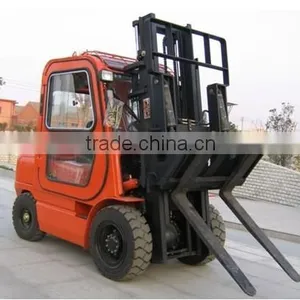

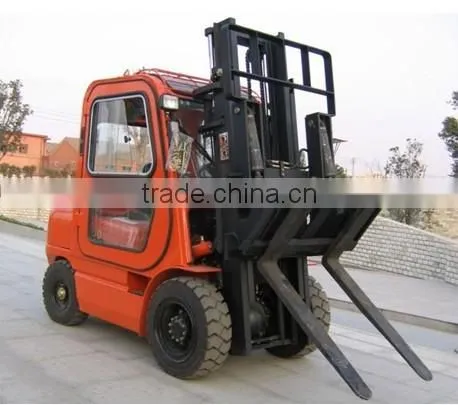

Forklift Hydraulic Hinged Fork
1. Application:
Forklift hinged forks are widely used for wood industry, architecture and onstruction, metal industry,
livestock industry.Designed primarily for handling lumber, the hinged fork can also be conveniently used for
handling palletized loads. The optional bucket allows the forklift to handle bulk materials, such as coal, gravel and sand. With features like these,thisattachment can be used in applications ranging from lumber yards to shipping terminals.
2.Characteristics
- High-strength all-steel structure design, always of high efficiency under continuous operation.
- E-slot in the overall framework to improve the stability of product, to extend the longevity of product.
- Reasonable design, nice outlook, using the world's most high-quality hydraulic components.
-Excellent visibility.
-Rugged lightweight construction.
-Fast arm opening speeds with less energy consumption.
-High net capacity.
3.Specification
| Capacity@ Load Center |
Catalog Order No. |
Fork | Carriage Width |
Truck Mounting Class |
Hinged Fork Mounting Class |
Overall Height |
Tilt Forward Tilt Backward |
Weight | Effective Thickness |
Horizontal Center of Gravity |
| (kg@mm) | (mm) | (mm) | (kg) | ET (mm) |
CGH (mm) |
|||||
| 2000@500 | HFB20D-001A | no | 1040 | II | II | 955 | 45°/25° | 320 | 310 | 132 |
| 2500@500 | HFB25D-002A | no | 1040 | II | II | 955 | 45°/25° | 320 | 390 | 132 |
| 3000@500 | HFB30D-003A | no | 1100 | III | III | 968 | 45°/25° | 335 | 325 | 132 |
| 3500@500 | HFB35D-002B | no | 1100 | III | III | 1175 | 45°/25° | 400 | 383 | 132 |
| 4000@500 | HFB40D-003B | no | 1100 | III | III | 1388 | 45°/25° | 480 | 395 | 195 |
| 4500@500 | HFB45D-004B | no | 1450 | III | III | 1388 | 45°/25° | 800 | 425 | 195 |
| 2200@500 | FMS30D-008B | III | 790-2600 | 400 | 1800 | 730 | 255 | 680 | 200 | 300 |
Remark: One set additional oil circuit required on forklift
4. Options
-Different mounting class
-Different bar width
-Fork
-Bucket
-Heighten load backrest
5.Packages
