Product Details
Brand Name: | WONTONNE | Model Number: | Hydraulic Attachment-Paper Roll Clam |
Product Description

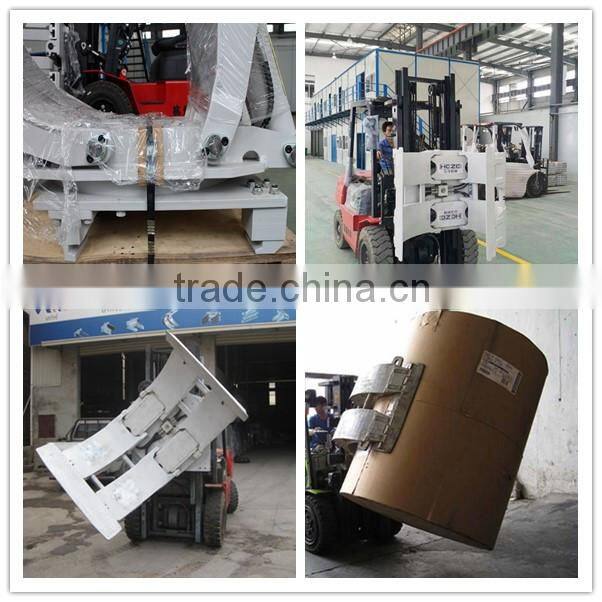

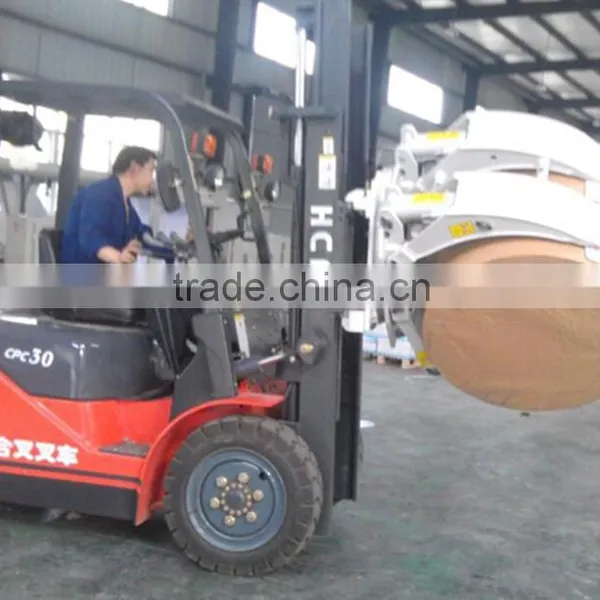

360 Degree Rotating Forklift With Clamp for Paper Roll
1. Applications:
360 Degree Rotating Forklift Paper Roll Clamp meeting the needs of industries from stevedoring to printing for damage free roll handling with maximum efficiency.
2. Features:
-Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.
-Continuous 360 degree rotation,any angle position of lock function,revolving positing 90degree or 180 degree.
-Hydraulic retention of cylinder valves is to ensure reliable lamping of long distance transportation.
*WONTONNE brand is first class in China, which technology close to CASCADE.
*Key parts and accessories are world class

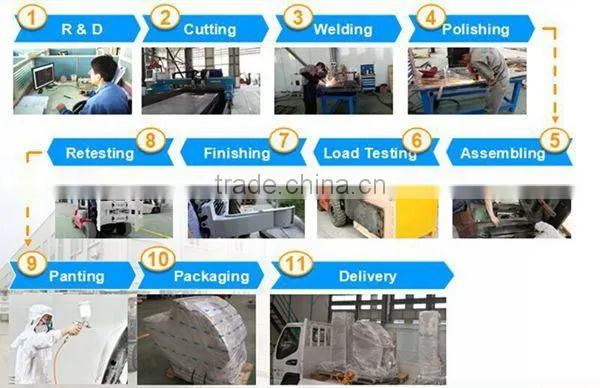

*Strict production flow
3. Specifications of 360° Rotating Paper Roll Clamp
Capacity | Roll | Catalog | Type | Mounting | Mounting | Long | Short | Long | Weight | Effective | Horizontal |
Range | Order No. | Class | Angle | Arm | Arm | Arm | Thickness | Center of | |||
Thickness | Length | Thickness | Gravity | ||||||||
(kg) | (mm) | A(mm) | C(mm) | B(mm) | (kg) | ET(mm) | CGH(mm) | ||||
2000 | 250-1300 | RCP20F-001A | A | II | 0° | 825 | 570 | 45 | 677 | 197 | 287 |
2000 | 250-1300 | RCP20F-001B | B | III | 0° | 825 | 570 | 45 | 690 | 237 | 325 |
2000 | 630-1300 | RCF20F-002A | A | II | 0° | 825 | 570 | 45 | 667 | 197 | 282 |
2000 | 630-1300 | RCF20F-002B | A | III | 0° | 825 | 570 | 45 | 681 | 237 | 320 |
2000 | 250-1500 | RCP20F-003A | B | II | 0° | 955 | 775 | 95 | 751 | 197 | 283 |
2000 | 250-1500 | RCP20F-003B | B | III | 0° | 955 | 775 | 95 | 765 | 237 | 307 |
2000 | 530-1500 | RCF20F-004A | A | II | 0° | 955 | 775 | 95 | 744 | 197 | 280 |
2000 | 530-1500 | RCF20F-004B | A | III | 0° | 955 | 775 | 95 | 758 | 237 | 304 |
2000 | 630-1600 | RCF20F-005A/B | A | II/III | 0° | 955 | 775 | 95 | 755 | 183/216 | 301 |
2000 | 350-1600 | RCP20F-006A/B | B | II/III | 0° | 955 | 775 | 95 | 765 | 183/216 | 304 |
1700 | 680-1830 | RCF20F-007A | A | III | 0° | 1130 | 930 | 115 | 880 | 239 | 445 |
1700 | 380-1830 | RCP20F-008B | B | III | 0° | 1130 | 930 | 115 | 886 | 239 | 445 |
2700 | 330-1350 | RCP30F-009B | B | III | 0° | 850 | 570 | 65 | 759 | 198 | 272 |
2700 | 590-1350 | RCF30F-012B | A | III | 0° | 850 | 570 | 65 | 752 | 198 | 272 |
2700 | 250-1520 | RCP30F-011B | B | III | 0° | 955 | 685 | 50 | 830 | 198 | 307 |
2700 | 560-1520 | RCF30F-010B | A | III | 0° | 955 | 685 | 50 | 823 | 198 | 307 |
2000 | 250-1300 | RCS20D-001A | C | II | 0° | 825 | 560 | 45 | 717 | 197 | 269 |
2000 | 250-1300 | RCS20D-001B | C | III | 0° | 825 | 560 | 45 | 731 | 237 | 307 |
2700 | 250-1300 | RCS30D-002A | C | II | 0° | 845 | 570 | 70 | 854 | 203 | 277 |
2700 | 250-1300 | RCS30S-002B | C | III | 0° | 845 | 570 | 70 | 858 | 198 | 272 |
3500 | 250-1520 | RCP35F-001B | B | III | 0° | 1000 | 670 | 65 | 1190 | 218 | 320 |
3500 | 250-1520 | RCP35F-001C | B | IV | 0° | 1000 | 670 | 65 | 1199 | 218 | 320 |
3500 | 610-1520 | RCF35F-002B | B | III | 0° | 1000 | 670 | 65 | 1180 | 218 | 320 |
3500 | 610-1520 | RCF35F-002C | B | IV | 0° | 1000 | 670 | 65 | 1190 | 218 | 320 |
2700 | 360-1830 | RCP35F-003B | B | III | 0° | 1165 | 810 | 65 | 1289 | 218 | 353 |
2700 | 360-1830 | RCP35F-003C | B | IV | 0° | 1165 | 810 | 65 | 1298 | 218 | 353 |
2700 | 635-1830 | RCF35F-004B | A | III | 0° | 1165 | 810 | 65 | 1280 | 218 | 353 |
2700 | 635-1830 | RCF35F-004C | A | IV | 0° | 1165 | 810 | 65 | 1289 | 218 | 353 |
4000 | 250-1300 | RCP35F-007B | B | III | 0° | 875 | 575 | 65 | 1146 | 218 | 295 |
4000 | 250-1300 | RCP35F-007C | B | IV | 0° | 875 | 575 | 65 | 1155 | 218 | 295 |
4000 | 560-1300 | RCF35F-008B | A | III | 0° | 875 | 575 | 65 | 1137 | 218 | 295 |
4000 | 560-1300 | RCF35F-008C | A | IV | 0° | 875 | 575 | 65 | 1146 | 218 | 295 |

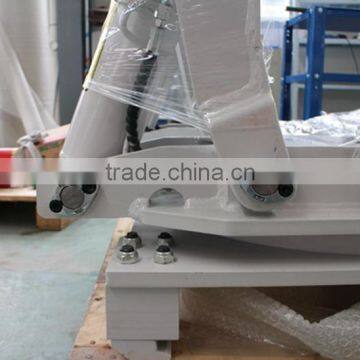

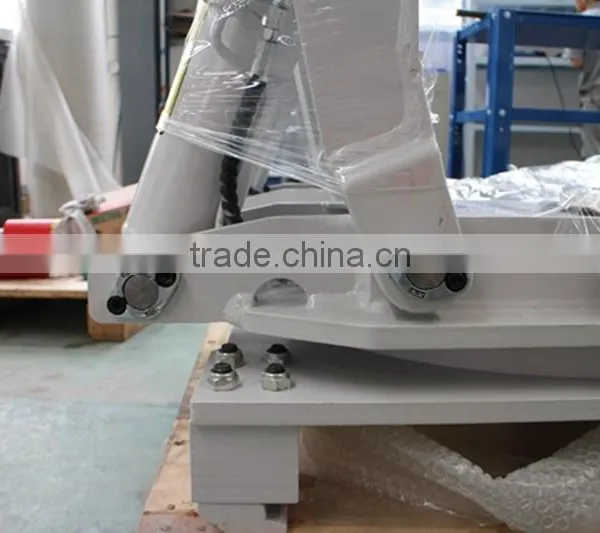

4. Good packages
5. Options and Accessories:
Custom designed opening ranges.
Positioned short arm or fixed short arm.
Split long arm.
Special pads.
