1200C programmable 70mm tube oven RTP CY high efficiency furnace
Application of cy high efficiency furnace
1.Regional refinding for semiconductor of germanium and silicon
2.CVD experiment
3.Preparation of carbon nanotubes
4.Growth of graphene
5.Crystalline silicon substrate coating
6.Diffusion welding for metal materials
7.Heat treatment under the vacuum of atmosphere surroundings
Features of cy high efficiency furnace
1.Fast heating and cooling, maximum rate: 0-100°c/min
2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc
3.LED display or LCD touch screen
4.Slide type, can manual sliding or electric sliding
5.Can connect with vacuum pump and atmosphere furnace.
Technical parameters
| Model | CY-O1200-80IC-MRTP |
| Display | LED |
| Chamber material | imported fiber |
| Heating element | imported alloy heating wire |
| Max.temperature | 1200℃ |
| Working temperature | ≤1100℃ |
| Heating rate | 0-100℃ |
| Heating zone | Single |
| Temperature zone length | 420mm |
| Thermostatic zone length | 200mm |
| Tube Material | high purity quartz |
| Tube Size | 80mm |
| Tube length | 1400mm |
| Flange connection | water cooling stainless steel flange |
| Control mode | PID automatic control via SCR power control |
| Temperature accuracy | ±1℃ |
| Working voltage | AC 220V 50-60Hz |
| Main power | 2.5kw |
| Slide material | 304 stainless steel+high strength aluminum alloy |
| Thermal couple | K type |
| Gross weight | 80kg |
| Optional equipment | flowmeter, high vacuum system, LCD control system |

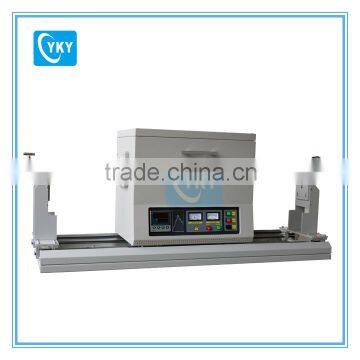

Picture of cy high efficiency furnace
Packaging of cy high efficiency furnace
PLY wood box as below picture, or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Processing room
Show room
Contact information
Skype ID: jennyhao8819
Whatsapp/wechat/viber:008615639272359
Tel:0086-0371-55199322
Fax:0086-0371-86036875
Website:
We are always at our service in 24 hours
