1700c High Temperature Dual zone Laboratory Vertical Tube Furnaces for Sale
Brief Introduction
Fluidized Bed Vertical Furnace with 1'' O.D Alundum tube (2'' O.D enlarged central area) for powder CVD applications. It consists a vertical positioned cylindrical heating chamber which surrounds the tube with a built-in filter right in the lower middle section of the central heating zone. Its filter is a porous (15~40 microns) quartz frit that allows the controlled gas flow pass through and float the particles on a cushion of the gas stream where the interaction between the solid and gaseous materials take place.
It is widely used in Colleges and universities, research institutes, industrial and mining enterprises to do the high temperature sintering atmosphere, reducing atmosphere, CVD experimental, vacuum annealing, etc.
Featrues
1.Chamber adopt imported high quality Alumina fiber, it has good heat keeping performance.
2.Heating element is made of 1800 type MoSi2, it has high surface load, high resistivity, good oxidation resistance, temperature can reach 12700 degree
3.High purity alundum tube, strong chemical stability, corrosion resistance, and thermal expansion coefficient
4.Open type furnace cover, can monitor the material's heating condition,and fast cooling.
5.Vacuum flange has gas insert/outlet port, can equipped with the vacuum system and gas mixer to be a CVD system.
6.Over heat alarm and cut off function, protect user from dangrous
Technical parmaters of vertical tube furnaces
| Model | CY-O1700-50IIC-V |
| Limiting temperature | 1700℃ |
| Working temperature | ≤1650℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature zone | 200mm+200mm (as customized) |
| Temperature accuracy | ±1℃ |
| Chamber size | Φ50×1000(mm) |
| Heating element | MoSi2 |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heatingcurves | 30 steps programmable |
| Rated power | 3.5 kw |
| Chamber material | alumina fiber |
| Constant heating zone | 100+100mm |
| Working voltage | AC 220V 50-60Hz |
| Standard accessories | sealed flanges 1 pcs, O rings 4 pcs, quartz tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs |

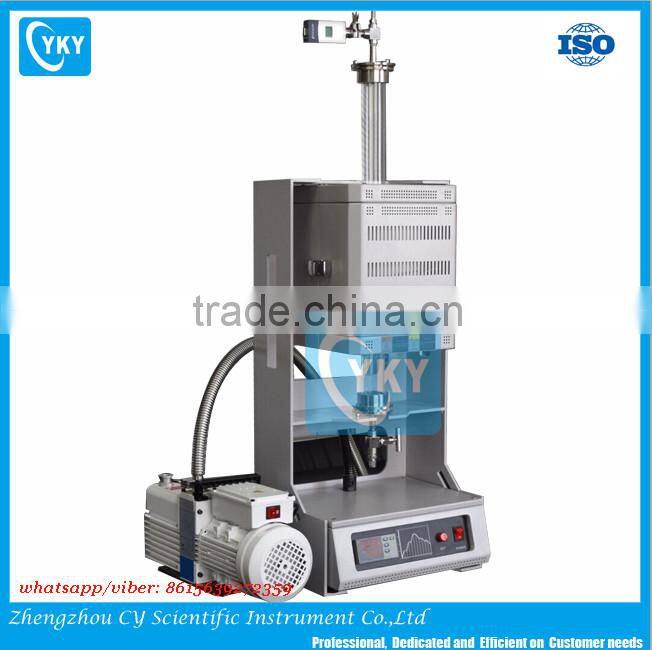

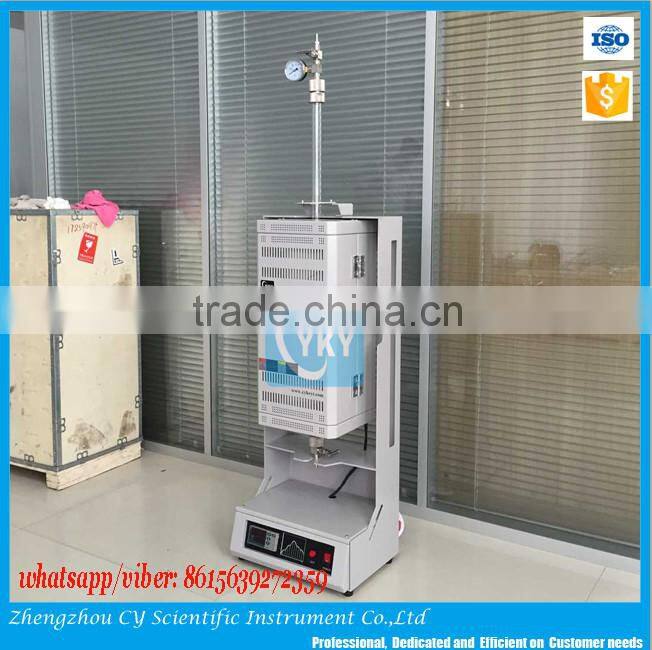

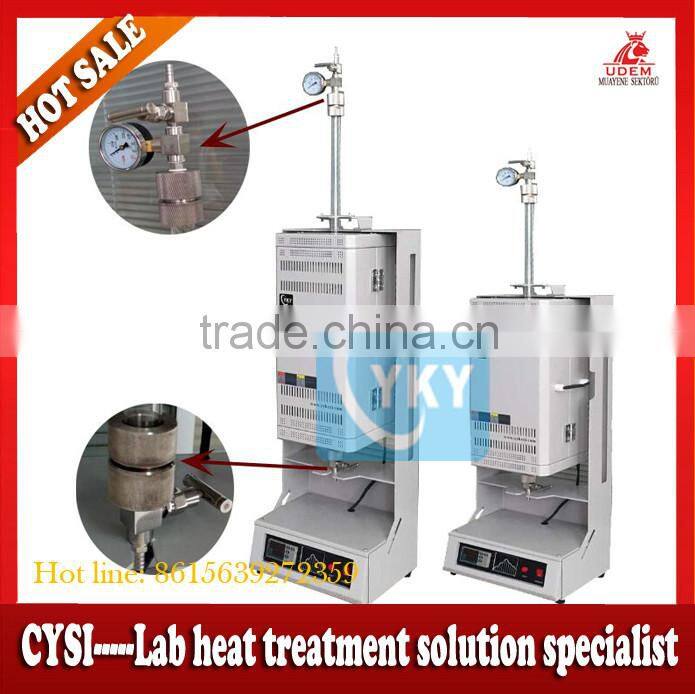

Pictures show of vertical tube furnaces
Packaging of vertical tube furnaces
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
sealed flanges 1 pcs, O rings 4 pcs, quartz tube 1 pcs, pipe plug 4 pcs, oven gloves, crucible tongs 1 pcs
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Contact information
Skype ID: jennyhao8819
Whatsapp/wechat/viber:008615639272359
Tel:0086-0371-55199322
Fax:0086-0371-86036875
Website:
We are always at our service in 24 hours
