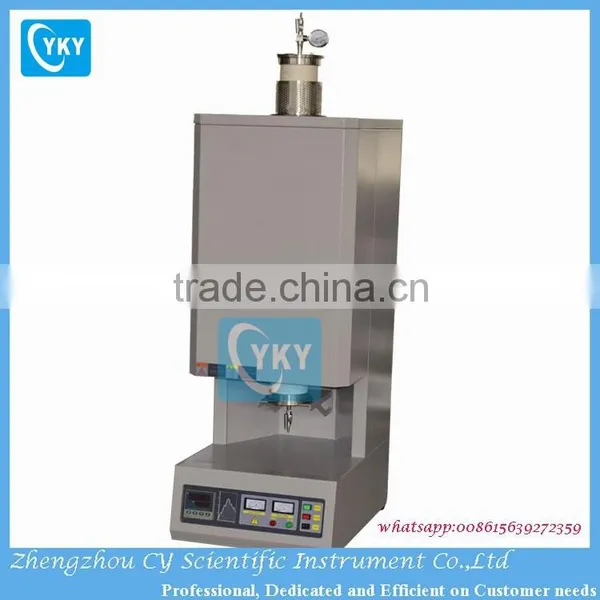

Laboratory high temp sintering vertical tubular furnace manufacturer supplies
Featrues of vertical tubular furnace
1. Double shell casing with three cooling fans
2. high purity corundum, resistance high temperature 1700 ℃
3. Programmable and PID automatic control
4.High purity alumina fibrous chamber material insulation for energy saving
5.Split cover enable faster cooling and easy operate
Technical parmaters of vertical tubular furnace
| Model | CY-O1700-50IIC-V |
| Limiting temperature | 1700℃ |
| Working temperature | ≤1650℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature zone | 200mm+200mm (as customized) |
| Temperature accuracy | ±1℃ |
| Chamber size | Φ50×1000(mm) |
| Heating element | MoSi2 |
| Thermal couple | B Type |
| Temperature control | PID automatic control via SCR power control |
| Heatingcurves | 30 steps programmable |
| Rated power | 3.5 kw |
| Chamber material | alumina fiber |
| Constant heating zone | 100+100mm |
| Working voltage | AC 220V 50-60Hz |
| Standard accessories | sealed flanges 1 pcs, O rings 4 pcs, quartz tube 1 pcs, vacuum pump 1 set, pipe plug 4 pcs, oven gloves, crucible tongs each 1 pcs |

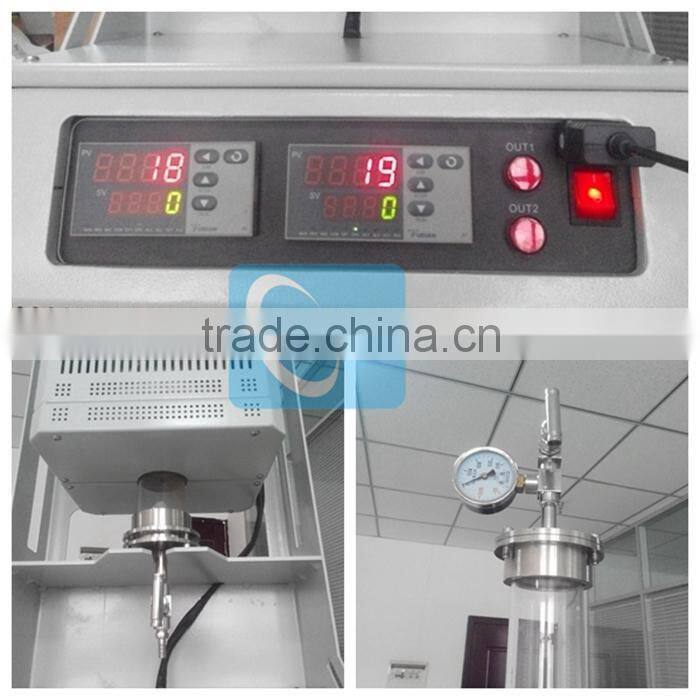

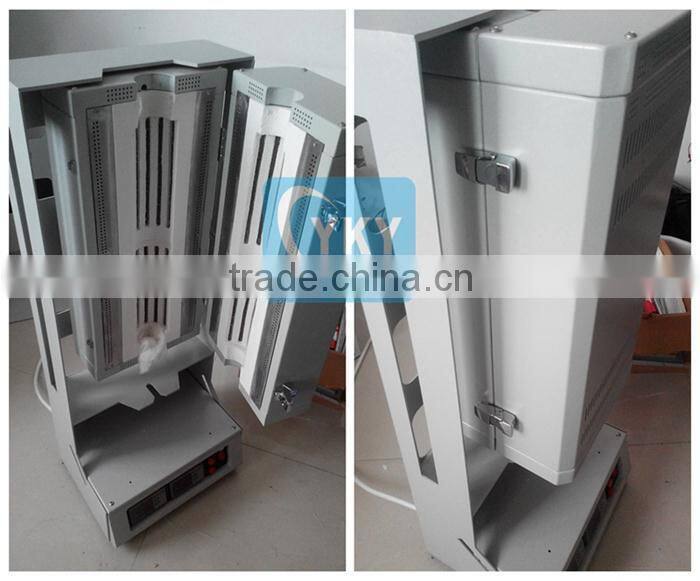

Pictures show of vertical tubular furnace

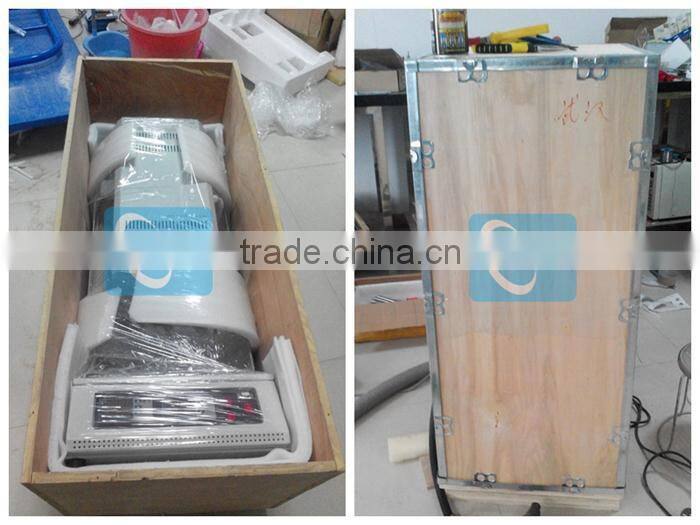

Packaging of vertical tubular furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
sealed flanges 1 pcs, O rings 4 pcs, quartz tube 1 pcs, pipe plug 4 pcs, oven gloves, crucible tongs 1 pcs
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
