1200C Sliding RTP Tube Furnace with quartz tube/graphene growth furnace
Application of graphene growth furnace
1.Regional refinding for semiconductor of germanium and silicon
2.CVD experiment
3.Preparation of carbon nanotubes
4.Growth of graphene
5.Crystalline silicon substrate coating
6.Diffusion welding for metal materials
7.Heat treatment under the vacuum of atmosphere surroundings
graphene growth furnace
Features of graphene growth furnace
1.Fast heating and cooling, maximum rate: 0-10°c/min
2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc
3.LED display or LCD touch screen
4.Can be put on a slide and manual sliding or electric sliding to do fast heating or cooling
5.Can connect with vacuum pump and Mass flow controller as a CVD system
Technical parameters of graphene growth furnace
Model | CY-O1200-80IC |
Display | LED |
Chamber material | imported fiber |
Heating element | imported alloy heating wire |
Max.temperature | 1200℃ |
Working temperature | ≤1100℃ |
Heating rate | 500℃/min |
Heating zone | Single |
Temperature zone length | 440mm |
Thermostatic zone length | 200mm |
Tube Material | high purity quartz |
Tube Size | 80mm |
Tube length | 1400mm |
Flange connection | water cooling stainless steel flange |
Control mode | PID automatic control via SCR power control |
Temperature accuracy | ±1℃ |
Working voltage | AC 220V 50-60Hz |
Main power | 2.5kw |
Slide material | 304 stainless steel+high strength aluminum alloy |
Thermal couple | K type |
Gross weight | 80kg |
Optional equipment | flowmeter, high vacuum system, LCD control system |

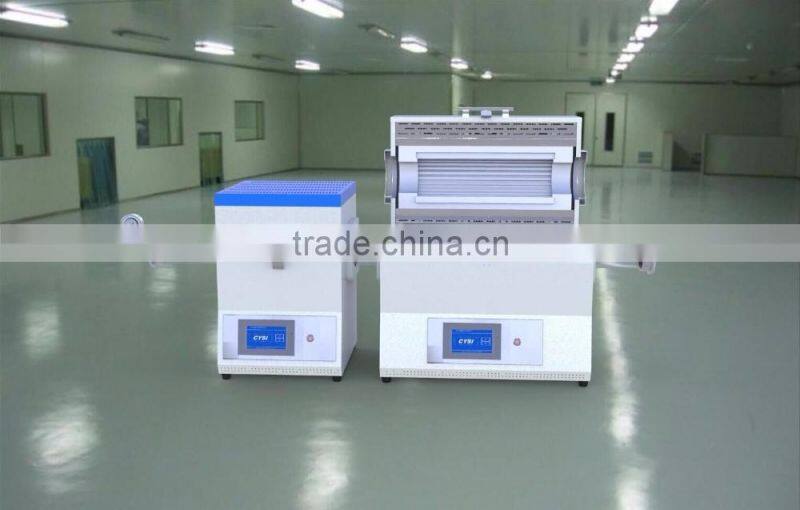

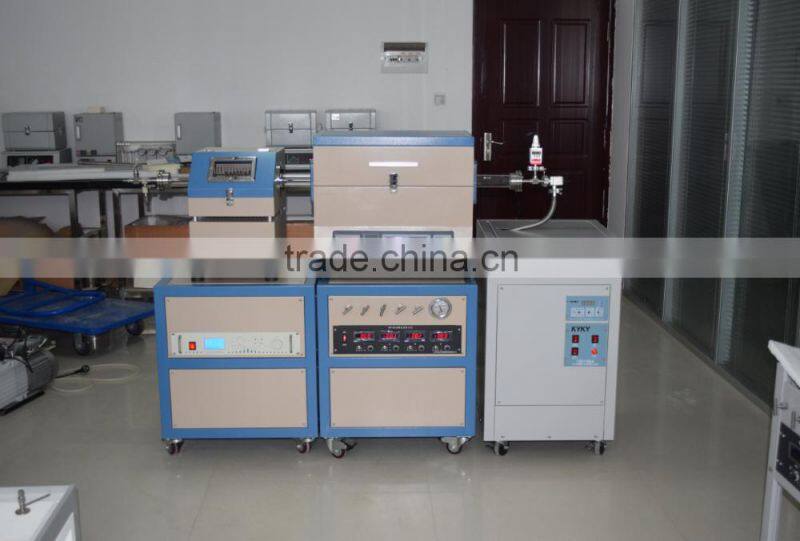

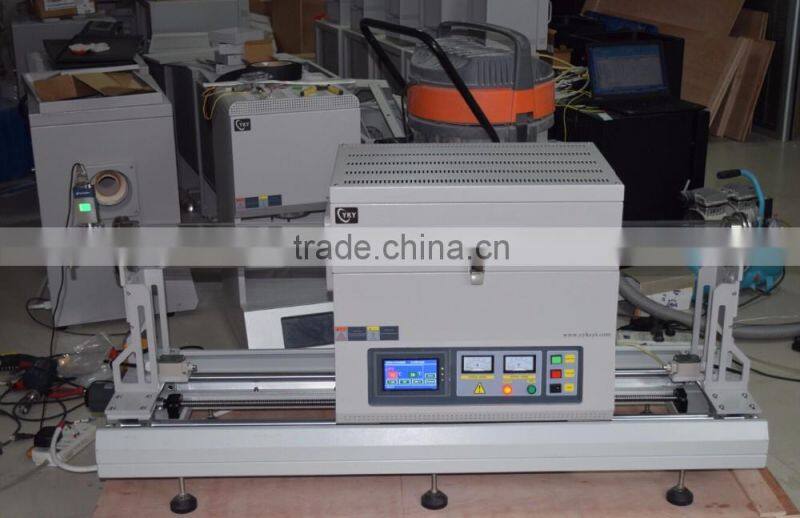

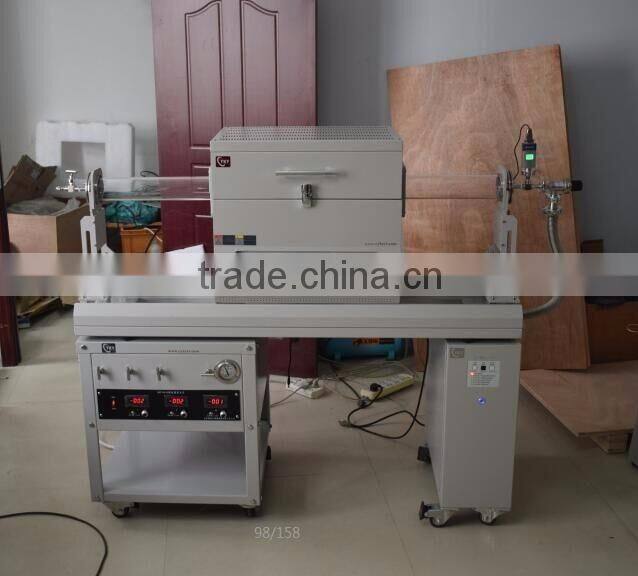

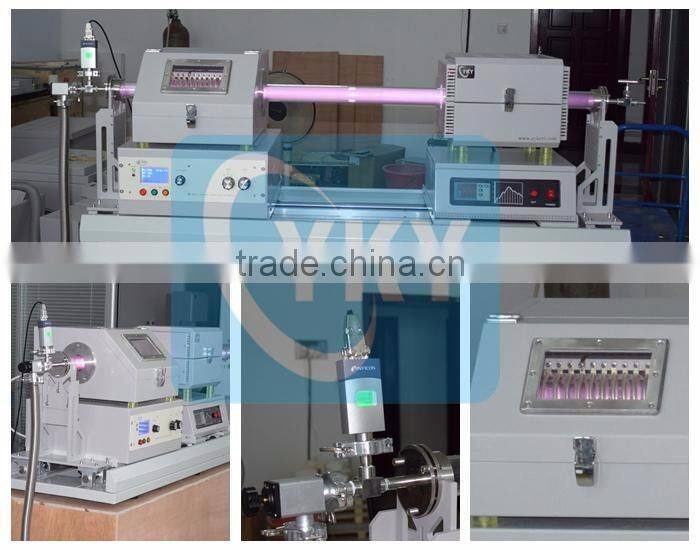

More photos of graphene growth furnace
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing
and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.Our main
products include: tube furnace, muffle furnace, plasma cleaner, vacuum furnace, atmosphere furnace,CVD system and
customized lab equipment.Welcome you come to visit us.
