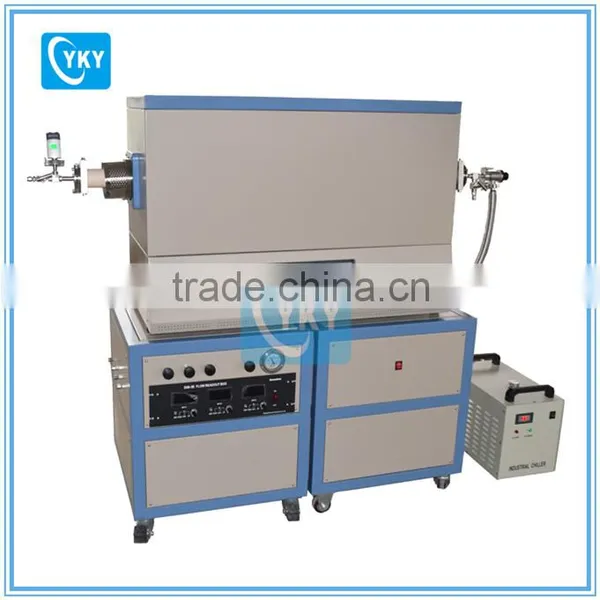

High temperature thermal CVD equipment for diamond
Application of thermal CVD equipment
1.material preparation
2.precious metals preparation
mbrane and coating
Featrues of thermal CVD equipment
1.Upper and lower sub-structure, easy to pick and place tubes
2.High purity quartz tube, resistance high temperature 1650 ℃
3.Programmable and PID automatic control
4.Imported energy saving chamber material
5.Double liner structure chamber, the middle has gap isolation, even if the furnace temperature up to 1000 degree, furnace surface remains safe to touch
6. Furnace is equipped with an output voltage and output current detection table, can see the real time heated condition
Technical parmaters of thermal CVD equipment
| Model | CY-T1700-80IC-3ZV10 |
| Limiting temperature | 1700℃ |
| Working temperature | ≤1650℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature zone | Single |
| Temperature accuracy | ±1℃ |
| Chamber size | Φ80×1300(mm) |
| Heating element | Imported alloy heating wire |
| Thermal couple | BType |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 30 steps programmable |
| Chamber material | Imported fiber |
| Heating zone | 190+250+190mm |
| Working temperature | 1300°c, 1600°c, 1300°c |
| Tube material | alundum tube |
| Tube length | 1300mm |
| Sealing type | stainless steel vacuum flange |
| Tightness | 4.03*10-3Pa |
| Current and voltage Monitoring | Analog galvanometer |
| Main power | 2.5kw |
| gas way | 3 gas can be connected |
| A way range | 100SCCM |
| B way range | 300SCCM |
| C way range | 500SCCM |
| Gasline pressure | -0.1-0.15Mpa |
| System vacuum | 5-10Pa |
| Pump connection | KF16 stainless steel Bellows, KF16 clamps, KF16 flapper valve |
| Vacuum meter | INFCON |
| Working voltage | 220V 50-60Hz |
| Standard accessories | Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, 5mm hex wrench |

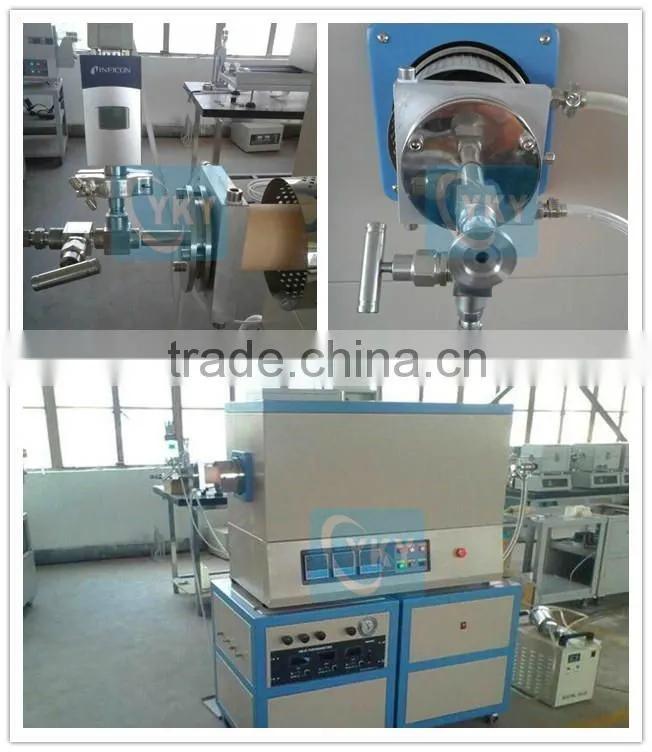

Pictures show of thermal CVD equipment
Packaging of thermal CVD equipment
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, 5mm hex wrench
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Processing room
Show room
