CE Certified 1200 degree High Vacuum two way gas flowmeter,Thermal CVD Furnace for Sale
Featrues of thermal CVD furnace
1.Upper and lower sub-structure, easy to pick and place tubes
2.High purity quartz tube, resistance high temperature 1200 ℃
3.Programmable and PID automatic control
4.Metal key or touch panel operating interface for your option
5.Imported energy saving chamber material
6.Double liner structure, the middle has gap isolation, even if the furnace temperature up to 1000°c, furnace surface remains safe to touch
7.Furnace is equipped with an output voltage and output current detection table, can see the real time heated condition
Technical parmaters of thermal CVD furnace
| Model | CY-O1200-60IC150-D3FL |
| Limiting temperature | 1200℃ |
| Working temperature | ≤1150℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature zone | Single |
| Temperature accuracy | ±1℃ |
| Chamber size | Φ60×1200(mm) |
| Heating element | Imported alloy heating wire |
| Thermal couple | K Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 50 steps programmable |
| Chamber material | Imported fiber |
| Heating zone | 440mm |
| Thermostatic zone | 200mm |
| Tube material | high purity quartz |
| Tube length | 1000mm |
| Sealing type | stainless steel vacuum flange |
| Tightness | 4.03*10-3Pa |
| Current and voltage Monitoring | Analog galvanometer |
| Main power | 2.5kw |
| gas way | 2 gas can be connected |
| A way range | 10-100ml/min |
| B way range | 16-160ml/min |
| Display | LCD touch screen |
| Gasline pressure | -0.1-0.15Mpa |
| System vacuum | 5-10Pa |
| Pump connection | KF16 stainless steel Bellows, KF16 clamps, KF16 flapper valve |
| Vacuum meter | mechanical vacuum gauges, or electronic vacuum gauges |
| Working voltage | 220V 50-60Hz |
| Standard accessories | Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, 5mm hex wrench |

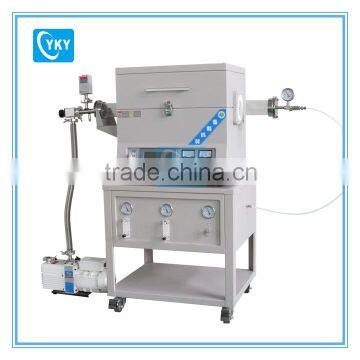

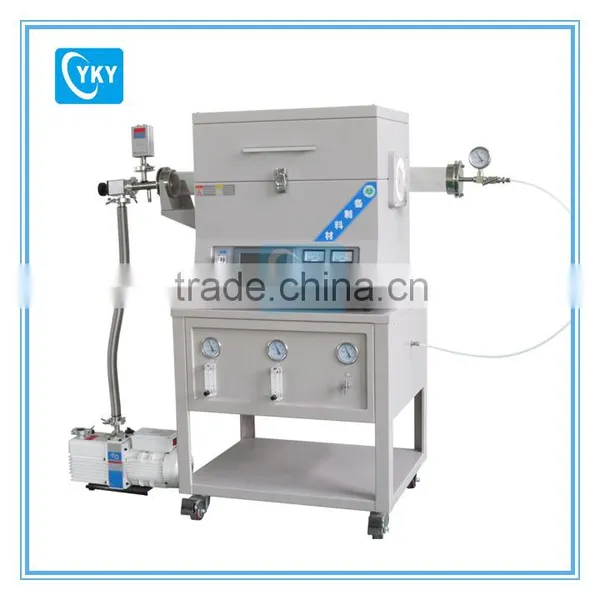

Pictures show of thermal CVD furnace
Packaging of thermal CVD furnace
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, 5mm hex wrench
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
