Ce certified lab 1200 C tubular furnace with controlled gas atmosphere
Featrues of tubular furnace with controlled gas atmosphere
1. upper and lower sub-structure, easy to pick and place tubes
2. high purity quartz tube, resistance high temperature 1200 ℃
3. Programmable and PID automatic control
4. Metal key or touch panel operating interface for your option
5.Imported energy saving chamber material
6. Furnace using double liner structure, the middle has gap isolation, even if the furnace temperature up to 1000 Chang, furnace surface remains safe to touch
7. Furnace is equipped with an output voltage and output current detection table, can see the real time heated condition
Technical parmaters of tubular furnace with controlled gas atmosphere
| Model | CY-O1200-60IC150-D2FH |
| Limiting temperature | 1200℃ |
| Working temperature | ≤1150℃ |
| Heating rate | Suggestion 0~20℃/min |
| Temperature zone | Single |
| Temperature accuracy | ±1℃ |
| Chamber size | Φ60×1200(mm) |
| Heating element | Imported alloy heating wire |
| Thermal couple | K Type |
| Temperature control | PID automatic control via SCR power control |
| Heating curves | 50 steps programmable |
| Chamber material | Imported fiber |
| Heating zone | 440mm |
| Thermostatic zone | 200mm |
| Tube material | high purity quartz |
| Tube length | 1000mm |
| Sealing type | stainless steel vacuum flange |
| Tightness | 4.03*10-3Pa |
| Current and voltage Monitoring | Analog galvanometer |
| Main power | 2.5kw |
| gas way | 2 gas can be connected |
| A way range | 10-100ml/min |
| B way range | 16-160ml/min |
| Or as customized | |
| Gasline pressure | -0.1-0.15Mpa |
| System vacuum | 5-10Pa |
| Pump connection | KF16 stainless steel Bellows, KF16 clamps, KF16 flapper valve |
| Vacuum meter | mechanical vacuum gauges, or electronic vacuum gauges |
| Working voltage | 220V 50-60Hz |
| Standard accessories | Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, 5mm hex wrench |

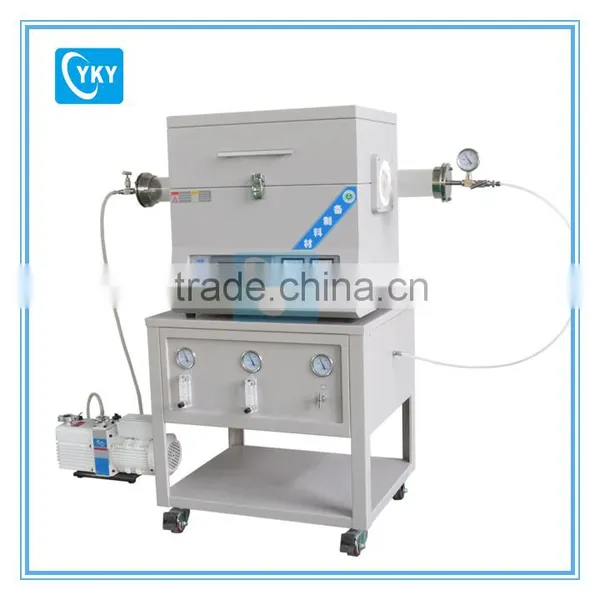

Pictures show of tubular furnace with controlled gas atmosphere
Packaging of tubular furnace with controlled gas atmosphere
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 15 month, except wearing parts.
Wearing parts as below:
Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube, stainless steel fittings, stainless steel bellows, adapter, hex wrench
Factory show
Zhengzhou CY Scientific Instrument Co., Ltd is mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet.
Contact information
Skype ID: jennyhao8819
Whatsapp/wechat/viber:008615639272359
Tel:0086-0371-55199322
Fax:0086-0371-86036875
Website:
We are always at our service in 24 hours
Q 1.: Are you a trading company or a manufacturer?
A: We are the manufacturer, our factory is located in Zhengzhou city, Henan Provice, China. We welcome any of our potential customer and friends come to visit us.
We also have our own trade department to service our Foreign friends.
Q 2.: Can do customized?
A: Yes, we have own R&D department. Our engineer have worked in this field around ten years. We can design the equipment according the customer request.
Q 3.: What methods of the payment do you accept?
A: We accept: T/T, L/C, WEST UNION, PAYPAL, and Escrow
Q 4: How long will it take to get the delivery day?
A: It depends, general model, 1-5 sets, we can delivery within 10 days. Otherwise, we should check the details depend on the quantity and design.
Q 5: Do you have any overseas after-sales service office?
A: So far, we don't have overseas after sales service center. But, we promise all of our sincerley client that we will support the the after sale service for whole life of our equipment. Also, we will supply the accessories to our client by a value price. We also welcome the one whom want to be our after sale service supplier in their market, we can give them a trainning and accessories supplying.
Thank you for supporting our equipments and we welcome all of the people whom interested in our team come to visit us.
Consulting hotline: 0086-0371-55199322 (86)15639272359
