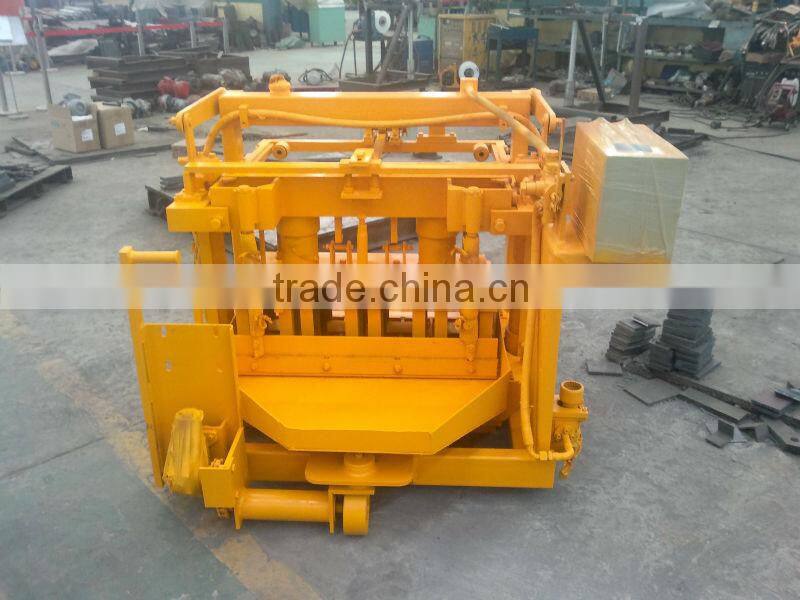

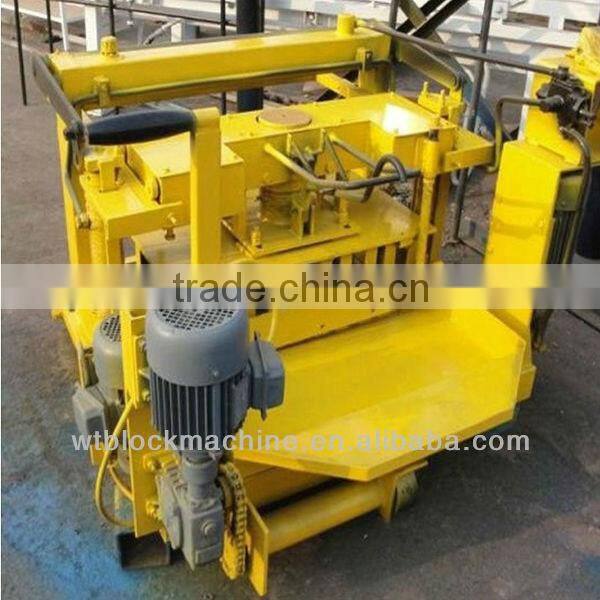

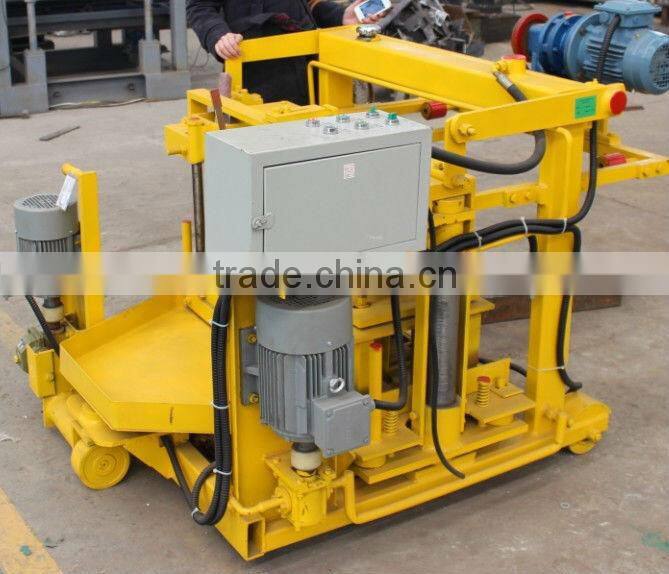

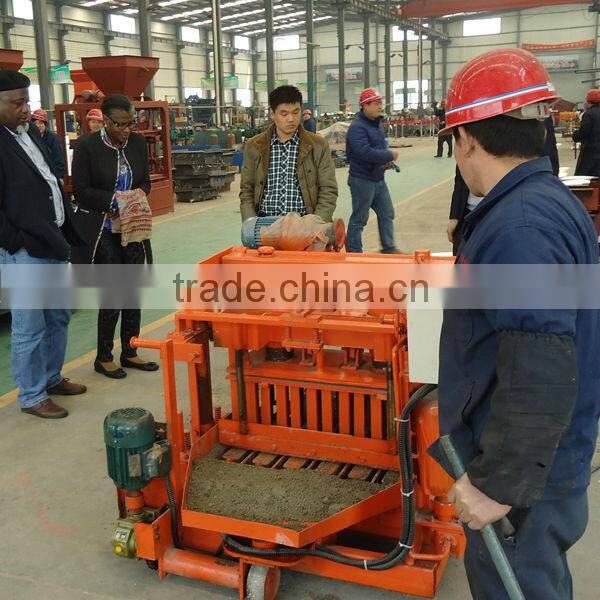

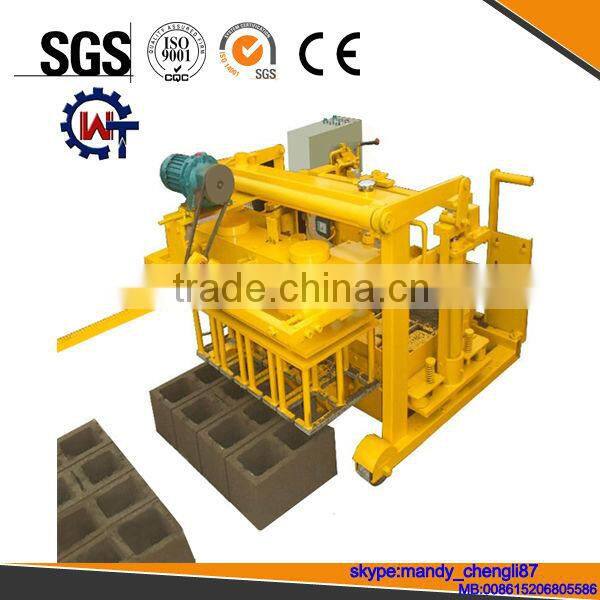

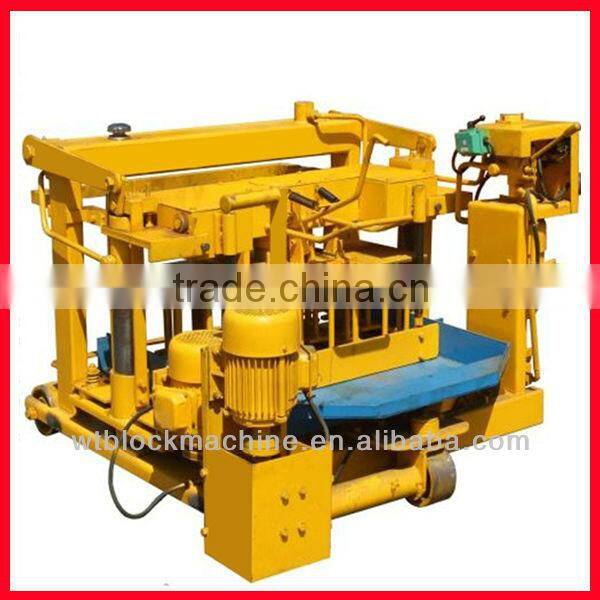

1>QT40-3 concrete block machine diesel Advantage
1. concrete block machine diesel QT40-3 is a small investment
2. QT40-3 concrete block machine diesel is a compact machine with electric and hydraulic system,
each procedure action locks with each other to guarantee the machine operate safely,easily and dependably
3. QT40-3 concrete block machine diesel oil cylinder,
the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so the concrete can be fluidified
and exhausted in two or three seconds to ensure the high-Density,especially suitable to produce the standard bricks.
No. | Model | Quality | Weight KGS | KW |
1 | QT40-3 concrete block machine diesel | 1 | 800 | 5.2 |
2 | Accessory | |||
Hollow block Mould | 1 | 70 | ||
Barrow | 2 | |||
Nylon caps | 16 | |||
Tension springs | 8 | |||
Tools | 1 | |||
Fittings | 1 | |||
3 | Total in all | 870 | 5.2 | |
2>QT40-3 concrete block machine diesel specification and technical parameters
Main specification and technical parameters | |
Overall size | 1800(L)×1400(W)×1100(H)mm |
Shaping cycle | 25-30seconds |
Pallet size | No need pallet |
Vibration Force | 35.5KN |
Vibration style | molding vibration |
Electricity | 380V |
Total weight | 800 KGS |

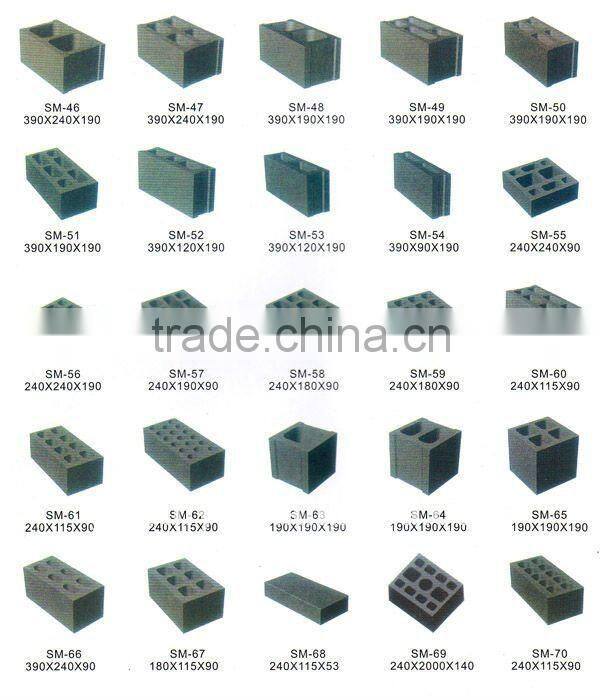

3>QT40-3 concrete block machine diesel capacity table
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day |
1 | 400x200x200mm | 4 | 480 | 3840 |
2 | 400x150x200mm | 5 | 600 | 4800 |
3 | 400x250x200mm | 3 | 360 | 2880 |
Contact person :Mandy Skype:mandy_chengli87 MB:008615206805586
