1.Introducing of QMR4-45 hollow block making machine philippines
This hollow block making machine philippines is manufactured on the base of technical modifications to the original block shaping machines,
that is, changing the former one-time-vibration into twice-vibrations of molding core,
so, the block density becomes higher, shaping speed quicker and block strength more even, this model of machine can suitable to the customers who have any kinds of ceasing concrete working sites, and the consumption carriage can be
reduced.
2.The specification of QMR4-45 hollow block making machine philippines
(1) Main technical parameters
Dimension of host machine | 1350×1300×1650mm | Host machine power | 6.65KW |
Voltage | 380V | Vibration force | 30KN |
Moulding period | 45S | Capacity | 14.15KW |
The size of the pallet | 850×450×40mm | Mixer model | JD350 |
Weight of the machine | About 1 T | ||
Produce all kinds of solid bricks | |||
Theoretical workshop area : 50 m2 , need about 2workers .the office , curing area and stacking area to arrange according your fact status.
(2) production capacity of QMR4-45 hollow block making machine philippines
QT40-3B Production capacity | ||
Size(LxWxH) | Pcs/Mould | Pcs/ 8 Hr |
400X150X200 | 5 | 3200 |
400X200X200 | 4 | 2500 |

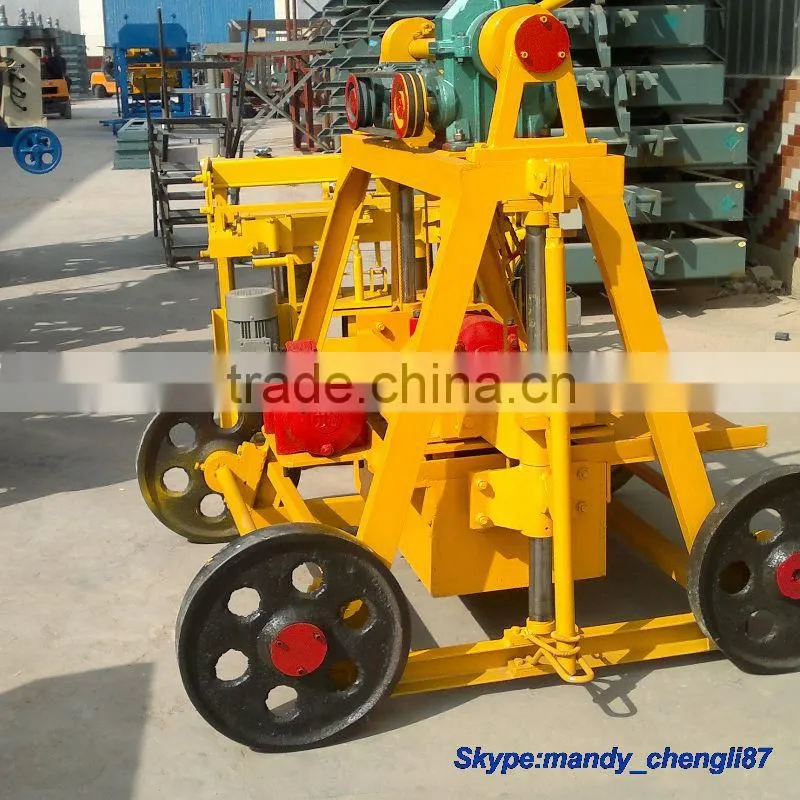

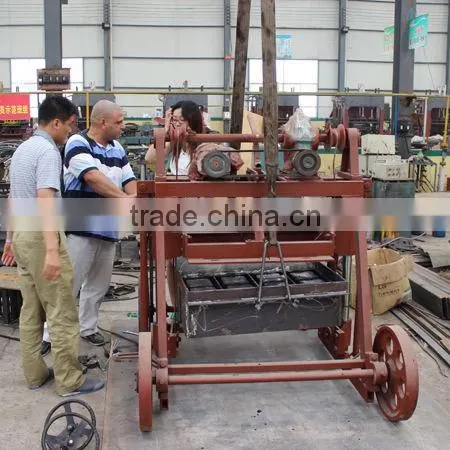

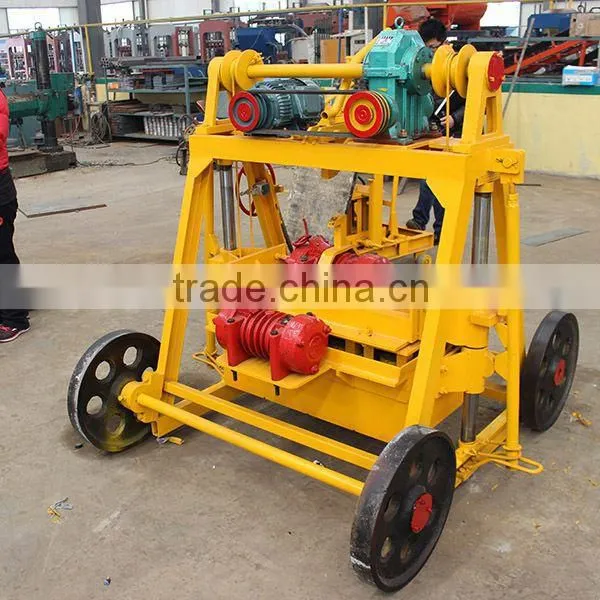

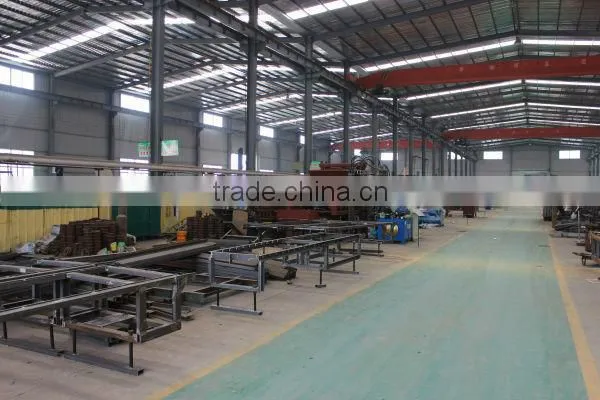

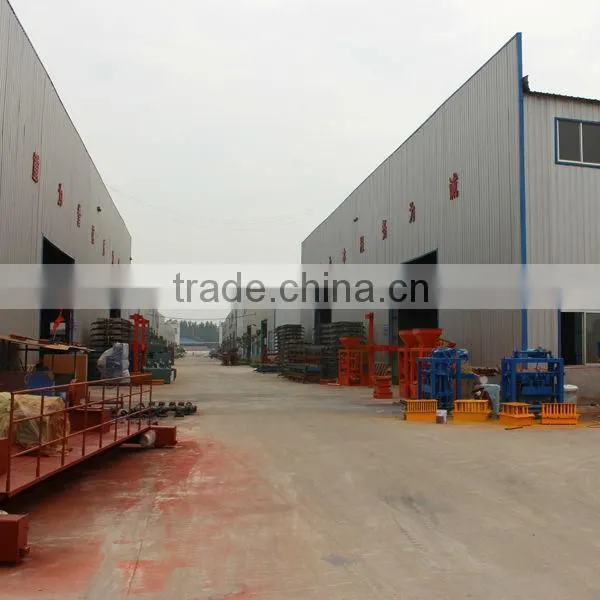

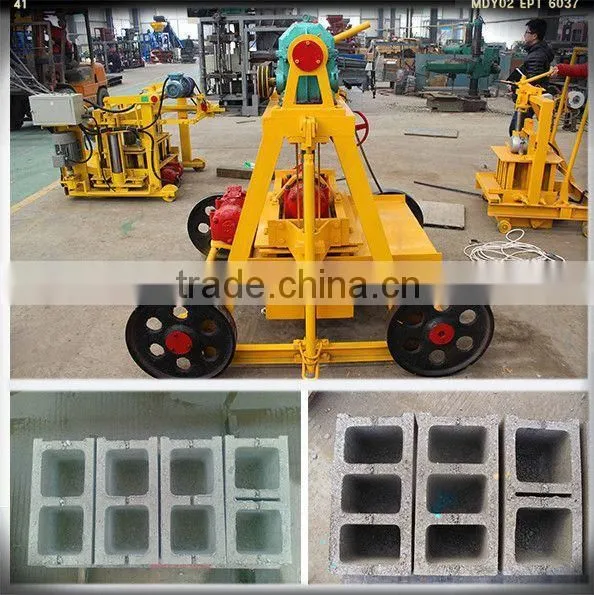

3)QMR4-45 hollow block making machine philippines factory photo and real machine photo

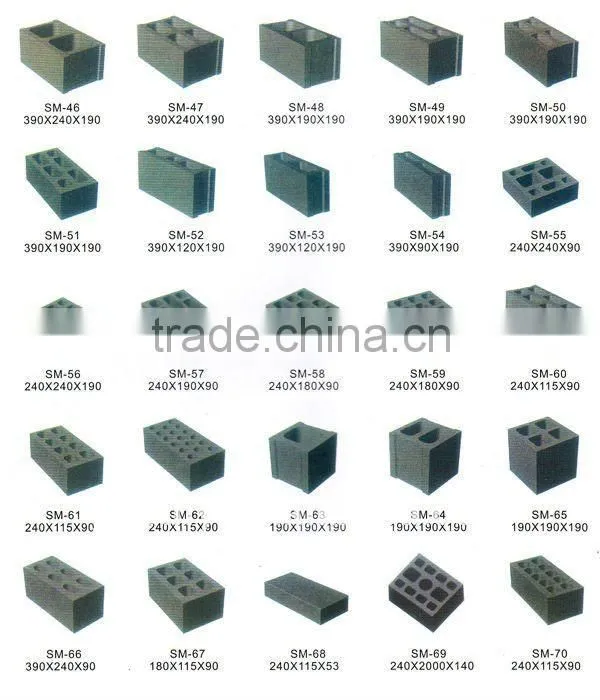

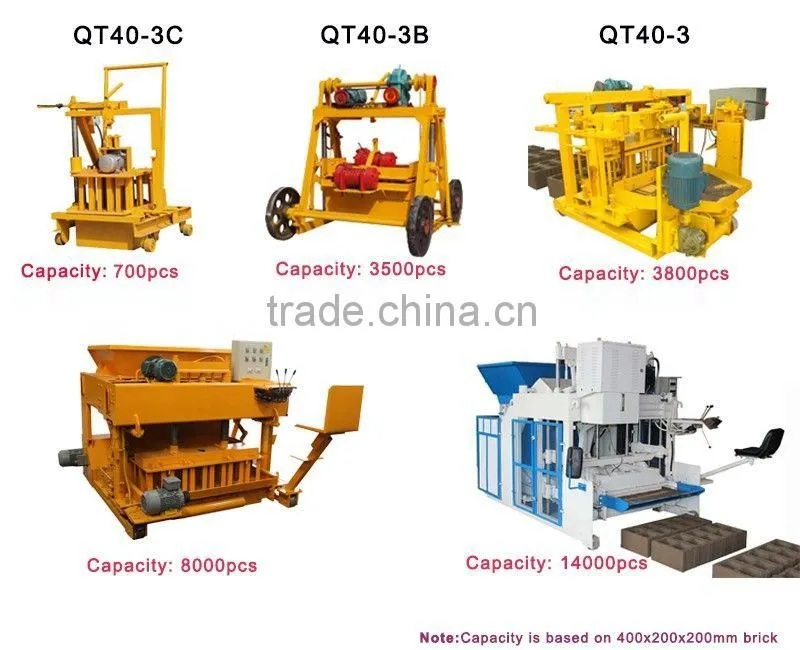

4)QMR 4-45 hollow block making machine philippines other model
If you have interest to our block machine ,Please contact me freely
I will do my best to help you
Contact person :Mandy
Mobile phone:008615206805586
Skype:mandy_chengli87
...
