2015 QT Small Scale Concrete Block Making Machine/brick Molding Press Machine

2015 QT Small Scale Concrete Block Making Machine/brick Molding Press Machine photo-1
2015 QT Small Scale Concrete Block Making Machine/brick Molding Press Machine photo-2
2015 QT Small Scale Concrete Block Making Machine/brick Molding Press Machine photo-3
2015 QT Small Scale Concrete Block Making Machine/brick Molding Press Machine photo-4
2015 QT Small Scale Concrete Block Making Machine/brick Molding Press Machine photo-5
US$ 4,680 - 5,210 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Cement
Processing Brick Production Line
Method Other, Mechanical
Automatic Other, Semi-automatic
Capacity 4800-6720pcs/day
Place of Origin Shandong, China
Brand Name Wante
Model Number QT4-24
Voltage 220/240/380V
Power 13.5KW
Dimension(L*W*H) 2050x1740x2550mm
Certification ISO9001&CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas





  2015  QT small scale concrete block making machine/brick molding press machine

QT4-24 is made from pared with QT4-26, its material transferring automatic and feeding fast. What’s more,

it’s automatic design help to reducing the labor intensity and increasing the capacity to a lager extent.

Advantages:

1>All moulds get heat treatment and carbonization

2>15 moths gurantee

3>CE ISO9001 Certifications

4>One whole line , raise the productilicty and save labor

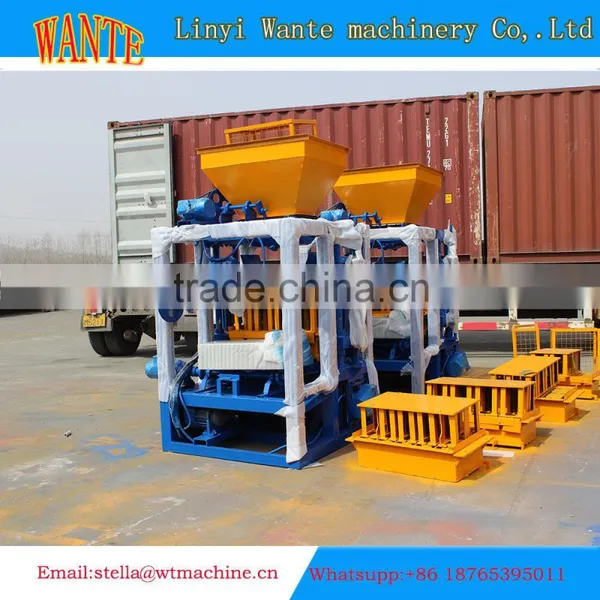

                                                                      Picture showing

2015 QT small scale concrete block making machine/brick molding press machine

 2015 QT small scale concrete block making machine/brick molding press machine

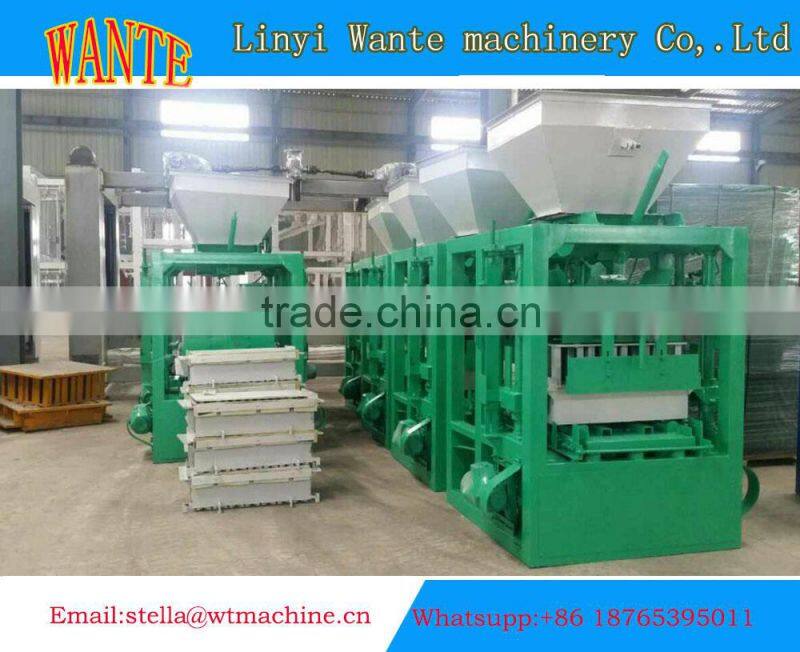

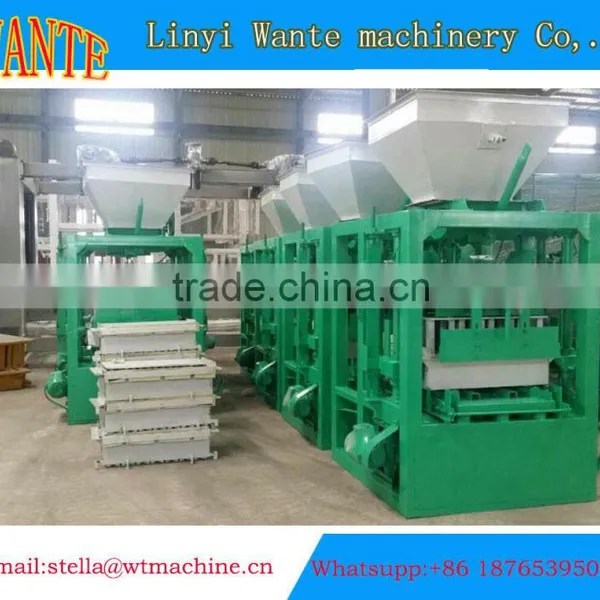

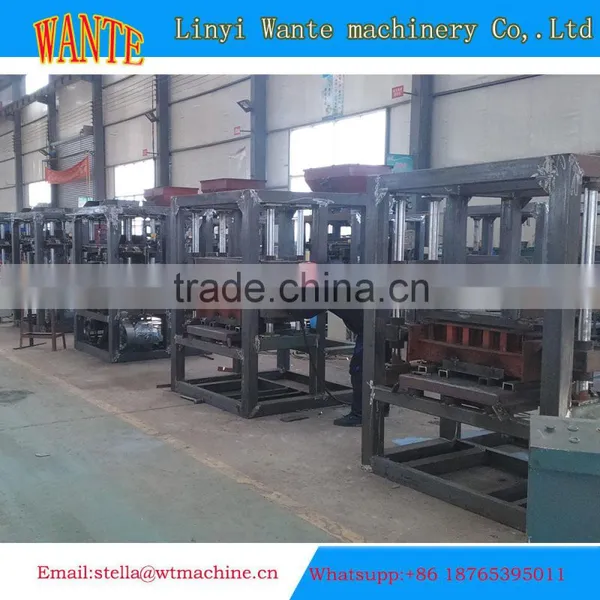

                                                                        Machines on stock

2015 QT small scale concrete block making machine/brick molding press machine

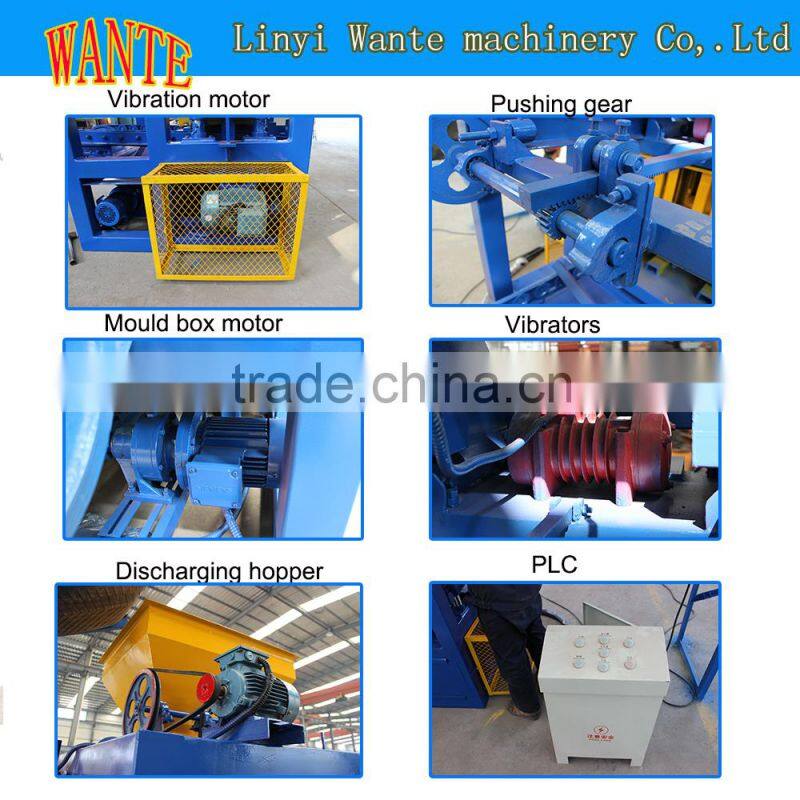

                                                                                        Details

2015 QT small scale concrete block making machine/brick molding press machine



                                                                         The parameters

Main specification and technical parameters

Overall size

2060(L)×1730(W)×2580(H)mm

Shaping cycle

24-30 seconds

Pallet size

850×550×25mm (bamboo)

850×550×20mm (Plastic)

Vibration frequency

Max.4000 R/Min

Upper vibrator

2.2KW

Nether vibrator

6kw

Electricity

380V/220V/ (adjustable)

Total weight

3000 KGS

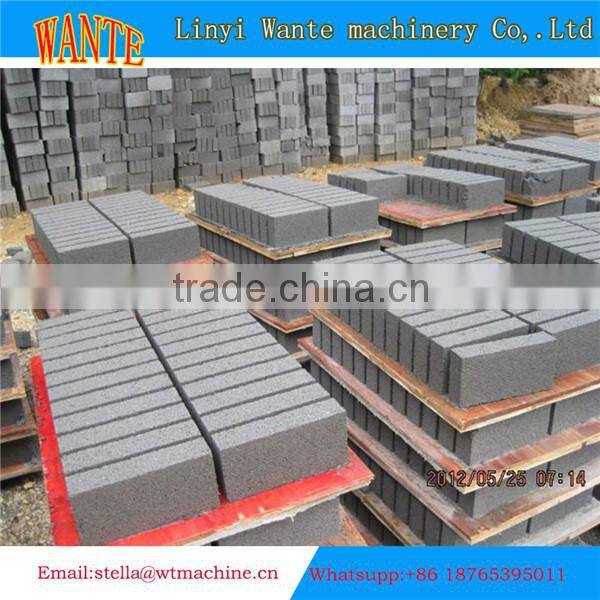

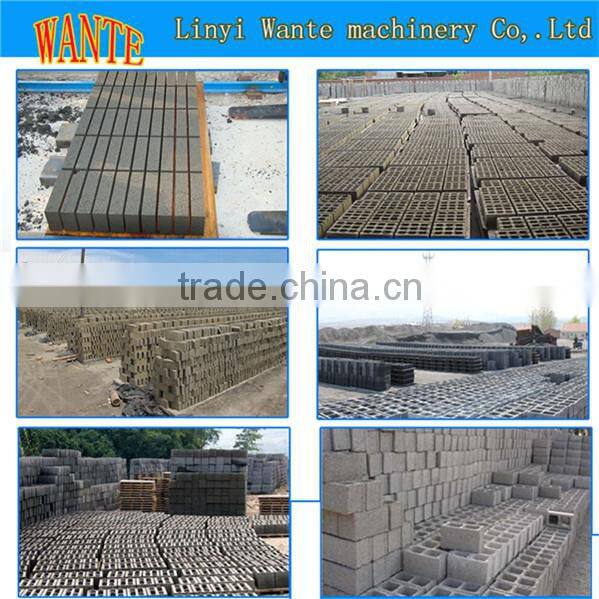

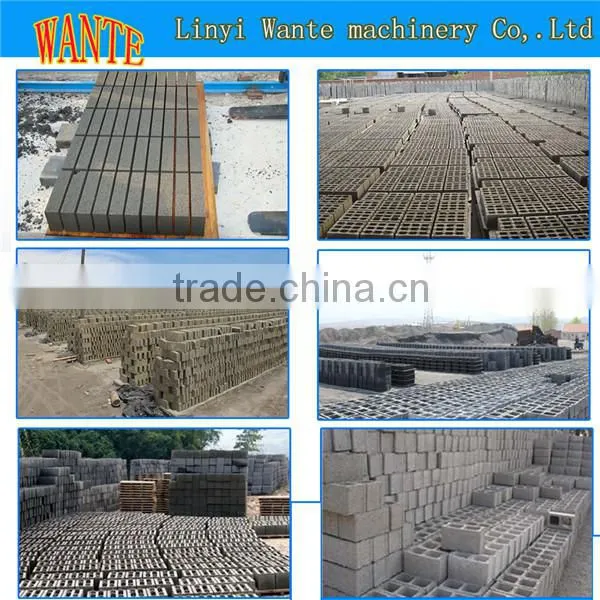

                                                                               The bricks



 2015 QT small scale concrete block making machine/brick molding press machine

2015 QT small scale concrete block making machine/brick molding press machine

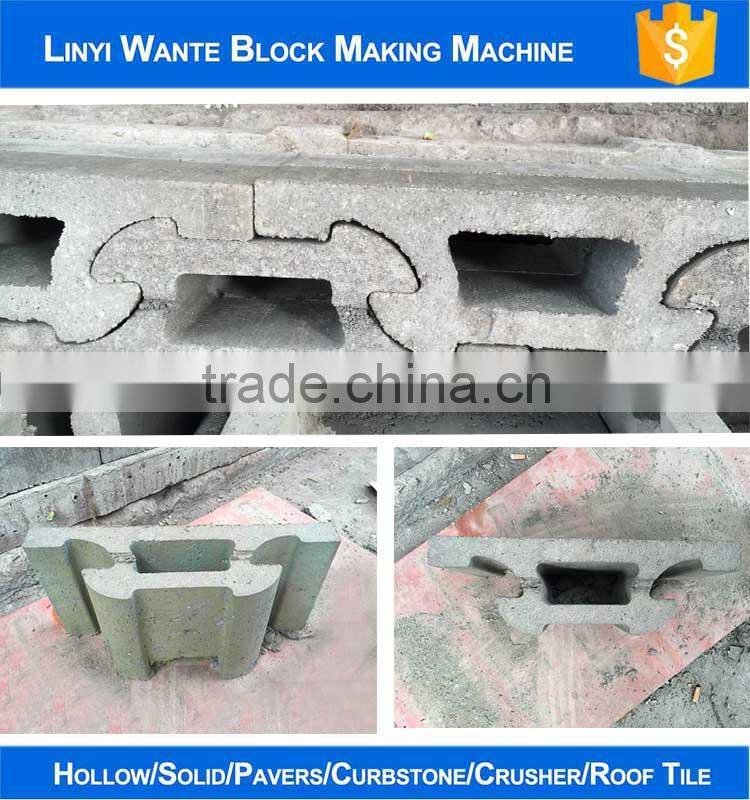

Some special moulds

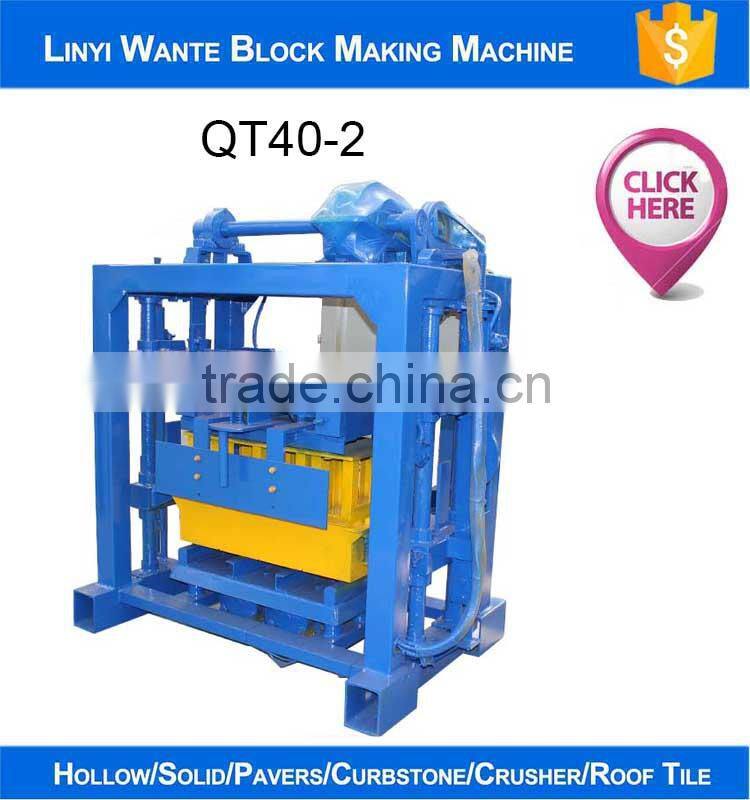

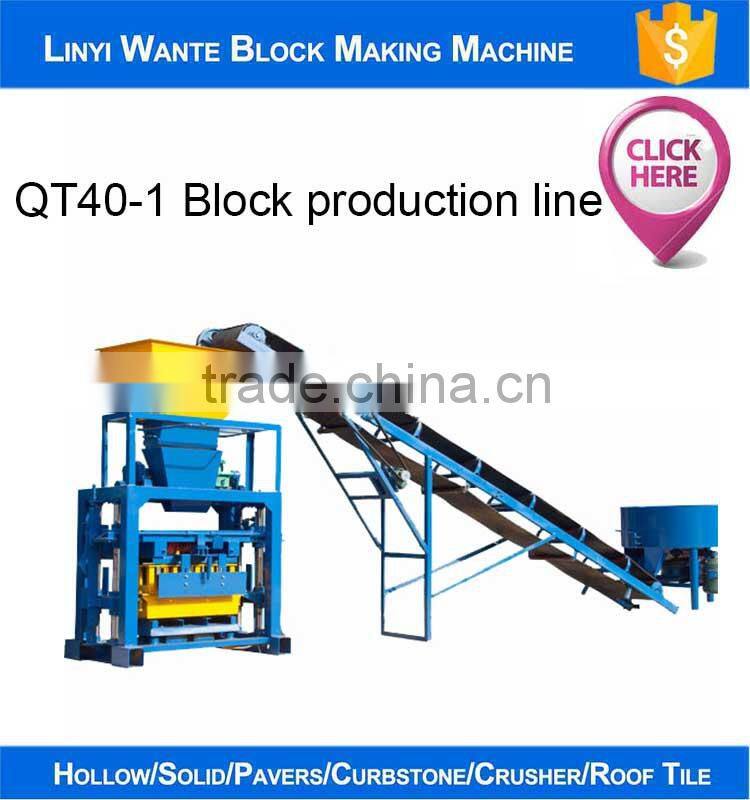

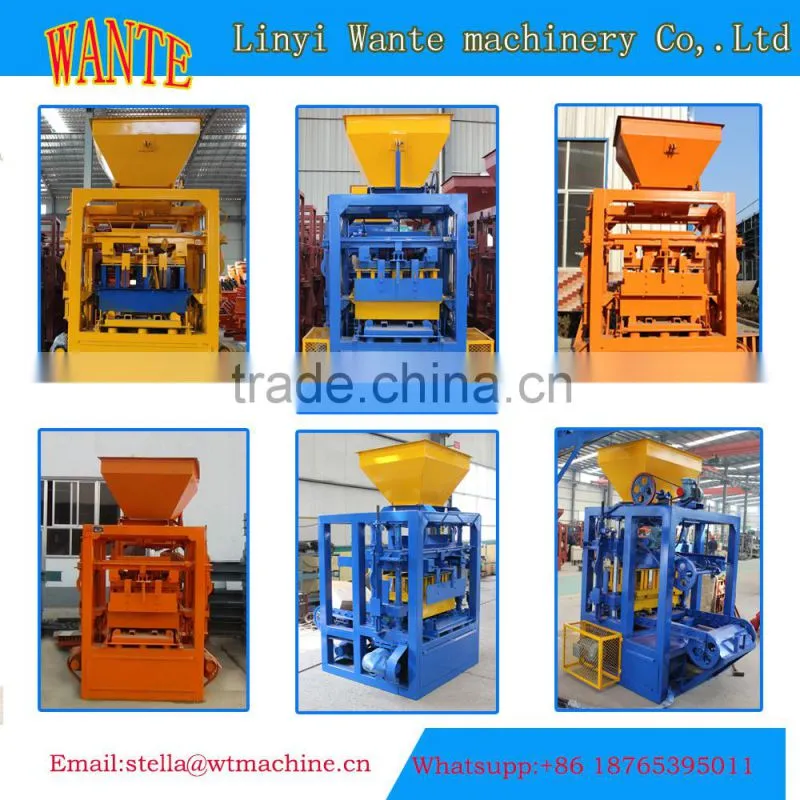

                                                                           Similar products

2015 QT small scale concrete block making machine/brick molding press machine2015 QT small scale concrete block making machine/brick molding press machine

                                                                                Capacity



                                                      QT40-1



No.

Block size

Pcs/mould

Pcs/hour

Pcs/day

1

400x200x200mm

4

360

2880

2

400x150x200mm

5

450

3600

3

400x100x200mm

6

540

4320

4

200x100x150mm

24

2800

22400



                                                                 QT40-2



No.

Block size

Pieces/mold

Pieces/hour

Pieces/day

1

400x200x200mm

4

360

2880

2

400x150x200mm

5

450

3600

3

400x100x200mm

6

540

4320



                                                                 QT4-24



No.

Block size

Pcs/mould

Pcs/hour

Pcs/day

1

400x200x200mm

4

450-500

2500-3500

2

400x150x200mm

5

500-600

3500-4000

3

240x115x53

24

3600

20000







                                                                              Customers

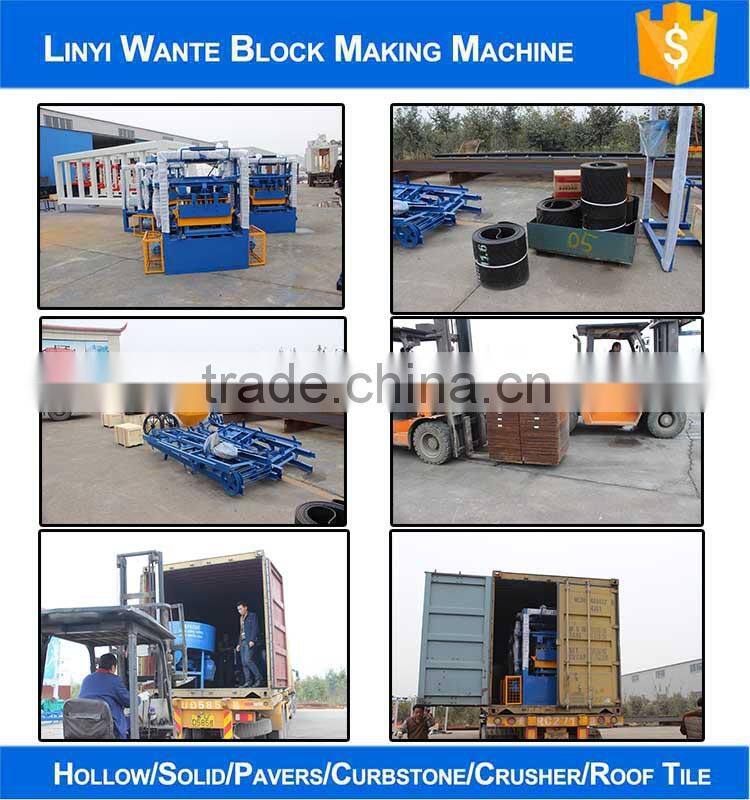

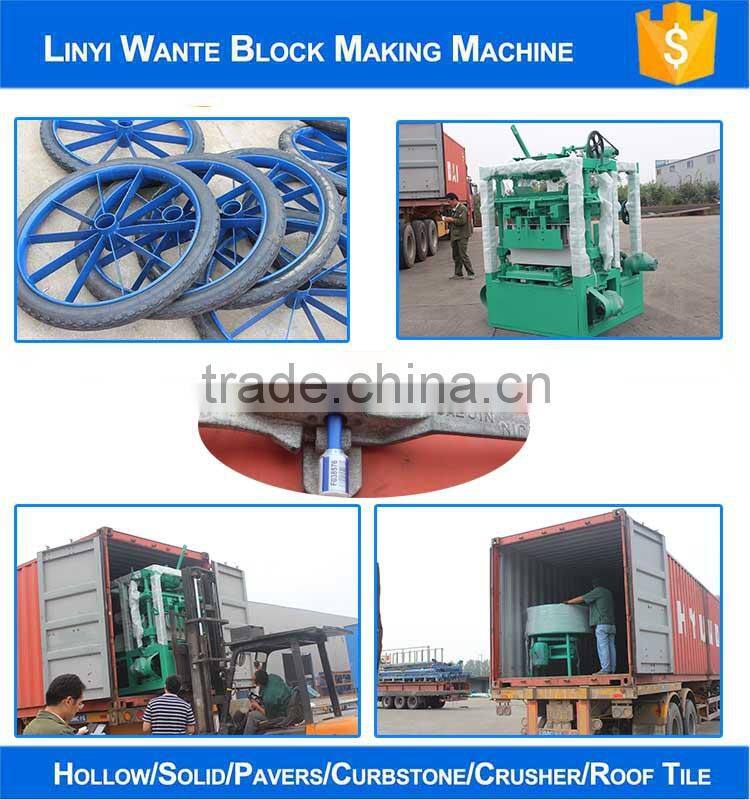

                                                                                       Delivery

 2015 QT small scale concrete block making machine/brick molding press machine2015 QT small scale concrete block making machine/brick molding press machine

                                                                                 Our company

Linyi WANTE machinery Co.,Ltd has more than 18 years' exprience of manufacturing burn-free block machine.We are always the leading company in the field of block macihines industry. for now,

we have achieved essential ceticifications domestic and overseas,such like ISO9001,CE.

2015 QT small scale concrete block making machine/brick molding press machine

                                                                             Ralted product---JD350





Main specification and technical parameters

Overall size

1200(L)×1200(W)×1300(H)mm(assembled)

1200(L)×1200(W)×800(H)mm(seperated)

Shaping cycle

5 mins

Volume

350L (25Kgs Cement)

Electricity

380V/220V/ (adjustable)

Total weight

330KGS







                                                                                Video  link

 Kindly contact me for getting the Video for this machine.
