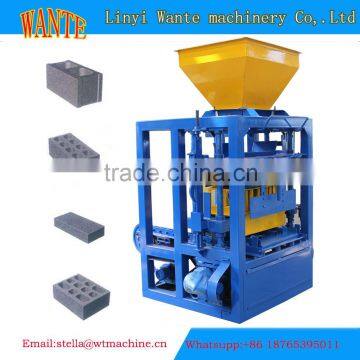

2015 Trade Assurance Export to Congo !! QT4-24 Africa Small Paver Block Machine Low Price

2015 Trade Assurance Export to Congo !! QT4-24 Africa Small Paver Block Machine Low Price photo-1

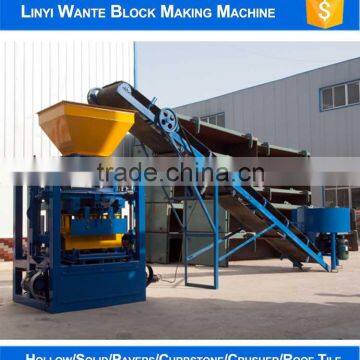

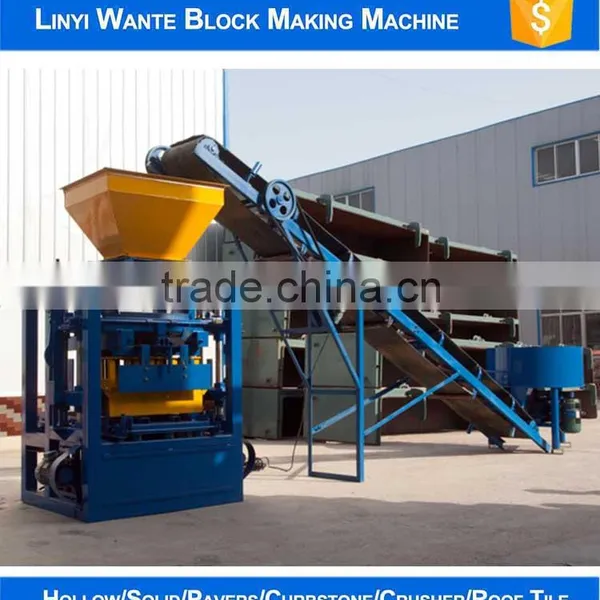

2015 Trade Assurance Export to Congo !! QT4-24 Africa Small Paver Block Machine Low Price photo-2

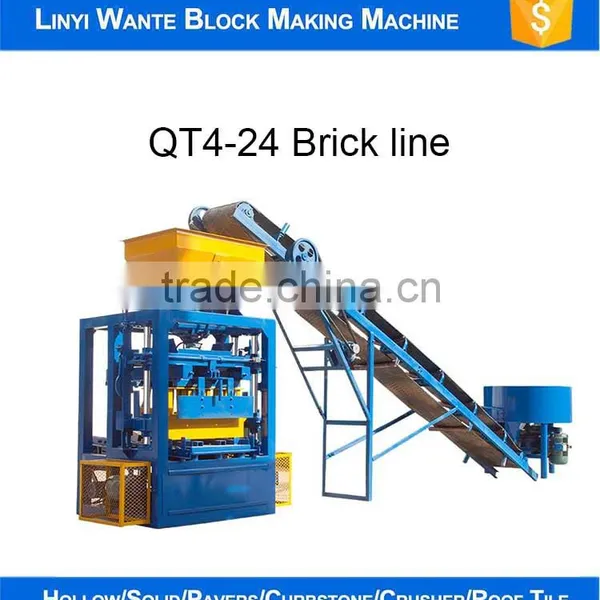

2015 Trade Assurance Export to Congo !! QT4-24 Africa Small Paver Block Machine Low Price photo-3

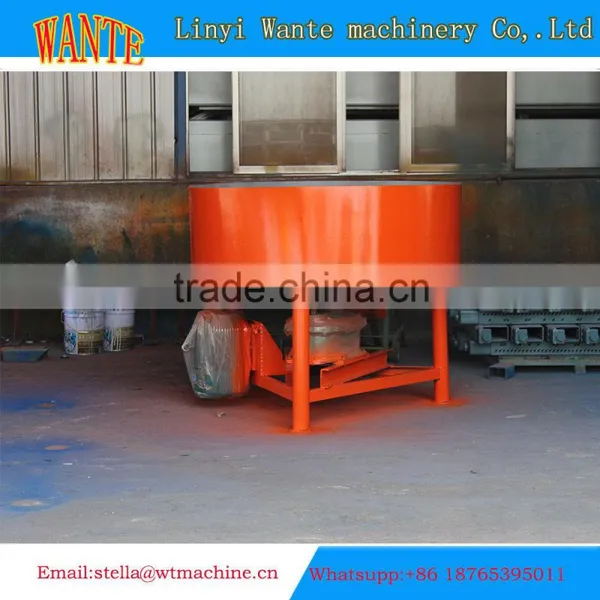

2015 Trade Assurance Export to Congo !! QT4-24 Africa Small Paver Block Machine Low Price photo-4
2015 Trade Assurance Export to Congo !! QT4-24 Africa Small Paver Block Machine Low Price photo-5
2015 Trade Assurance Export to Congo !! QT4-24 Africa Small Paver Block Machine Low Price photo-6
US$ 4,680 - 5,210 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Cement
Processing Brick Production Line
Method Other, Mechanical
Automatic Other, Semi-automatic
Capacity 4800-6720pcs/day
Place of Origin Shandong, China
Brand Name Wante
Model Number QT4-24
Voltage 220/240/380V
Power 13.5KW
Dimension(L*W*H) 2050x1740x2550mm
Certification ISO9001&CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas





 2015 Linyi Wante QT4-24 bric 2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

QT4-24 is made from pared with QT4-26, its material transferring automatic and feeding fast. What’s more,

it’s automatic design help to reducing the labor intensity and increasing the capacity to a lager extent.

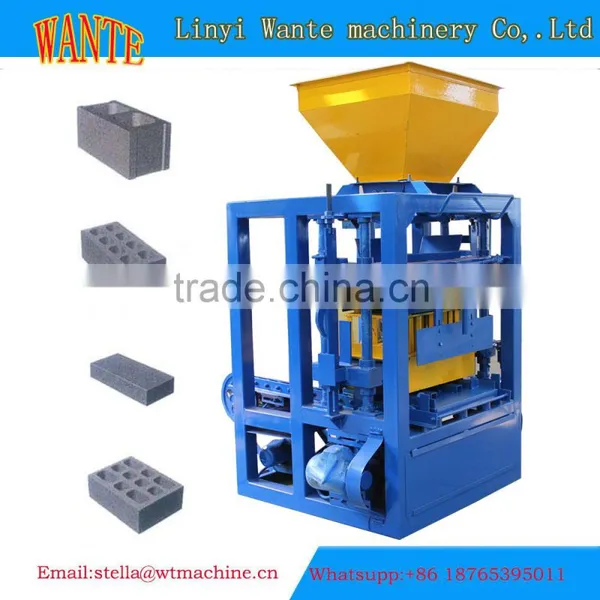

                                                                      Picture showing

2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

 2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

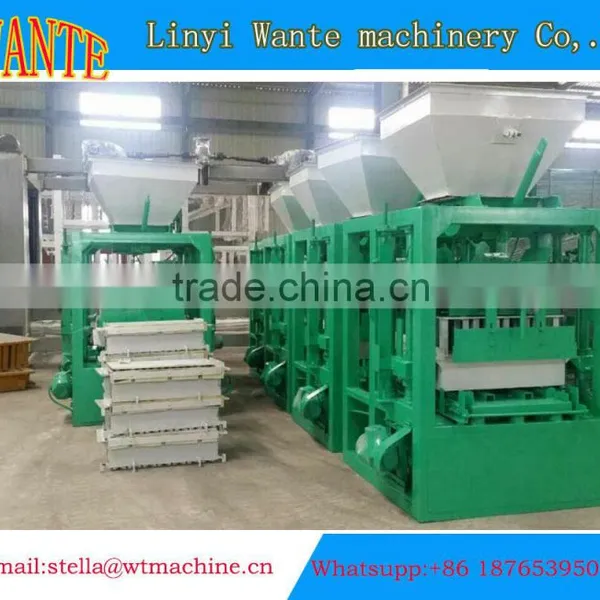

                                                                        Machines on stock

2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

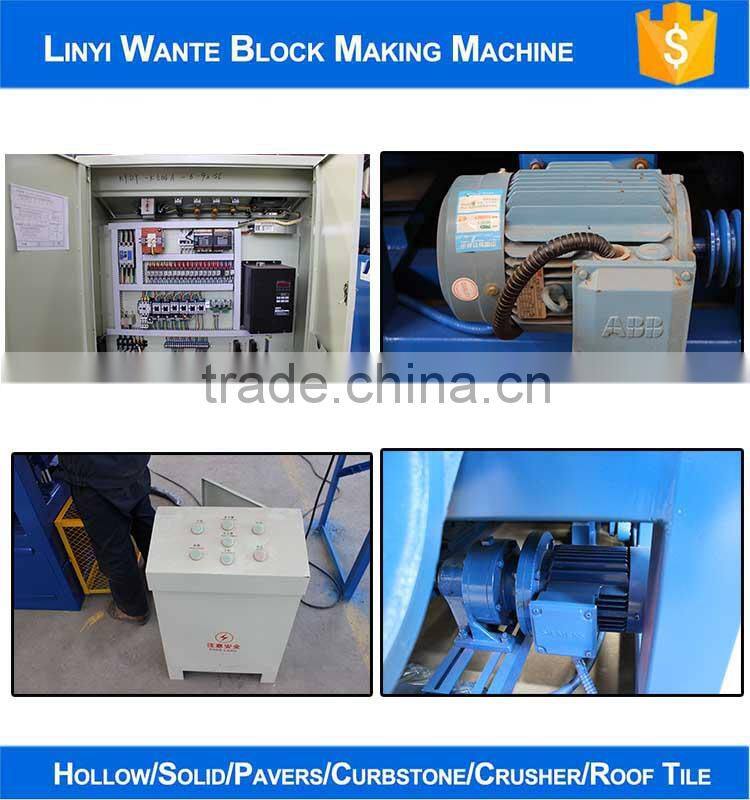

                                                                                        Details

2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price



                                                                         The parameters

Main specification and technical parameters

Overall size

2060(L)×1730(W)×2580(H)mm

Shaping cycle

24-30 seconds

Pallet size

850×550×25mm (bamboo)

850×550×20mm (Plastic)

Vibration frequency

Max.4000 R/Min

Upper vibrator

2.2KW

Nether vibrator

6kw

Electricity

380V/220V/ (adjustable)

Total weight

3000 KGS






Total weight

1800 KGS





                                                                               The bricks



 2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

Some special moulds





                                                                           Similar products

2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

                                                                                Capacity



                                                      QT40-1



No.

Block size

Pcs/mould

Pcs/hour

Pcs/day

1

400x200x200mm

4

360

2880

2

400x150x200mm

5

450

3600

3

400x100x200mm

6

540

4320

4

200x100x150mm

24

2800

22400



                                                                 QT40-2



No.

Block size

Pieces/mold

Pieces/hour

Pieces/day

1

400x200x200mm

4

360

2880

2

400x150x200mm

5

450

3600

3

400x100x200mm

6

540

4320



                                                                 QT4-24



No.

Block size

Pcs/mould

Pcs/hour

Pcs/day

1

400x200x200mm

4

450-500

2500-3500

2

400x150x200mm

5

500-600

3500-4000

3

240x115x53

24

3600

20000







                                                                              Customers



                                                                                       Delivery

 2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price2015 Trade Assurance Export to Congo !! QT4-24 Africa small paver block machine low price

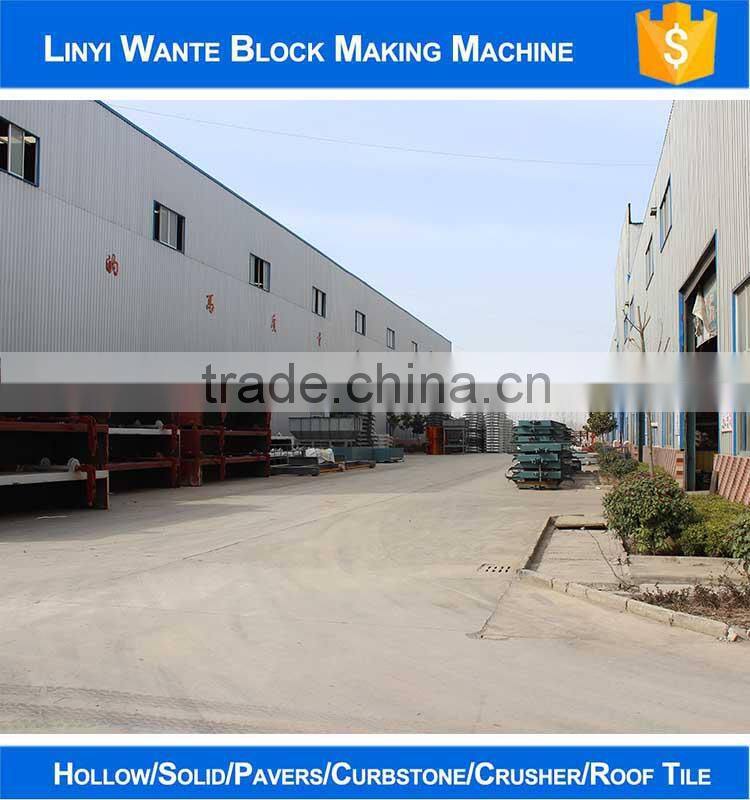

                                                                                 Our company

Linyi WANTE machinery Co.,Ltd has more than 18 years' exprience of manufacturing burn-free block machine.We are always the leading company in the field of block macihines industry. for now,

we have achieved essential ceticifications domestic and overseas,such like ISO9001,CE.

                                                                               Ralted product---JD350





Main specification and technical parameters

Overall size

1200(L)×1200(W)×1300(H)mm(assembled)

1200(L)×1200(W)×800(H)mm(seperated)

Shaping cycle

5 mins

Volume

350L (25Kgs Cement)

Electricity

380V/220V/ (adjustable)

Total weight

330KGS







                                                                                Video  link

 Kindly contact me for getting the Video for this machine.
