vacuum freeze dryer with low price TPV-200F 30-40kg for Fruits &vegetables /laboratory freeze Drying Equipment
TPV-200F Series of Freeze Dryer for small scale production
For this series, pre-freezing and drying process are completed on shelf. It changes traditional complicated operation and prevents product from pollution.
Types: standard type and top press type
Main Features
1. PLC control standard, freeze-drying curve is programmable
2. 32 groups programme can be stored, each programme can be set up 36 segments
3. With organic glass observation window, the whole process is easy to view
4. The temperature accuracy of shelf is ≤ 1℃
5. Silicon oil fills hollow shelves, with most uniform shelf temperature, with consistent and repeatable drying effect
6. Condenser separated from drying chamber ,better water capture capability and shorter drying time
7. Big touch screen, LCD display , English interface, display of drying curves
8. Internal surface of rectangular chamber and product trays are constructed of stainless steel
9. Air-let-in valve with nitrogen is available
10. Eutectic point test device is optional
11. PC software is optional to achieve remote control
Technical Parameter for TPV-200F vacuum freeze dryer
Model |
Unit |
TPV-200F |
|
Standard |
top press |
||
Drying area |
m2 |
2.25 |
1.98 |
shelf |
layer |
5+1 |
4+1 |
Shelf spacing |
mm |
80 |
100 |
Shelf size |
mm |
500x900x20 |
610x810x20 |
Bulk capacity |
Liter |
22 |
20 |
Condenser capability |
kg/24 hours |
40 |
|
Shelf temperature |
℃ |
-50 ~ +70 |
|
Vacuum degree |
Pa |
≤10 |
|
Condenser temperature |
℃ |
Min. ≤-70 |
|
Voltage |
V, Hz |
380v ,50/60 Hz |
|
Cooling |
- |
Air,draughty, ambient temperature≤25℃ |
|
Defrosting |
- |
Water soaking |
|
Vial capacity Φ12mm |
Pcs |
14400 |
12600 |
Vial capacity Φ16mm |
Pcs |
7800 |
6800 |
Vial capacity Φ22mm |
Pcs |
4100 |
3600 |
Style of press |
- |
N/A |
Hydraulic |
Dimension |
mm |
1200x2100x1700 |
1300x3300x2500 |
Weight |
Kg |
2300 |
2600 |
Power |
KW |
13.5 |
15 |

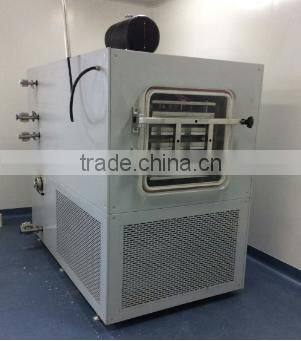

Photos of TPV-200F vacuum Freeze Dryer with stopper:
We are professional for different capacity lyophilizer with various functions. -80℃ lyophilizer with dual compressor can also be produced for you with high quality.
Application of vacuum Freeze Dryer:
