Chemical Single one layer galss reactors Min1L Max 250L
Working principle for single one layer chemical glass reactor:
Under the condition for setting the constant temperature, in a closed glass container, at atmospheric pressure or negative pressure by stirring, reaction, it can control the reaction solution's evaporation and reflux.

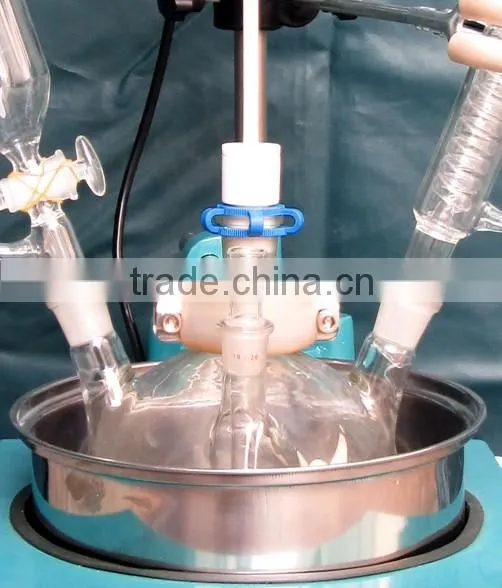

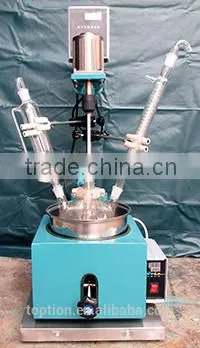

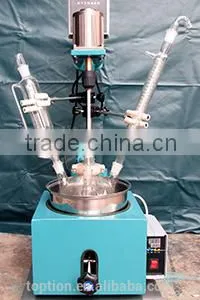

Photo of single one layer glass reactor:
Parameter for single one layer chemical glass reactor:
Model |
TST-2L |
TST-5L |
TST-10L |
TST-20L |
TST-30L |
TST-50L |
TST-80L |
TST-100L |
TST-150L |
TST-200L |
|
|
Reaction flask(L) |
2 |
5 |
10 |
20 |
30 |
50 |
80 |
100 |
150 |
200 |
The mouth number of the bottle |
4 |
4 |
5 |
5 |
5 |
6 |
6 |
6 |
7 |
7 |
|
Stirring power(W) |
90 |
120 |
180 |
180 |
250 |
250 |
250 |
250 |
370 |
450 |
|
Speed(rpm) |
0-1300 |
0-1300 |
0-720 |
0-720 |
0-720 |
0-720 |
0-720 |
0-720 |
0-720 |
0-720 |
|
The diameter of Stirring bar(mm) |
φ6 |
φ10 |
φ10 |
φ10 |
φ12 |
φ12 |
φ16 |
φ16 |
φ18 |
φ18 |
|
Heater |
1.5kw 180℃ |
2kw 180℃ |
2.5kw 180C |
3kw 180℃ |
4.5kw 180C |
6kw 180℃ |
7kw 180C |
9kw 180C |
10kw 180C |
11kw 180C |
|
Power(V) |
220 |
220 |
220 |
220 |
220 |
380 |
380 |
380 |
380 |
380 |
|
Frequency-converting |
no |
have |
have |
have |
have |
have |
have |
have |
have |
have |
|
Vacuum sealing |
have |
||||||||||
±0.2℃controlling of temperature |
have |
||||||||||
Discharge valve |
have |
||||||||||
PTEE stirring bar |
have |
||||||||||
Charging cork |
have |
||||||||||
Tube for testing temperature |
have |
||||||||||
Reflux condenser |
optional |
have |
|||||||||
Distillation condenser system |
no |
optional
|
|||||||||
Vacuum meter |
no |
optional |
have |
||||||||
stereoscopic stirring |
have |
||||||||||
Automatic stir in CW or CCW |
no |
no |
no |
optional |
have |
||||||
Mouth for muti-fanctions |
no |
no |
no |
have |
|||||||
Low mouth for taking material out |
no |
no |
have |
||||||||
Discharging cork |
no |
no |
have |
||||||||
Cap of heating bath |
optional |
||||||||||
Corke for anti-block |
no |
no |
no |
no |
have |
||||||
Increase power under lower speed |
no |
optional |
|||||||||
Cooling coils |
no |
no |
optional |
||||||||
Product Features of single one layer glass reactor:
1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)
Technology services:
1. We can design and produce equipments according to your requests!
2. Single layer glass reactor, double layers glass reactor, three layers glass reactor all welcome here!
