WT2-10 Brazil Interlocking Paver Brick Making Machine in South Afric

WT2-10 Brazil Interlocking Paver Brick Making Machine in South Afric photo-1

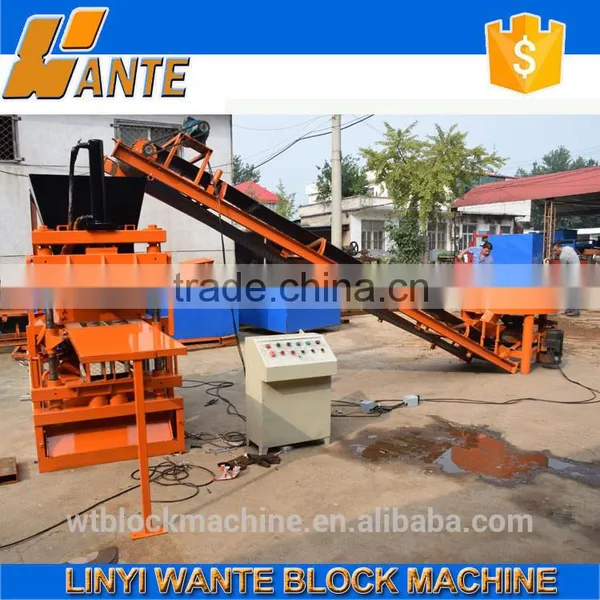

WT2-10 Brazil Interlocking Paver Brick Making Machine in South Afric photo-2

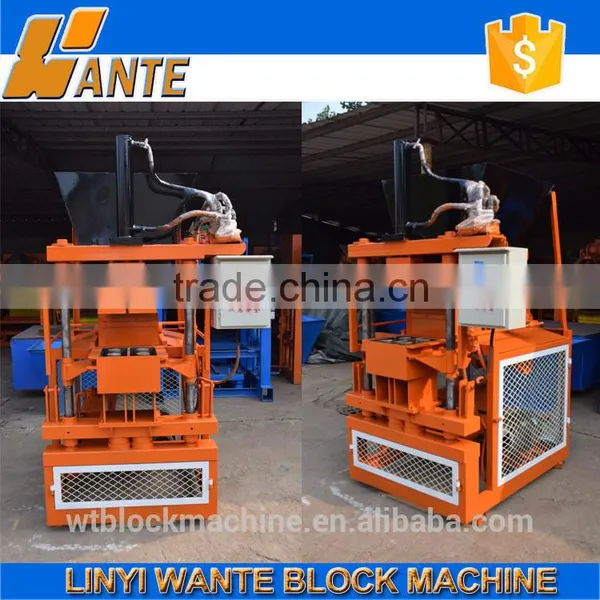

WT2-10 Brazil Interlocking Paver Brick Making Machine in South Afric photo-3

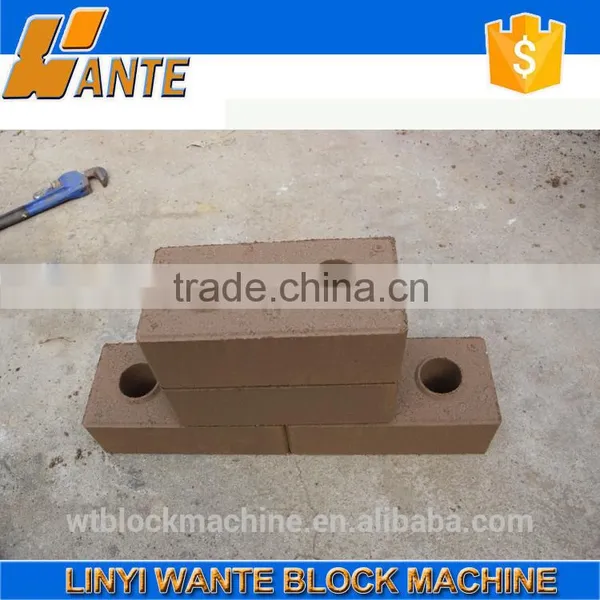

WT2-10 Brazil Interlocking Paver Brick Making Machine in South Afric photo-4
WT2-10 Brazil Interlocking Paver Brick Making Machine in South Afric photo-5

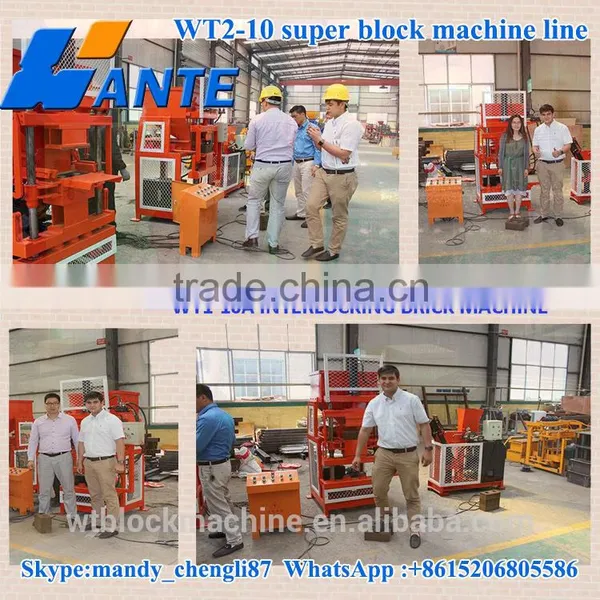

WT2-10 Brazil Interlocking Paver Brick Making Machine in South Afric photo-6
US$ 8,193 - 8,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Interlock Block Making Machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Interlock Block Making Machine
Brick Raw Material Clay
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 5000-6000pcs/8hr
Place of Origin Shandong, China
Brand Name Wante
Model Number WT2-10
Voltage 220/240/380/440V
Power 7.5KW
Dimension(L*W*H) 1400X1400X2100MM
Certification ISO9001&CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

WT2-10 is a new model in our factory, produce 2 pcs per mold, as it is a whole production line, saves labor and have a high capacity.



Product Description

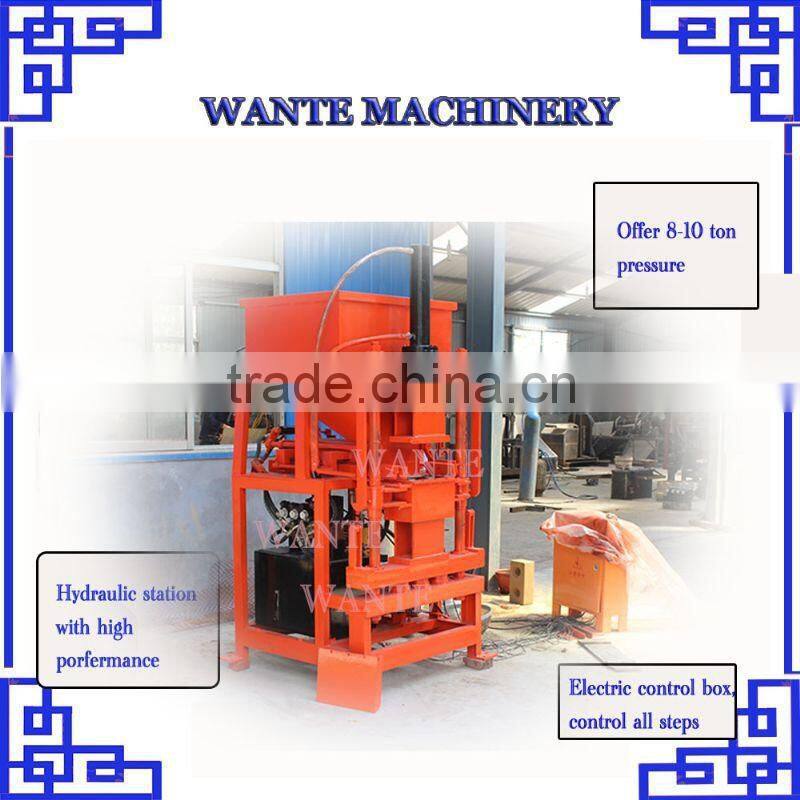

WT2-10 ECO brazil interlocking paver brick making machine in south afric  showing

WT2-10 brazil interlocking paver brick making machine in south afric

WT2-10 brazil interlocking paver brick making machine in south afric

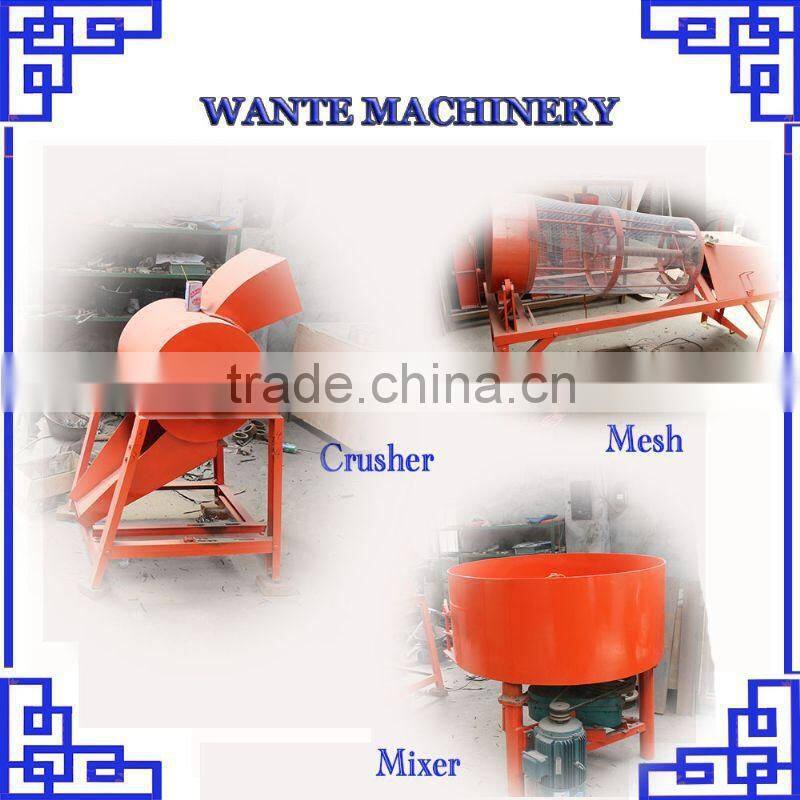

WT2-10 ECO brazil interlocking paver brick making machine in south afric working process :

1. Big clay made into small size by soil crusher

2.  Remove the big size clay, use small size clay only

3. Pour the clay and cement to mixer , mixing them with water

4. Transfer the finished raw material to host machine by conveyor machine.

5.  Produce green block.

6. Carry the green block to curing aera.

WT2-10 brazil interlocking paver brick making machine in south afric



 WT2-10 brazil interlocking paver brick making machine in south afric

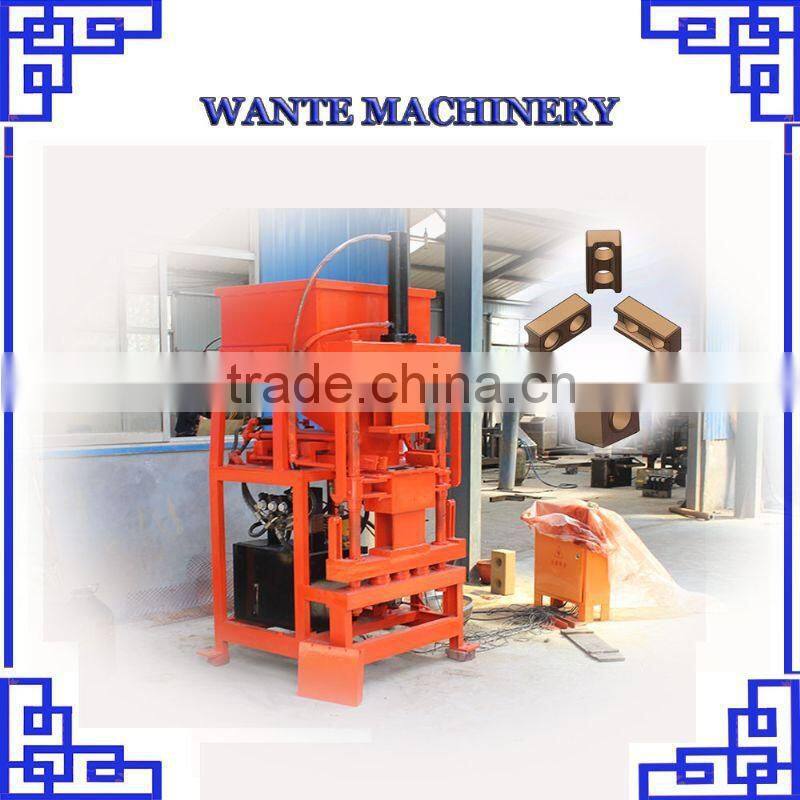

WT2-10 ECO brazil interlocking paver brick making machine in south afric  main parameters

WT1-10A hydraulic interlocking block machine

Overall size

1400(L)×1100(W)×2100(H)mm

Shaping cycle

10-12 seconds

Power

7.5 KW



12 Hp diesel engine

Pressure

16Mpa

Total weight

1300 KGS

WT2-10 brazil interlocking paver brick making machine in south afric



WT2-10 ECO brazil interlocking paver brick making machine in south afric main parameters

Overall size  mm

1100(L)×1100(W)×1400(H)mm

Motor

5.5KW

Capacity

500KGS/H

Electricity

380V/220V/ (adjustable)

Total weight

300 KGS



WT2-10 ECO brazil interlocking paver brick making machine in south afric Crusher main parameters

Power

3KW

Capacity

480KGS/h

Rated power

380V or 220V

Size

Diameter:500mm

Total weight

320 KGS



WT2-10 ECO brazil interlocking paver brick making machine in south afric Mixer main parameters

Overall size  mm

1200(L)×1200(W)×1200(H)mm

Mixing time

3-5mins

Feeding volume

500L

Output  volume

350L

Power

7.5 kw

Total weight

400 KGS

 WT2-10 brazil interlocking paver brick making machine in south afric

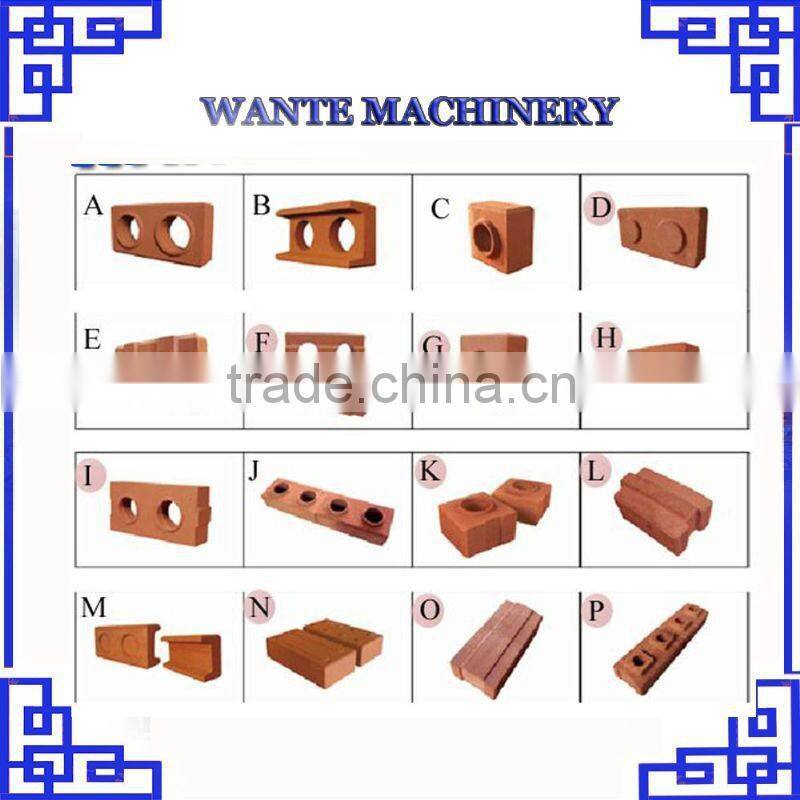

Capacity table
WT2-10 ECO brazil interlocking paver brick making machine in south afric Block capacity

Block size

Piece/mold

Pieces/hour

Pcs/day

300x150x100mm

2

500-600

5000-6000





Our Customer



WT2-10 brazil interlocking paver brick making machine in south afric



This year, we have dlivered more than 120 sets to Mliddle Asia, Africa, South Africa etc

 Rated products

WT2-10 brazil interlocking paver brick making machine in south afric





  WT2-10 ECO brazil interlocking paver brick making machine in south afric Other products in our factory

WT2-10 brazil interlocking paver brick making machine in south africWT2-10 brazil interlocking paver brick making machine in south afric





Our Factory

Our factory built in 1994, mainly produce hollow block machine, soil cement block machine, AAC production line etc.

WT2-10 brazil interlocking paver brick making machine in south afric



From the year of 2012,our factory cooperate with Germany company, and they dispach their engineer to instruct work here.
