2015 New Design WT1-10 Interlocking Compressed Brick Machine in Kenya Quality Choice

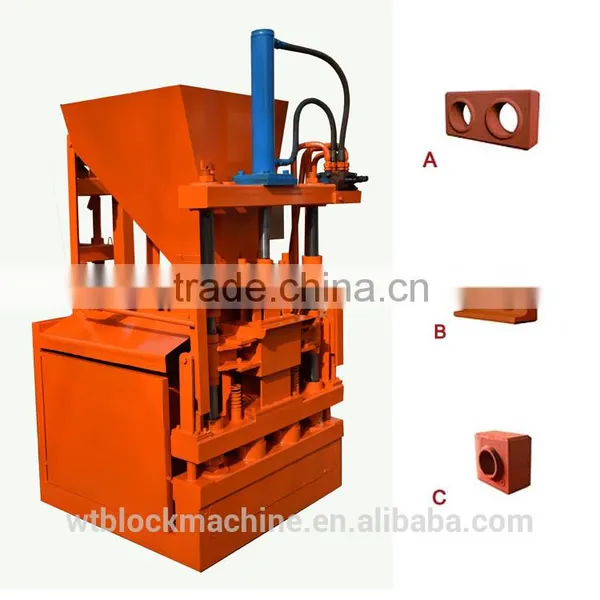

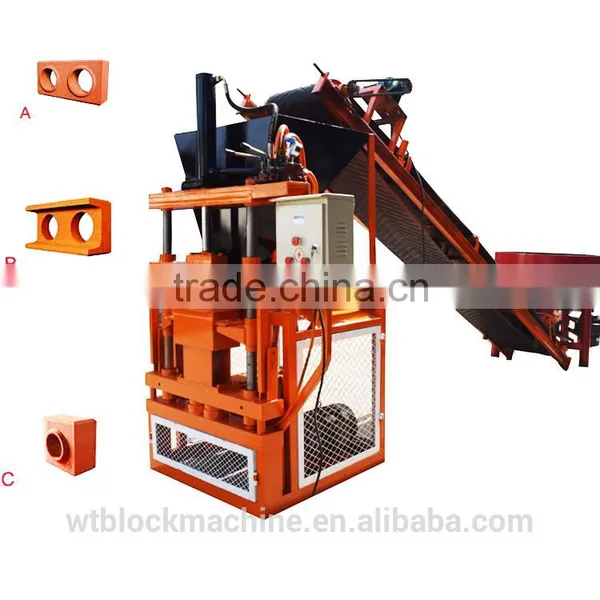

2015 New Design WT1-10 Interlocking Compressed Brick Machine in Kenya Quality Choice photo-1
2015 New Design WT1-10 Interlocking Compressed Brick Machine in Kenya Quality Choice photo-2
2015 New Design WT1-10 Interlocking Compressed Brick Machine in Kenya Quality Choice photo-3
2015 New Design WT1-10 Interlocking Compressed Brick Machine in Kenya Quality Choice photo-4
US$ 6,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Clay
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port or any port of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Clay
Processing Brick Molding Machine
Method Hydraulic Pressure
Automatic Yes
Capacity 2400-3000 pcs per day
Place of Origin Shandong, China
Brand Name Wante
Model Number WT1-10
Voltage 220v/240v/380v/440v/adjustable
Power 5.5kw
Dimension(L*W*H) 1000x1000x1800mm
Certification ISO9001&CE
Warranty 1 year
After-sales Service Provided No overseas service provided



1. 2015 new design WT1-10 interlocking compressed brick machine in kenya

2015 new design WT1-10 interlocking compressed brick machine in kenya  is our newest clay and cement brick making machine.

it is automatic operation machine.its material feeding.mould pressing and mould lifting automaticlly.

you can chose diesel engine or motor.

The most versatile of the market, for enable varied models of blocks, bricks and floors in only one equipment,without the need of buy another machine.manufactured with precision in a Machining Center, its interior receives a thermal treatment and is rectified.



Compound by modeler wombs interchangeable enabling flexibilities of different forms and models for the pressed blocks, bricks and floors

2015 new design WT1-10 interlocking compressed brick machine in kenya



2> 2015 new design WT1-10 interlocking compressed brick machine in kenya capacity table







No.

Block photo

Block size

Pcs/mould

Pcs/hour

Pcs/day

1

250x125x100mm

300x150x100mm

1

400-500

3000-4000



3> 2015 new design WT1-10 interlocking compressed brick machine in kenya Specification



Main specification and technical parameters

Overall size

1000(L)×1000(W)×1800(H)mm

Shaping cycle

15-20seconds

Power

5.5 KW

12 Hp diesel engine

Pressure

16Mpa

Total weight

1000 KGS

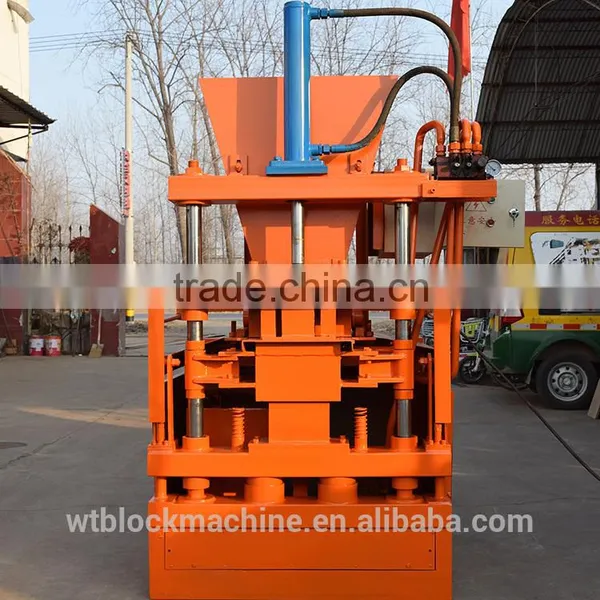

3.Machine real photos for  WT1-10 interlocking compressed brick machine in kenya

2015 new design WT1-10 interlocking compressed brick machine in kenya

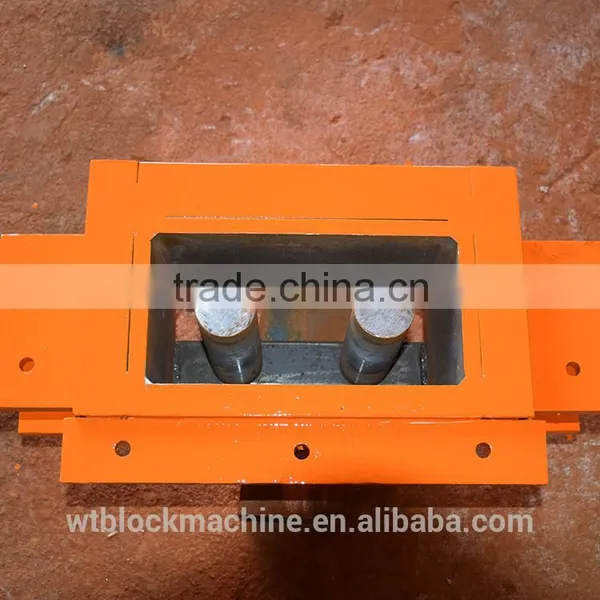

4.Moulds for  WT1-10 interlocking compressed brick machine in kenya

 2015 new design WT1-10 interlocking compressed brick machine in kenya





 2015 new design WT1-10 interlocking compressed brick machine in kenya



Other new type for your reference


2015 new design WT1-10 interlocking compressed brick machine in kenya
