WT1-10 clay soil brick making machine for clay brick
- 20 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- WT1-20 clay building block mesin manufacturer
- 2015 new design WT1-10 interlocking compressed brick machine in kenya Quality Choice
- 2015 new design WT1-10 brick machine for making interlocking hollow blocks
- WT1-25 clay brick molding machine for sale
- QT10-15 hollow slab machine automatic brick laying machines
- 2015 China Block Machinery QT5-15 paving brick machine marble block machine hot sale for middle east market
Product Details
Condition: | New | Type: | Interlock Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 4800pcs/8hr | Place of Origin: | Shandong, China | Brand Name: | Wante |
Model Number: | WT1-10 | Voltage: | 220/240/380/440V | Power: | 7.5KW |
Dimension(L*W*H): | 1200x1200x2000mm | Certification: | ISO9001&CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Nude package
Product Description
WT1-10 movable concrete machine packaging machine line including:

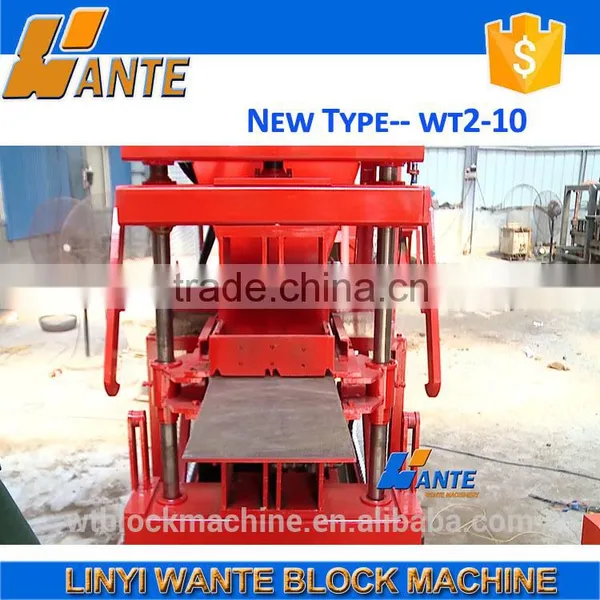

1. WT1-10 host machine
2. Conveyor belt
3. JD350 mixer

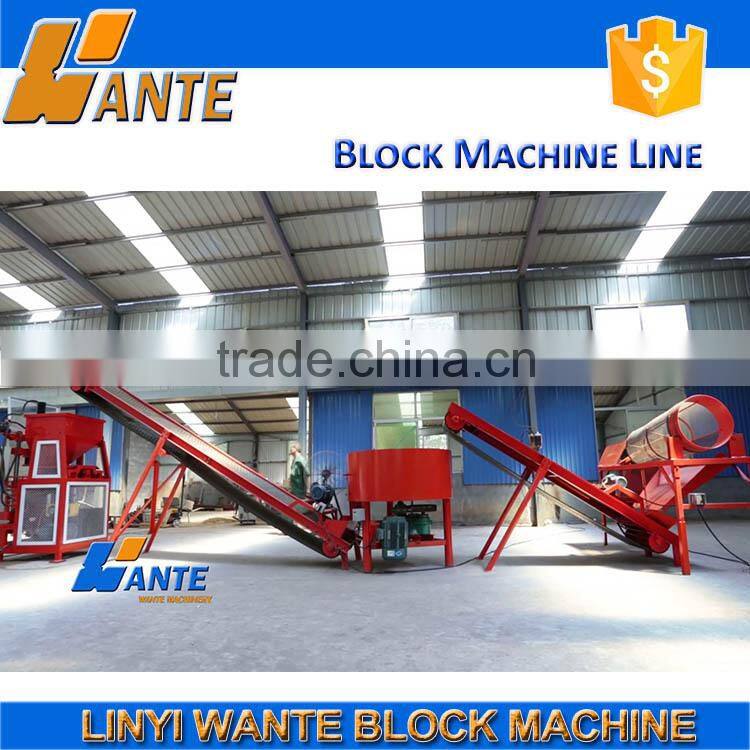

The line showed as followed:
Capacity is more than 4800pcs/day.

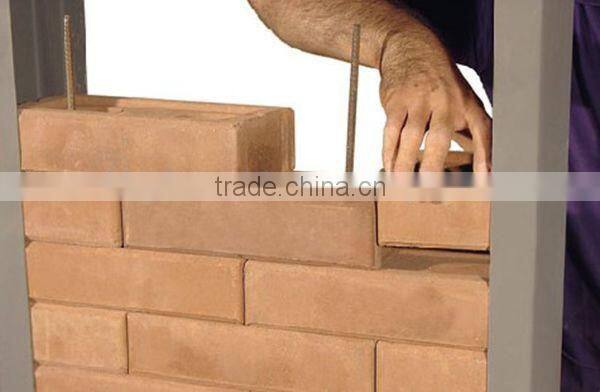

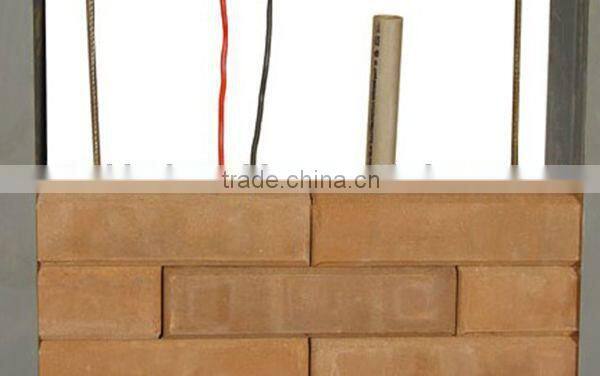

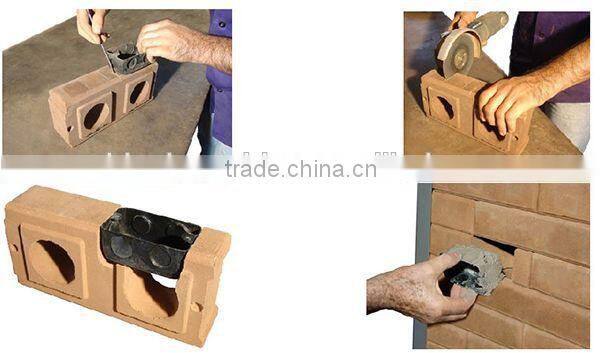

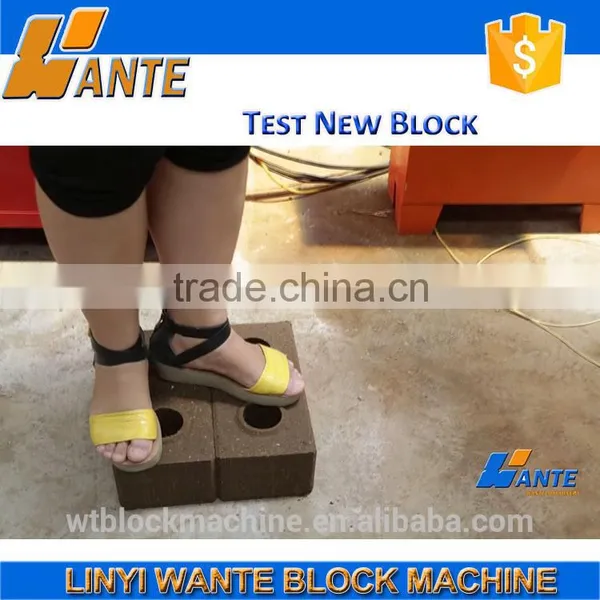

Part of blocks
Paver bricks
WT1-10 movable concrete machine packaging in our factory
Main parameters
Main specification and technical parameters | |
Overall size | 1200(L)×1200(W)×1800(H)mm |
Shaping cycle | 5-6seconds |
Power | 7.5 KW |
12 Hp diesel engine | |
Pressure | 16Mpa |
Total weight | 1000 KGS |
Material request
The interlocking block is produce from a soil and cement mixture.The soil type is classified as a sandy-loam.The soil should contain more sand than clay and silt(fines),If the clay content is too high,sand will need to be blended in with the soil.
The clay keeps the block together so it is easy to carry the block during blockmaking. The sandy portion
is what binds with the cement to give the block its ultimate strength.
Too little clay will make the block handing difficult,too much clay will make the block shrink and crack during curing
The interlocking blocks are made from sub-soil 1 meter below ground level,never top soil,
which contains organic material.
Stabilised soil blocks
Our WT1-25 or WT1-10 can produce “stabilised soil blocks”,The required “stabiliser” is cement.
This is mixed with subsoil and about 3-10% water to produce a mix which feels slightly moist.

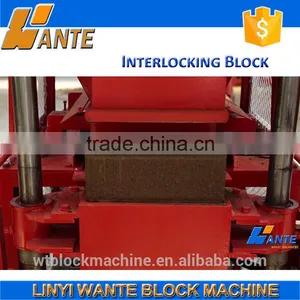

The mix is moulded under high pressure to produce interlocking blocks
