US$ 160 - 550 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KEMAPOWER
Model Number:
N-ST
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KEMAPOWER
Model Number N-ST
Specification Normal
Application Industrial
Output Voltage (V) 110 / 120V/ 220V/230V ±5% , 50HZ or 60HZ.
Load Power (W) 1500W
Solar Power (W) 300W-1500W

Gird Hybrid Solar Power Inverter N-ST

Key Features

Technical Specifications

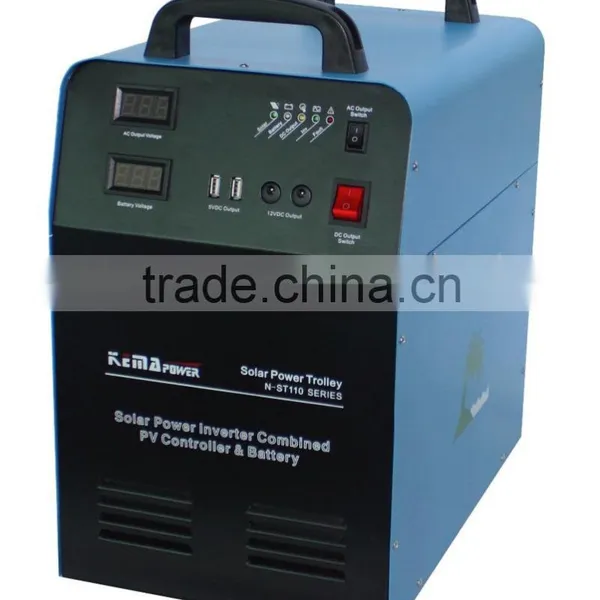

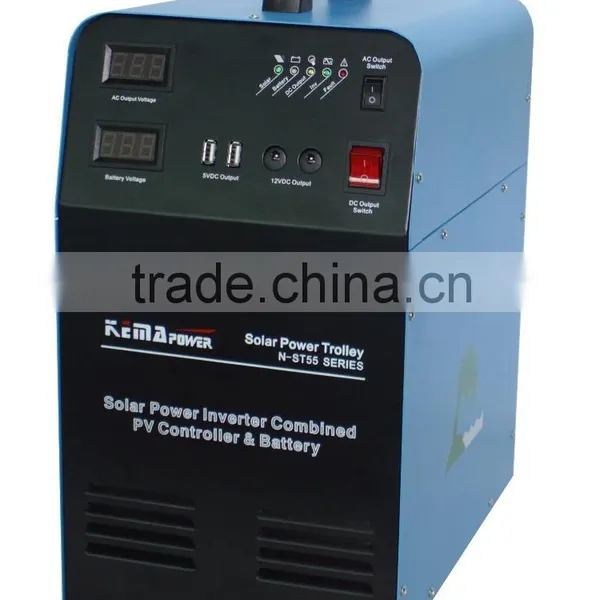

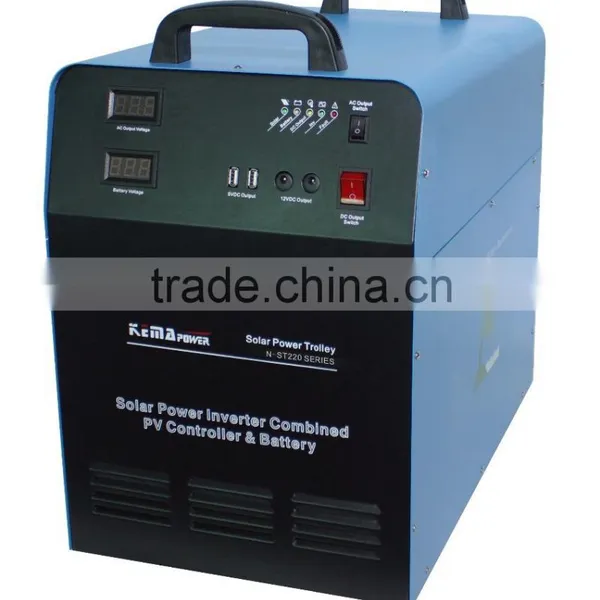

1.Pure Sine wave solar power trolley
2.Low frequency Ring transformer,stable and lower self-consume
3.Combined solar controller and battery together

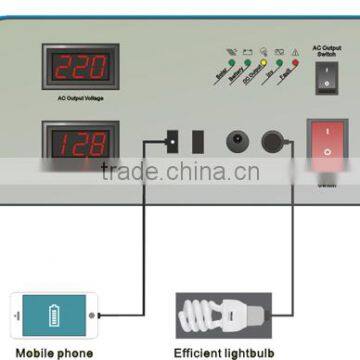

4.With 5V USB charger, 12VDC lamp output, 12VDC 8Amp For DC big load.

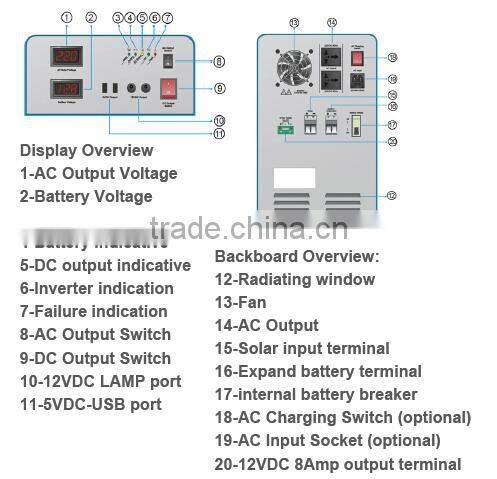

5.LED Display for solar panel, battery, DC load and inverter running Status
6.Digital display for AC output voltage and battery voltage
7.Alarm for battery low ,overload ,short circuit and so on
8.With AC, DC output switch and battery input switch
9.With Extension Battery connector to extend backup time

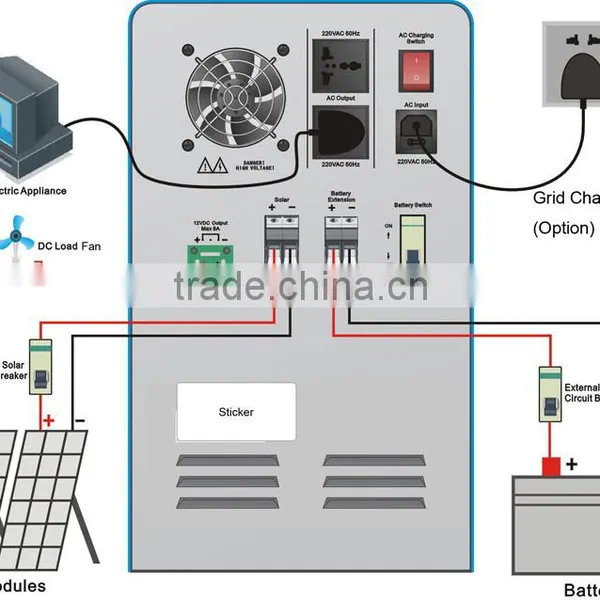

10.Plug and play design
11.AC/DC Grid Charger is option

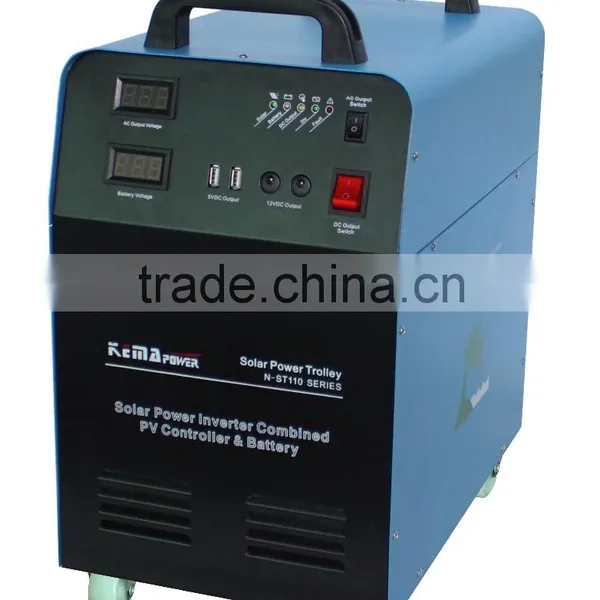

12.Wheel is option



Technical Specifications

Model NST55-300LF(C ) NST55-500LF(C ) NST110-500LF(C ) NST110-1000LF(C ) NST220-500LF(C ) NST220-1000LF(C ) NST220-1500LF(C )
AC output Rated Power(W) 300 500 500 1000 500 1000 1500
voltage(VAC) 110V/120V,220V/230V
frequency(Hz) 50HZ,60HZ
Wave form Sine Wave
AC output  switch  yes
Battery Battery bank voltage  12VDC 24VDC 24VDC
Internal battery 1*GEL55AH-12VDC 2*GEL55AH-24VDC 4*GEL55AH-24VDC
Extension Battery connector Advice 12VDC , 55AH Mode Advice 2PCS GEL55-12 in series Advice 4PCS GEL55-12,2 series 2 parallel
Recharge time within 3hours  within 3hours  within 6horus
Battery switch  yes , Breaker yes , Breaker yes, Breaker
Grid Charger(Option)  AC charge Range  110V or 220V +- 25%  110V or 220V +- 25%  110V or 220V +- 25%
Charge current  12VDC10AMP   24VDC5AMP  24VDC5AMP
Grid charge switch  yes  yes yes
Charge Controller  Max Current  30A 30A 30A
Rated VDC 12VDC 24VDC 24VDC
Input  range  10V to 25VDC 20V to 50VDDC 20V to 50VDDC
Equalizing Charge Voltage 14.3VDC 28.6V 28.6V
Float voltage  13.7VDC 27.4VDC 27.4VDC
Over charge protective voltage(VDC) 14.2VDC 28.4VDC 28.4VDC
Over charge recover voltage(VDC) 14VDC 28VDC 28VDC
Solar panel  adviced capacity  36Cell, Max 500WP 36Cell in series or 72 Cell / max 1000WP 36Cell in series or 72 Cell / max 1000WP
PV input Terminal  yes yes yes
DC output high voltage protective voltage(VDC) 16VDC 32VDC 32VDC
High voltage recover voltage(VDC) 15.2VDC 30.4VDC 30.4VDC
Low voltage recover voltage(VDC) 12.6VDC 25.2VDC 25.2VDC
Low voltage protective voltage(VDC) 11VDC 22VDC 22VDC
5VDC USB Output 2 Port,/MAX 2A 2 Port,/MAX 2A 2 Port,/MAX 2A
Big DC output  8AMP, 12VDC 8AMP, 12VDC 8AMP, 12VDC
12VDC DC Lamp port  2 Port,/MAX 2A 2 Port,/MAX 2A 2 Port,/MAX 2A
DC output general switch  yes yes yes
Display  LED display  solar charge status/Bat voltage normal,over hgih,over low,charge protection/ /DC output ON,OFF,overload, short circuit/ Inverter overload,short circuit,fault
Digital Display Battery VDC, Output VAC
Alarm  overload bat low , alarm /1sec; battery low or high protection,alarm/3 sec,inverter short circuit or fault,continous
Fan start temperature >45℃
Operation environment temperature 0-40℃
Working temperature -25 - +55℃
Humidity 0-90%non-condensing
Product Size:D*W*H(mm) 343*225*443 423*260*453 513*310*493
Packed Size:D*W*H(mm) 420*290*490 520*370*520 610*420*550
G.W of the package with bat  26.7 28.4 42.9 47.6 76.9 82.2 86.7
Remark  Internal Battery backup time The above is around value under Full load. actual using should not always full load. So should be longer . Can Extension Battery  again .
Recharge time the above based on max PV and use the AC/DC power Charger too .actual using is different for solar panel capacity reason
Mode name NST55-300LF(C ),N- new, ST-Solar Trolley,300W,55-55AH/12VDC, C , with AC/DC Grid Charger
