G-PSW 1W-6W Off Grid Hybrid Solar Inverter
US$ 170 - 458
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KEMAPOWER
Model Number:
G-PSW
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1-6KW Grid Hybrid Solar Power InverterUS$ 300 - 300MOQ: 15 Pieces -
G-PSW4K-6K Solar InverterNegotiableMOQ: 1 Piece
-
N-PSW1K-6KW Low Frequency Sine Wave Home UPSNegotiableMOQ: 30 Pieces
-
Pure Sine Wave Home Inverter N-PSWNegotiableMOQ: 1 Piece
-
SPG500W-3KW Off Grid InverterUS$ 99 - 259MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
KEMAPOWER
Model Number
G-PSW
Output Power
Other, 1KW~6KW
Output Type
Single
Size
560mm*315mm*300mm
Weight
2KG
Input Voltage
220VAC/110VAC
Output Voltage
220VAC/110VAC+/-10%
Type
DC/AC Inverters
Output Frequency
50HZ/60Z
Output Current
41A--250AMP

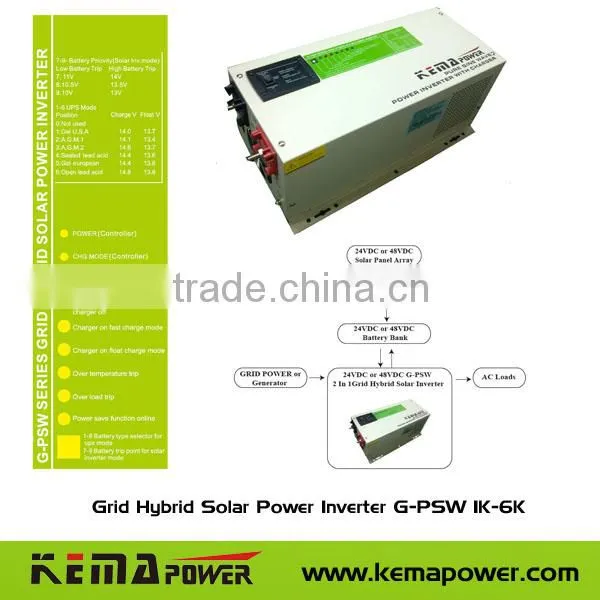

Off Grid Hybrid Solar Power Inverter
Key Features
1. low frequency pure sine wave Grid Hybrid Off Grid Power Inverter
2. 2 in 1 Off Grid design , Inverter + Power Charger.
3. Selectable Grid power First or Solar Power First (battery power First )
4. Transfer Time 10ms. Computer will not shut off when Mains off suddently.
5. digital control Three stage charger, improve battery life
6. with Battery Selector for charge of diffreent battery
7. Power saver Function ( Stand by)
8. High Power Factor0.9-1,
9. Low idle current to reduce energy consumption
10. low DC input, 1-3KW/12V (24/48) VDC, 4-6KW/24V (48) VDC
11. big charge current,35A-75Amp for different mode
12. Back-Feed Protection
13. Full protection,short circuit,Overload,over Temp., Battery low/high Protection
14. Fault recovery
15. LED display and alarm
16. remove control solution
17. Rs232 communication function optional for LED Type
18. SNMP Net Agent function optional for LED type
19. Remove control cable optional
20. LCD Display is optional
TECHNOLOGY SPECS
| Technical specification | |||||||
| Item | Model | G-PSW-1K | G-PSW 2K | G-PSW3K | G-PSW4K | G-PSW5K | G-PSW-6K |
| Capacity | VA / Watts | 1KVA/1KW | 2KVA/2KW | 3KVA/3KW | 4KVA/4KW | 5KVA/5KW | 6KVA/6KW |
| Surge rating (10s) | 3KVA | 6KVA | 9KVA | 12KVA | 15KVA | 18KVA | |
| Efficiency | >95% under AC mode,>88% under DC mode | ||||||
| Power Factor | 0.9~1.0, | ||||||
| Input | Normal voltage | 220VAC/110V | |||||
| 220V Voltage range | 184-270V+-4% | ||||||
| 110V Voltage range | 85-150V+-4% | ||||||
| Frequency range | 50Hz/60HZ -3 +5 Hz (Auto detection) | ||||||
| Output | Voltage (V) | 220V/110V+-10% | |||||
| Frequency (Hz) | 50Hz/60HZ +-0.3 Hz | ||||||
| Wave form | Pure Sine Wave | ||||||
| bypass without Battery | yes | ||||||

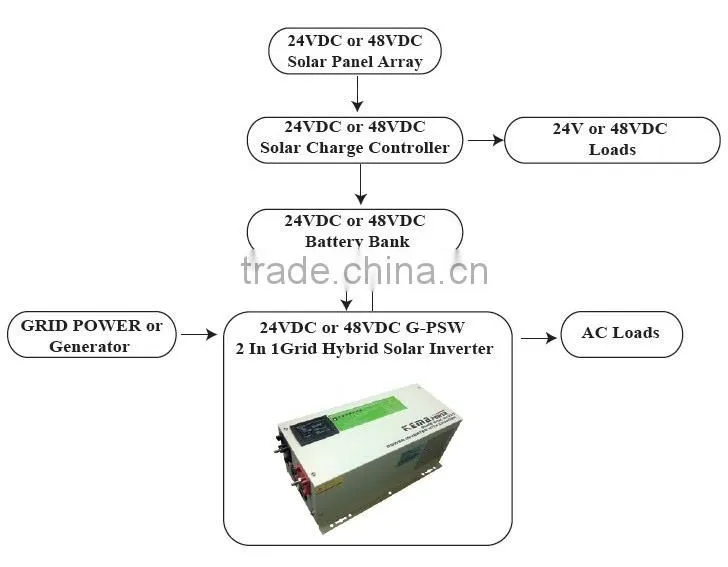

| UPS Mode | Grid power first. Battery power ( Solar Power) as backup | ||||||
| Solar inverter Mode | Solar Power First, Grid power as Backup | ||||||
| Transfer Time | less than 10 ms (typical) | ||||||
| Overload capacity | DC Mode(SMPS load) | (110%<load<125%) ±10% for 15 minutes;(125%<load<150%) ±10% for 60s; Load>150% ±10% for 20s |
|||||
| AC Mode(SMPS load) | by breaker | ||||||
| Protection | Overload | Current limit under DC mode ,Breaker under AC mode | |||||
| Battery Protection | Over charge, Over discharge,DC Breaker,Alarm | ||||||
| Over Temperature | Variable speed fan,LED lighting and alarm | ||||||
| Back-Feed Protection | yes | ||||||
| short Circuit. | by breaker.Faul after 10 secs | ||||||
| Battery/Charger | AC input | 95-127V, 194(164)--243V | |||||
| DC input | 12VDC /24VDC or 48VDC,external Battery | ||||||
| Charge Voltage | for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple | ||||||
| Charger Current | 12-75AMP difference for different mode | ||||||
| Charge Manage | digital control,Three stage charger | ||||||
| Display | LED | Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on | |||||
| Audible Alarm | Battery Low,Battery High,Over Temp. Over load,Fail,Over charge | ||||||
| Optional | RS232 Communication,SNMP Net Agent,Remote Control | ||||||
| Power Saver | below 25W when enabled.loading checking 2 time/sec. | ||||||
| Working Environment | Temperature | 0°C to 40°C | |||||
| Noise | 60dB max | ||||||
| Humidity | 5% to 95% | ||||||
| Package | Carton | Carton | Carton | Carton | Carton | Carton | |
| Package Size | WxDxH (mm) | 590*335*320 | 590*335*320 | 590*335*320 | 765*340*320 | 765*340*320 | 765*340*320 |
| Gross Weight | KG | 20 | 22 | 26 | 38 | 48 | 48 |
| ATTENTION | the inverter do not build in solar charger controller. | ||||||
