N-PSW 1K-3K Pure Sine Wave Home UPS

N-PSW 1K-3K Pure Sine Wave Home UPS thumbnail-1
N-PSW 1K-3K Pure Sine Wave Home UPS photo-1
US$ 50 - 160 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KEMAPOWER
Model Number:
N-PSW
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KEMAPOWER
Model Number N-PSW
Output Power Other, 1KW~3KW
Output Type Single
Size 560mm*315mm*300mm
Weight 22KG
Input Voltage 220VAC/110VAC
Output Voltage 220VAC/110VAC+/-10%
Type DC/AC Inverters
Output Frequency 50HZ/60Z
Output Current 41A--250AMP

Home UPS



Key Features

1.low frequency pure sine wave with Charger(HOME UPS). Never harm to any load
2.Transfer Time 10ms. Computer will not shut off when Mains off suddenly.
3.digital control Three stage charger, improve battery life
4.with Battery Selector for charge of different battery
5.Power saver Function ( Stand by)
6.High Power Factor0.9-1,
7.Low idle current to reduce energy consumption
8.low DC input, 1-3KW/12V (24/48) VDC, 4-5KW/24V (48) VDC,easy to arrange battery bank.
9.big charge current,35A-75Amp for different mode
10.Back-Feed Protection
11.Full protection,short circuit,Overload,over Temp., Battery low/high Protection
12.Fault recovery
13.LED display and alarm
14.Rs232 communication function optional.display and control product running by computer
15.SNMP Net Agent function optional,display and control product running by internet



TECHNOLOGY SPECS



Item Model N-PSW1K N-PSW2K N-PSW3K
Capacity VA / Watts 1KVA/1KW 2KVA/2KW 3KVA/3KW
Surge rating (10s) 3KVA 6KVA 9KVA
Efficiency >95% under AC mode,>88% under DC mode
Power Factor 0.9~1.0,
Static Power Capacity Max 12W
Input Normal voltage 220VAC/110V
220V Voltage range 184-270V+-4%
110V Voltage range 85-150V+-4%
Frequency range 50Hz/60HZ -3 +5 Hz (Auto detection)
Output Voltage (V) 220V/110V+-10%
Frequency (Hz) 50Hz/60HZ +-0.3 Hz
Wave form Pure Sine Wave
bypass without Battery yes
Transfer Time 10 ms (typical)
Overload capacity DC Mode(SMPS load) (110%<load<125%) ±10% for 15 minutes;
(125%<load<150%) ±10% for 60s;
Load>150% ±10% for 20s
AC Mode(SMPS load) by breaker
Protection Overload Current limit under DC mode ,Breaker under AC mode
Battery Protection Over charge, Over discharge,DC Breaker,Alarm
Over Temperature Variable speed fan,LED lighting and alarm
Back-Feed Protection yes
short Circuit. by breaker.Faul after 10 secs
Battery/Charger AC input 95-127V, 194(164)--243V
DC input 12VDC /24VDC or 48VDC,external Battery
Charge Voltage for 12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple
Charger Current 12-75AMP difference for different mode
Charge Manage digital control,Three stage charger
Display LED Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on
Audible Alarm Battery Low,Battery High,Over Temp. Over load,Fail,Over charge
Optional RS232 Communication,SNMP Net Agent,Remote Control
Power Saver below 25W when enabled.loading checking 2 time/sec.
Working Environment Temperature 0°C to 40°C
Noise 60dB max
Humidity 5% to 95%
Package Carton Carton wooden box
Package Size WxDxH (mm) 590*335*320 590*335*320 590*335*320
Gross Weight   20 22 26

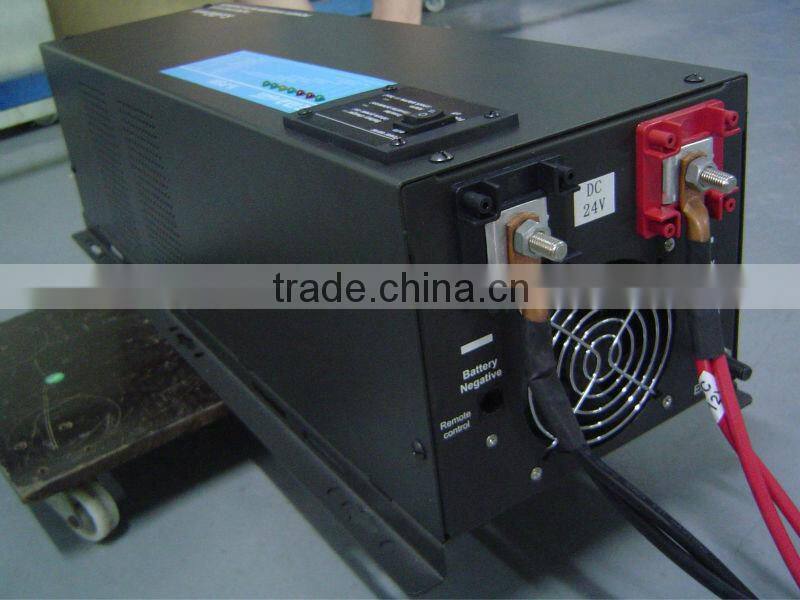

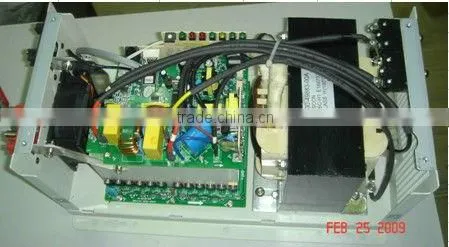

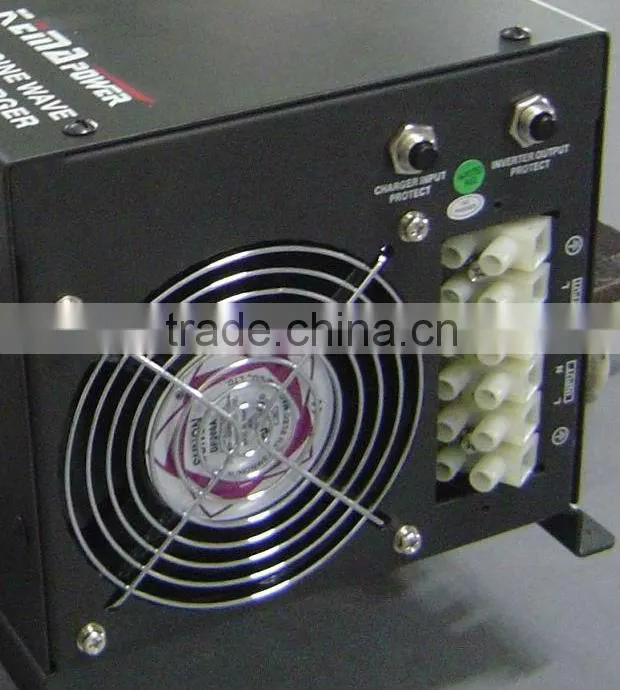

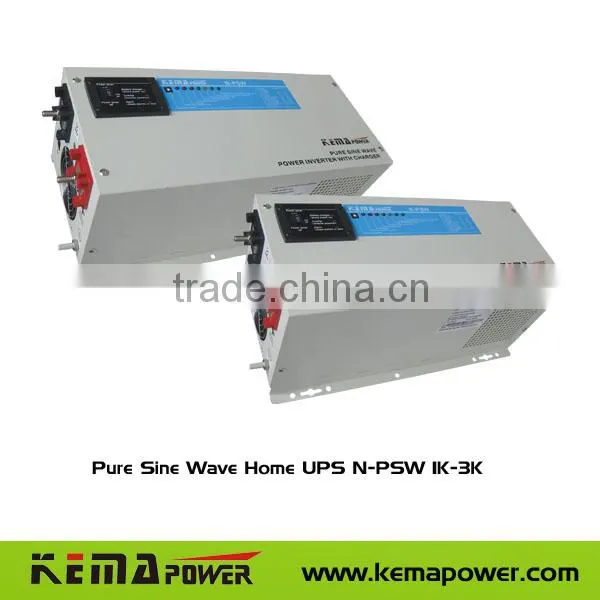

 Product show

N-PSW 1K-3K Pure Sine Wave Home UPSN-PSW 1K-3K Pure Sine Wave Home UPSN-PSW 1K-3K Pure Sine Wave Home UPSN-PSW 1K-3K Pure Sine Wave Home UPSN-PSW 1K-3K Pure Sine Wave Home UPS
