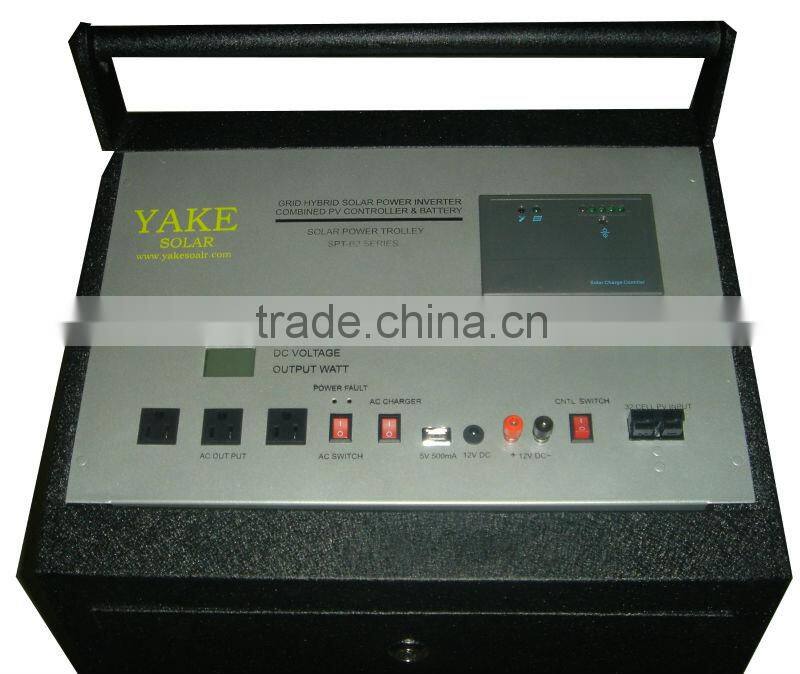

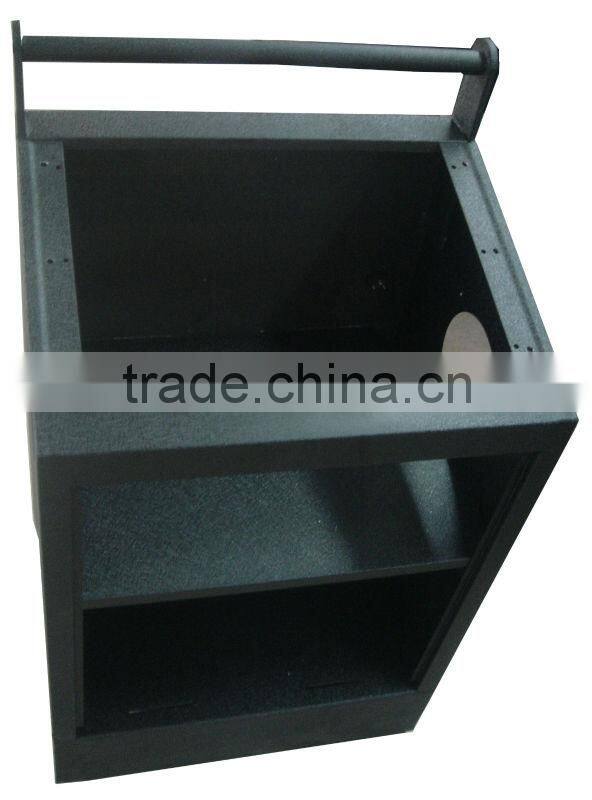

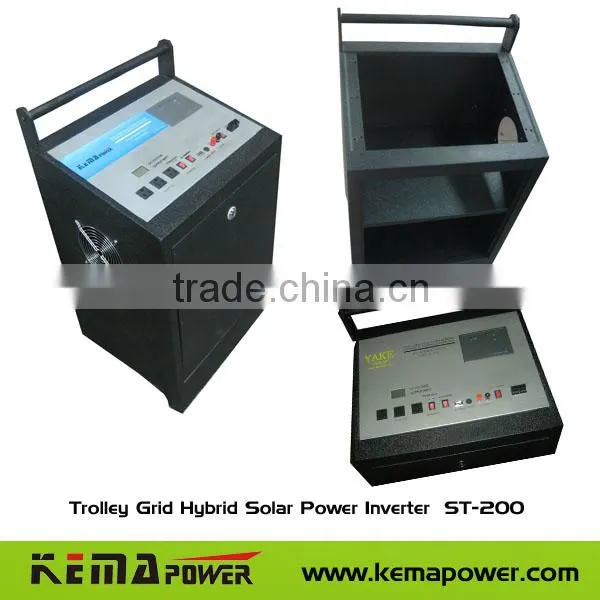

Grid Hybrid Solar Power Trolley

Grid Hybrid Solar Power Trolley thumbnail-1
Grid Hybrid Solar Power Trolley photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KEMAPOWER
Model Number:
ST-200 Series
Contact Supplier Request Quote Chat Now
Foshan Kemapower Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KEMAPOWER
Model Number ST-200 Series
Output Power Other, Solar Power Trolley Grid Hybrid Solar Power Inverter S
Output Type Single
Size 560mm*315mm*300mm
Input Voltage 220VAC/110VAC
Output Voltage 220VAC/110VAC+/-10%
Type DC/AC Inverters
Output Frequency 50HZ/60Z
Output Current 41A--250AMP

Solar Power Trolley



Key Features

1.High frequency Grid Hybrid design, Combine Grid power and Solar Power Together
2. inverter, AC Charger, solar charge controller and also battery combined together, no complicated installation
3.Optional External battery connector to extend backup time
4. with AC-DC Charger switch, AC output switch, DC output switch ( on the Solar Controller Board)
5. DC output Connector for USB Charger, DC lamp and the other DC load
6. high efficiency and low static current
7. modified sine wave output
8.PWM three stage battery charger and Battery type selector to improve battery life
9.Protection for over temperature, over load , short circuit ,over charge, over discharge
10.LED Display. LCD Display is optional
11. Automatic transform between battery mode and Line Mode
12.Manual Transfer type is optional between battery mode and Line mode
13.External Battery Cable is Optional




ST-200 SERIES  TECHNOLOGY SPECS



Mode ST200-500 ST200-1K ST200-1.5K  ST200-2K
Continuous power (W)  500W 1000W  1500W  2000W
Surge capability (W)  1000W 2000W  3000W  4000W
System DC input (VDC)  12V or 24VDC 24VDCV  24VDC  24VDC
AC output   110 / 120V/ 220V/230V ±5%, 50HZ or 60HZ. With 3 sockets
Output waveform Modified Sine Wave
DC output   5V 500Ma USB , 12V or 24VDC Terminal
Efficiency   >85%
Inverter Static current  0.2A   0.25A    0.4A  0.5A
AC/DC Charger Three stage, 10A 10A, with manual switch    Three stage, 15A  Three stage, 20A
Solar Charge Controller PWM 12V15AMP or 24VDC10AMP   PWM, 12VDC15AMP    PWM, 24VDC20AMP  PWM,24VDC20AMP
Advised PV Cell 36 Cell  or 72 Cell  72 Cell  72 Cell    72 Cell
Advised PV output Amp < 15AMP or 10AMP    <  10AMP    < 15AMP  < 20AMP or 10AMP
Combine battery Capacity 200AH/12VDC or 100AH/24VDC,  AGM or GEL maintenance free battery 200AH/12VDC or 100AH/24VDC,  AGM or GEL maintenance free battery  100AH/24VDC,  AGM or GEL maintenance free battery  100AH/24VDC,  AGM or GEL maintenance free battery
External battery back  12 or 24VDC   24VDC   24VDC   24VDC
Switch   AC Output switch, AC input switch (AC/DC Charger),  Solar Controller Connection switch. DC output switch
Battery low protection   YES
Over discharge protection YES
Resume   YES. After fault remove
Over voltage protection  YES
Overload protection   YES
With cooling fan   YES
Display LCD for BAT VDC and Load Capacity , LED charge state ,Battery Capacity, DC load state and fault
Running Temperature -35 degree to 55 degree
High temperature protection  YES,60ºC-70ºC
Short circuit protection   YES
Reverse polarity protection  YES,by Fuse or self-renew
Carton Package(cm)  54X 40X89(L*W*H) 54X 40X89(L*W*H) 54X 40X89(L*W*H)   54X 40X89(L*W*H)
Gross weight kg  492KG with BAT     41KG with Bat    94KG with BAT  96KG with BAT
ATTENTION For the ST-200 Series. When you input AC, it will work under AC mode and AC/DC Charger will work too  unless shut off AC switch
