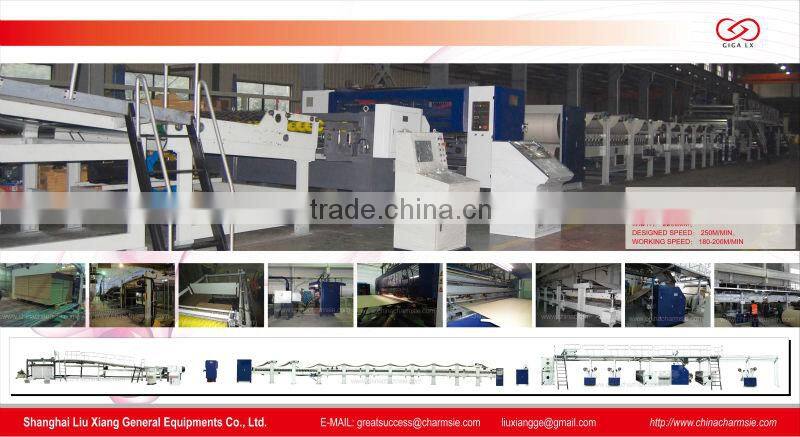

GIGA LXC NC Cutoff With Rotary Blade Carton Box Machinery
US$ 350,000 - 480,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Cutoff with rotary blade in corrugated cardboard factory
Packaging Type:
Film, Other, Film, In pallet or bulk
Payment & Shipping
Payment Methods:
Port of Shipment:
PORT OF SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GIGA LX 307 Corrugated Box Printing MachineUS$ 90,000 - 650,000MOQ: 1 Set -
GIGA-LXC High Speed Cardboard Recycling MachineUS$ 600,000 - 1,100,000MOQ: 1 Set
-
GIGI LX Computerized Corrugated Carton MachineUS$ 200,000 - 600,000MOQ: 1 Set
-
GIGA LXC Auto Printing and Folding MachineUS$ 150,000 - 250,000MOQ: 1 Set
-
GIGA LXC High Quality Automatic Feeding For Gluing MachineUS$ 150,000 - 250,000MOQ: 1 Set
Condition
New
Application
Other, Cutoff with rotary blade in corrugated cardboard factory
Packaging Type
Film, Other, Film, In pallet or bulk
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380v
Power
65KW
Place of Origin
Shanghai, China
Brand Name
GIGA LX
Model Number
LXC-250NC
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Carton box machinery2.Small gear backlash low noise stable transmission
3.Special servo drive control

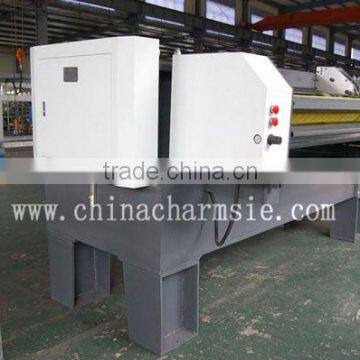

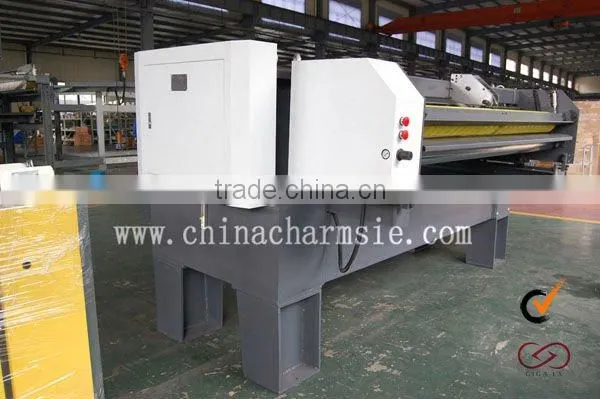

LXC-250 NC. Cutoff With Rotary Blade Cardboard Machine
Corrugated box machinery technical parameter
- Designed speed: 250 m/min Production speed 200m/min
Available max.width 2500 mm
Cutting precision (stable working) ≤+/- 1 mm
Oil pump self-circulating lubrication - The material of transmission gear: SCM21 alloy steel, quenched and processed, grinding cementite ,
- The hardness can reach HRC58-~ 60 degrees, the accuracy JIS1 grade -0 group.
- Adopt high-quality industrial computer or human-machine interface composed the host computer control system;
- AC servo motor drive, the drive adopts imported special servo drive control;

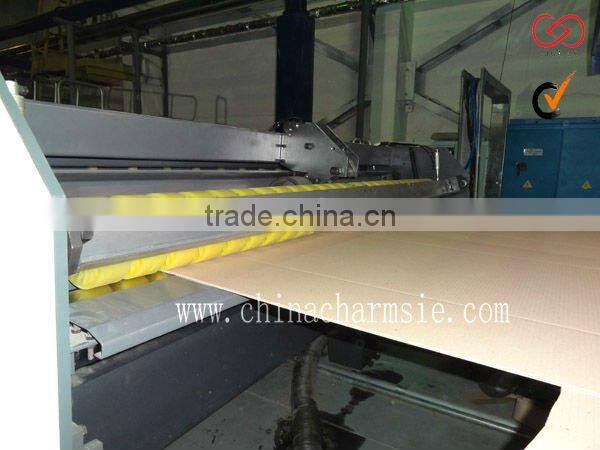

Can production management connections, change order without stopping machine automatically or manually; - Spiral knife, cutting with small force , high efficiency;
- Spiral blade made of special materials, the knife roller design is reasonable, long tool life;
- The design of mechanical structure is reasonable, nice mechanical appearance;
- Adopt sophisticated gear transmission, by forging, finishing machining and heat treatment process; small gear backlash , low noise, stable transmission;
- Corrugated cardboard machine and cardboard cutting machine and slitting machine also could be made in very good quality.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for boxing machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
