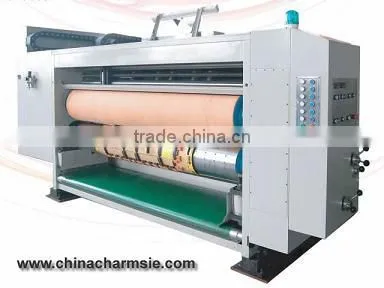

GIGA LX 307 Corrugated Box Printing Machine
US$ 90,000 - 650,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Making carton or box
Packaging Type:
Other, In steel pallet
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GIGA-LXC High Speed Cardboard Recycling MachineUS$ 600,000 - 1,100,000MOQ: 1 Set -
GIGI LX Computerized Corrugated Carton MachineUS$ 200,000 - 600,000MOQ: 1 Set
-
GIGA LXC Auto Printing and Folding MachineUS$ 150,000 - 250,000MOQ: 1 Set
-
GIGA LXC High Quality Automatic Feeding For Gluing MachineUS$ 150,000 - 250,000MOQ: 1 Set
-
GIGA LX AFH1 Used Auto Feeder For Carton Making MachineUS$ 150,000 - 250,000MOQ: 1 Set
Condition
New
Application
Other, Making carton or box
Packaging Type
Other, In steel pallet
Packaging Material
Other, Pallet
Automatic Grade
Automatic
Driven Type
Electric
Voltage
380V
Power
15.5-45
Place of Origin
Shanghai, China
Brand Name
GIGA-LX
Model Number
LX307/8
Dimension(L*W*H)
8000x7000x2200
Certification
Got CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Compensation device2.Memory 999order
3.CNC difference adjusting system for die cutter unit
4.Flexo printing machine Got CE
LX-307/8 Automatic flexo printing, slotting & die cutting machine
Automatic Flexo Printing Machine Main Functions:
- Touch screen and electric control dual system lx308
- All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62
- CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
- Functions of intelligent zero returning and memory reset 999 order memory
- The transmission system adopts two oil pumps circulating lubrication
- The E flute cardboard could be used and printing with the carton printing machine LX-308.
- Feeding Unit
Servo control Lead edge feeder--patent #ZL2005 2 0045628.x (Back-pushing suck blower feeding system is option);
- Servo motor-quick react, lx308precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
- Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;
- Pressure-free stretching feeding mechanism is the option;
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for carton machine LX308N, LX-608CN LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
Printing Unit
- Printing machine forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface
- Dynamic and static balancing make steadily running
- Hanging forme, make installation easy and quick
- Forme changing both foot switch, and/or electric control (forward / backward run)
- Anilox roller auto lifting device synchronous working with paper feeding system (In feeding, anilox roller pressed whereas in stop, it released), lanetary gear phasing structure.
- Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition
- Motorized adjusts digital display the transversal position of the forme roller, up to 20 mm
- Electromagnetic clutch printing phase braking mechanism.
Slotting Unit
- 7 mm thick slotting knives are made of alloy tool steel , sharpened endurable teeth
- Transverse movement of scoring wheel, doctor wheel and slotting head controlled by motorized button control, easy and quick-carton making machine
- Pre-scoring wheel: Pre-scored paperboard will not crush
- Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
- Bi-plate trimming knives with sharpened, endurable teeth.
Die Cutting Unit
- Dynamic balancing correction enhances running stability
- Box making machine anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface.
- Mechanical drive anvil roller transverse moves up to ±30mm, and installed with radial differential device, evenly spread/distribute abrasion to improve the life of anvil roller
- Mould roller and anvil roller can be apart by the air cylinder eccentric mechanism during non-working condition in order to decrease the load of the machine and to prolong the life of the cutting mould and urethane rubber
- Unique speed difference compensation device to make a perfect die cutting
Stacking Unit
- Connection arm has manual and automatic operation methods
- Tension of the driving belt of connection arm can be adjusted alone; quantity of connection arms can be set at will
Model |
1800/2200x1000 |
2500x1200/1400/1600 |
2800x1200/1400/1600 |
|
Max. machine speed (pcs/min) |
200 |
160/140/120 |
160/140/120 |
|
Max. printing speed(pcs/min) |
180 |
120 |
120 |
|
Max. feeding size(mm) |
1770/2170*970 |
2500*1170/1370 |
2500*1170/1370 |
|
Skip feeding size(mm) |
1770/2170*1170 |
2500*1370/1570/1770 |
2500*1370/1570/1770 |
|
Min. feeding Size(mm) |
650*280 |
650*380/400/450 |
700*380/400/450 |
|
Feeding depth (mm) |
2.5-10 |
2.5-10 |
2.5 - 10 |
|
Min. slot interval |
Positive cut (mm) |
120*120*120*120 |
140*140*140*140 |
140*140*140*140 |
|
Reverse cut (mm) |
190*50*190*50 |
250*80*250*80 |
250*80*250*80
|
|
Max. printing area(mm) |
1750/2150*950 |
2450*1150/1350 |
2750*1150/1350 |
|
Standard printing plate thickness(mm) |
7.2 |
7.2 |
7.2 |
|
*Subject to change and improvement without notice
