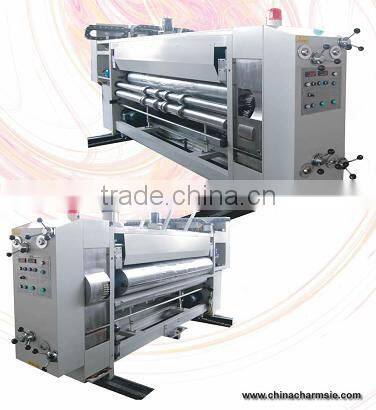

GIGA LX Used Automatic 4 Colour Flexo Printing Machine for Russia
US$ 130,000 - 400,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, Flexo
Place of Origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Port of Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GIGA LX Used Automatic 4 Colour Flexo Printing Machine for IndonesiaUS$ 130,000 - 400,000MOQ: 1 Set -
GIGA LXC-288D Automatic Glue MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
GIGA LX 707 Folder GluerUS$ 100,000 - 500,000MOQ: 1 Set
-
GIGA LX 707 Cardboard Cutting MachineUS$ 100,000 - 500,000MOQ: 1 Set
-
Loan for GIGA LX Carton Box Making Machine PricesUS$ 130,000 - 550,000MOQ: 1 Set
Condition
New
Plate Type
Other, Flexo
Place of Origin
Shanghai, China
Brand Name
GIGA LX
Model Number
LX308
Usage
Other, Making carton cardboard
Automatic Grade
Automatic
Voltage
380V
Gross Power
30-45kw
Dimensions(L*W*H)
8000x7000x2200
Weight
9MT-25MT
Certification
Got CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Touch-screen,Got CE2.4 colour flexo printing machine
3.Memory order999 slotting machine
4.CNC adjusting system die cutter
LX308 Automatic Flexo Printing Slotting and Die Cutting Machine
Automatic 4 Colour Flexo Printing Machine
Main functions:
- Touch screen and electric control dual system lx308
- All transmission gears are made of high quality alloy steel (20CrMnTi) grinded under high temperature with hardness HRC58-62
- CAPT-LOCKS union link to reduce the connect interval and keep long lasting overprint precision
- Functions of intelligent zero returning and memory reset 999 order memory
- Suitable for small and middl-big size carton and many order change
- The transmission system adopts two oil pumps circulating lubrication
- Flexo printing machine and 4 colour flexo printing machine are made in very good quality.
We provide loan to below business situation
1. The value of order over RMB 1 million (including 1 million).
2. Only for box machine LX308N; LX608CN; LX707N or corrugated machine production line include LXC-180NN, LXC-220H1.8N models.
3. We accept O/A (Open account), it based on the credit level of buyer's bank credit report.
4. The details please consult with our sales department.
Feeding Unit
- Servo control Lead edge feeder--patent #ZL2005 2 0045628.x (Back-pushing suck blower feeding system is option);
- Servo motor-quick react, lx308precision positioning, system stability and durability. Electrical camshaft supersedes mechanical style;
- Synchronous belt un-interval links feeding shaft with servo motor shaft, to improve feeding precision alignment; Half-wheel, quick replacing structure, to keep consistency of feeding position, and to avoid uneven wearing on the surface of feeding wheel;
- Pressure-free stretching feeding mechanism is the option;
Printing Unit
- Box machine forme roller and pressure roller are made of high quality steel, with grinded and chrome plated surface, Dynamic and static balancing make steadily running, Hanging forme, make installation easy and quick, Forme changing both foot switch, and/or electric control (forward / backward run), Anilox roller auto lifting device synchronous working with paper feeding system (In feeding, anilox roller pressed whereas in stop, it released)
- Planetary gear phasing structure
- Printing phase automatic 360 degree adjust by PLC, touch screen and motorized digital control. Forme roller intelligent zero returning, short cut resetting under dynamic and static condition
- Motorized adjusts digital display the transversal position of the forme roller, up to 20 mm
Slotting Machine Unit
- Pre-scoring wheel: Pre-scored paperboard will not crush
- Upper scoring wheel coated by polyurethane to avoid possible crush on the paperboard
Die Cutting Unit
- New CNC difference adjusting system for rotary die cutting,
- Adjusting the error and difference of die-cutter's Cardboard,
- Easy operation
- Anvil roller and mould roller adopts high-grade steel with finely reground and chrome plated surface. Dynamic balancing correction enhances running stability
- Mechanical drive anvil roller transverse moves up to ±30mm, and installed with radial differential device, to improve the life of anvil roller
- Unique speed difference compensation device makes the anvil roller slide together to make a perfect die cutting
Stacking Unit
- Connection arm has manual and automatic operation methods
- Tension of the driving belt of connection arm can be adjusted alone; quantity of connection arms can be set at will
- Platform elevation and transmission motor has braking function,
- A pneumatic controlled plate, Anti slipping belt used in the transport bed lx307
Model | 1800/2200x1000 | 2500x1200/1400/1600 | 2800x1200/1400/1600 | |
Max. machine speed (pcs/min) | 200 | 160/140/120 | 160/140/120 | |
Max. printing speed(pcs/min) | 180 | 120 | 120 | |
Max. feeding size(mm) | 1770/2170*970 | 2500*1170/1370 | 2500*1170/1370 | |
Skip feeding size(mm) | 1770/2170*1170 | 2500*1370/1570/1770 | 2500*1370/1570/1770 | |
Min. feeding Size(mm) | 650*280 | 650*380/400/450 | 700*380/400/450 | |
Feeding depth (mm) | 2.5-10 | 2.5-10 | 2.5 - 10 | |
Min. slot interval | Positive cut (mm) | 120*120*120*120 | 140*140*140*140 | 140*140*140*140 |
Reverse cut (mm) | 190*50*190*50 | 250*80*250*80 | 250*80*250*80
| |
Max. printing area(mm) | 1750/2150*950 | 2450*1150/1350 | 2750*1150/1350 | |
Standard printing plate thickness(mm) | 7.2 | 7.2 | 7.2 | |
*Subject to change and improvement without notice,
