QT4-15 coal ash brick making machine,brick mesh machine
- 10 Set / Sets per Month
- QINGDAO
- Cheap factory price QT4-15c cement block making machine sale in ethiopia cement block cement block making machines price
- QT4-15 cement brick machine manufacturers,face brick making machine
- WANTE QT10-15 automatic concrete block machine block maker machine Supplier's Choice
- WANTE MACHINERY QT10-15 automatic concrete brick machine for sale
- QT4-15 concrete bricks manufacturing machine Supplier's Choice
- QT4-15 cement concrete block making machine,brickwall making machine
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 7800-30000Day | Place of Origin: | Shandong, China | Brand Name: | Wante |
Model Number: | QT4-15C | Voltage: | 220V/380V/440V | Power: | 27.5kw |
Dimension(L*W*H): | 2060*1730*2580mm | Certification: | CE/SGS/ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Dear customers,Welcome to Linyi wante machinery Co.,ltd.
Home page Product catalogue company profile contact us
1>Big capacity, multi-purpose fully automatic line.it can produce both hollow blocks,solid blocks,paving blocks and curbstone.The pallet size is 1010*550*30mm,can produce more solid blocks.
2.Host machine structure is bigger and strong,made by chinese standard steel.host machine size is 2500*1630*2600mm.
3.with 2 hydraulic cylinder pressure ,good density of blocks.
4. there has 10 rubber column under the vibrator platform,which can reduce vibrator force.
5.with omron brand infrared sensor,mitubishi brand PLC,siemens motor.
6.synchhronizing system to make sure the height of each block is the same.
QT4-15 Specification
Cement silo | ||||
Length | 11M | |||
capacity | 50T | |||
Diameter | 2.15M | |||
Total weight | 5T | |||
| PLD800 batching machine | |||
Weigh bucket capacity (L) | 800 | |||
Productivity m3/h) | 48 | |||
Batching precision | ±1% | |||
Max weighing capacity (kg) | 3000 | |||
Number of material matching | 2 | |||
Work loading height (mm) | 3000 | |||
Feeding belt speed (m/s) | 1 | |||
Power (kw) | 12 | |||
Gross weight (kg) | 3000 | |||
Dimension (mm) | 5800*2200*3500 | |||

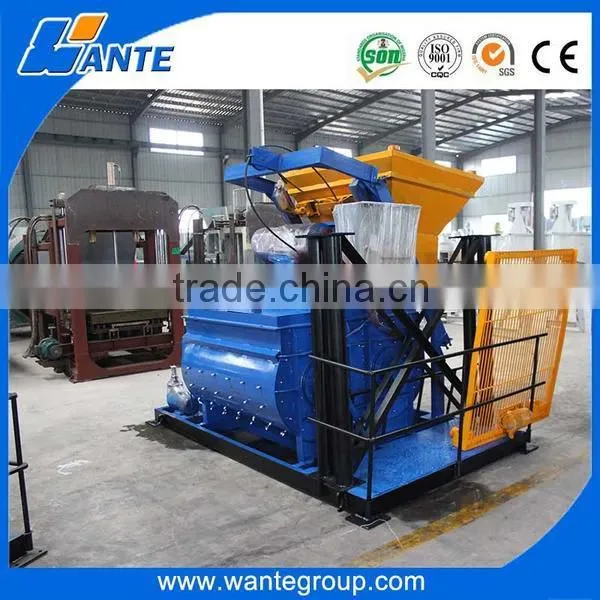

| JS500 mixer | |||
Charging Capacity (L) | 800 | |||
Discharging Capacity (L) | 500 | |||
Production Capacity (m3/h) | ≥25 | |||
Max Aggregate Diameter mm | ≤40/60 | |||
Cycle Time (s) | 72 | |||
Stirring Vane | Rev Speed (r/min) | 31 | ||
| Quantity | 2×7 | ||
Stirring Motor | Model |
| ||
| Power (KW) | 18.5 | ||
Lifting Motor | Model |
| ||
| Power (KW) | 5.5 | ||
Pump Motor | Model |
| ||
| Power (KW) | 0.75 | ||
Dimensions ( mm) | Travel State | 3030×2520×2880 | ||
| Operation State | 5025×3100×5680 | ||
Total weight (Kg) | 3500 | |||

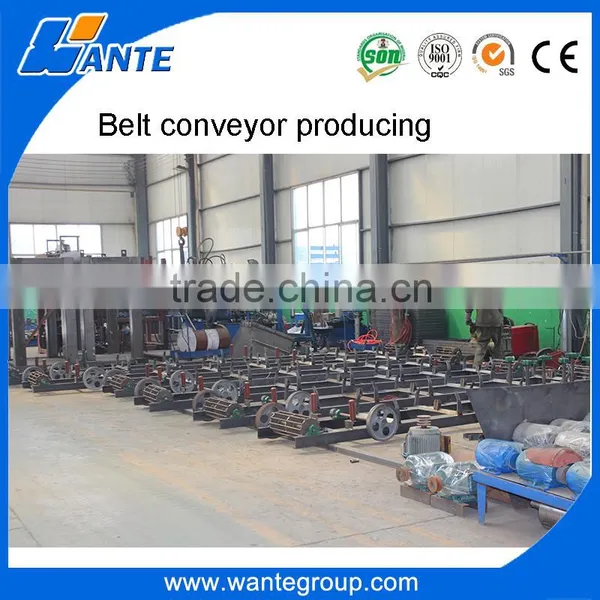

Conveyor belt | ||||
Belt width (M) | 6 | |||
Belt length (M)/KW | 6/2.2 | |||
Belt speed (M/S) | 2 | |||
| QT4-15C block machine | |||
Overall size | 3500x2100x2550mm | |||
Shaping cycle | 15-18 seconds | |||

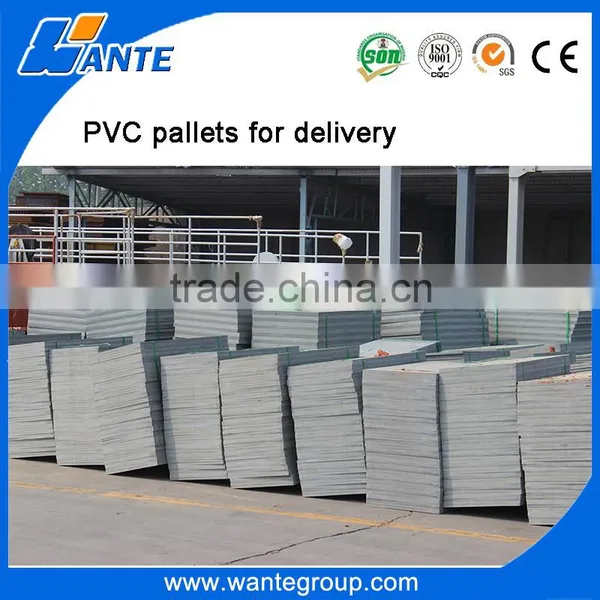

Pallet size | 1010x550x25mm (bamboo) | |||
1010x550x25mm (plastic) | ||||
Vibration frequency | Max.4500 R/Min | |||
Electricity | 380V/220V/ (adjustable) | |||
Vibration force | 55KN | |||
Total weight | 5000 KGS | |||
Block sweeper | ||||
Overall size | 2100(L)×1200(W)×600(H)mm | |||
KW | 0.75 | |||
Electricity | 380V/220V/ (adjustable) | |||
Total weight | 230KGS | |||
Stacker machine | ||||
Overall size | 2100(L)×1800(W)×2300(H)mm | |||
Power (KW) | 3KW | |||
Electricity | 380V/220V/ (adjustable) | |||
Stacker layer | 3 floor | |||
Speed | 0.5M/S | |||
Total weight | 2000KGS |
QT4-15 capacity
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day |
1 | 400x200x200mm | 4 | 960 | 7680 |
2 | 400x150x200mm | 5 | 1200 | 9600 |
3 | 400x100x200mm | 8 | 1680 | 13440 |
4 | paver:230x115x75mm | 16 | 2880 | 23040 |
5 | paver:200x163x60 | 8 | 1440 | 11520 |
Choose your ideal block design
Linyi Wante Machinery Group has long endeavored to the researched ,production and sales of the block making machine.With over 20 years of plant history and more than 100 hundred countries and area customers,our group rapidly developed into the leading enterprises in the industry .
We have been adhering to the "customer first, quality first" business philosophy .With board domestic and international sales network and excellent after-sales service team, we gain the initiative in the fierce market competition, “WANTE” brand reputation is famous in domestic and international market.
Now our main products including Lego interlocking brick machine , Fully automatic block making machine line , Stone coated metal roof tile, AAC light weight production line etc. Widely used in building construction fields ,road and bridge ,energy and other area.
And now you will be our next friends and clients! Warmly welcome to visit our factory in Linyi city, Shandong province.
If you are interested in our machine
-------------------------------------------------------------------------------------------------------------------
Click here to send message
-------------------------------------------------------------------------------------------------------------------
we can supply you best solution
Company Profile
Linyi Wante Machinery Co., Ltd. has long engaged in the research, production and sales of block making machines. There is state-of-the-art equipment, superb technology and high-standard test bases. Our company has always been adhering to the "integrity, pragmatism, innovation, development" spirit of enterprise, constantly absorbing domestic and foreign advanced technologies and mature experience. After 10 years of unremitting efforts, we have rapidly developed into a leading enterprise in the industry.
Our main products: aerated concrete production lines, concrete block making machines, hydraulic paver block machines, cement pipe machines, widely used in building materials, roads and bridges, energy and others. On the foundation of the domestic market, we focus on the development of international market. Our products have been exported to more than 100 countries and regions, such as Africa, Southeast Asia, the Middle East and South America, with frequent international business dealings. We have established a good market reputation.
Our company has a perfect quality management system, and has passed the ISO9001:2000 international quality management system certification. Besides, our company has established our own sales network in many countries around the world, and has set up sales branches and service outlets in major cities across the country. So we are able to provide our clients with timely and convenient service.
We adhere to the brand philosophy that "excellence, do first-class products, creating a model for the industry", and enhance the brand ideology of "building the brand quality, service, innovation, positive enterprising, noble professionalism" to drive our company forward to a first-class enterprise.
