WANTE MACHINERY QT10-15 automatic concrete brick machine for sale
<1>Kinds of blocks
QT10-15 block making machine can produce many kings of blocks, such as hollow blocks, paver blocks, cubstone and so on, which are widely used in building construction field, bridge, energy and other areas.
<2>Packaging
Nude package
<3>Advantages
1, Material and welding: all material and spare parts selected according international CE standard, Carbon dioxide protection welding will assure whole line stable running.
2, Control PLC: we select original Mitsubishi PLC combine with independently develop machine control program, assurestable and high-efficiency working status.
3, Switches and motor: Switches will use Japan Omron and France Schneider brand, motor will use Siemens or ABB brand.
4, Hydraulic system: Hydraulic spare parts be ordered according our block machine characteristics from Taiwan.
5, Mould: newest heat treatment device assure longer mould life span.
6, Spare part: follow the machine shipment, we supply suitable wearing parts, the after-sale service will be faster.

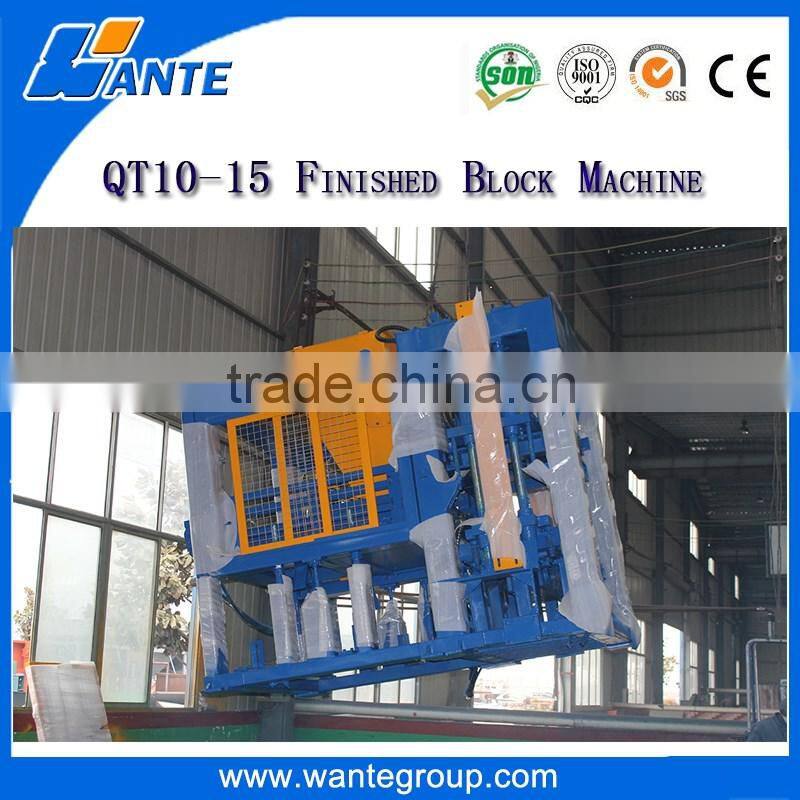

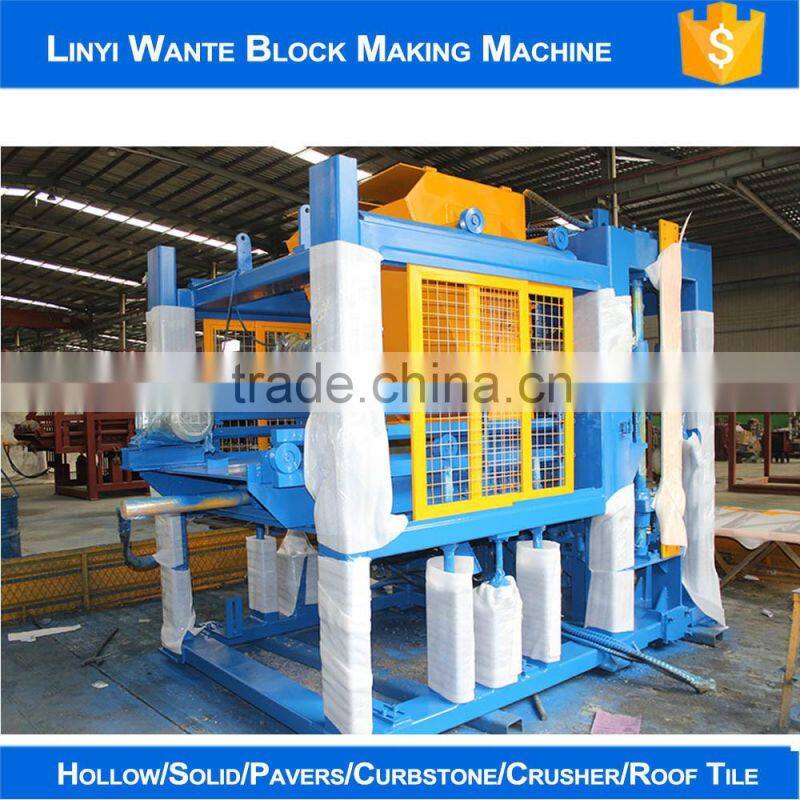

Photos of WANTE MACHINERY QT10-15 automatic concrete brick machine for sale in our factory
Equipment characteristics of WANTE MACHINERY QT10-15 automatic concrete brick machine for sale:
1> Designed and manufactured with Germany technology.
2> Multi-functional: it can make various bricks by different moulds
3>Equipped with Siemens motors and Mitsubish PLC
4>Rotating forced fast distributing method has ensured the full density of load bearing block, lightweight aggregate block, fly ash block and shortened the time of material distributing.
5>The application of imported PLC and color touch screen has realized the automation of high automatic block machine line QT10-15, saved operation time interval and improved productivity.
6>The body is made of thick super-strong steel with special welding technology, very strong, vibration resistant, and with strong exciting force.
7>The control system adopts automatic control method, so the operation is simple and easy to understand.

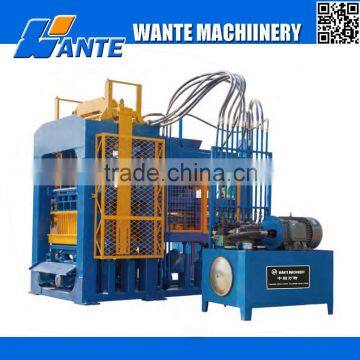

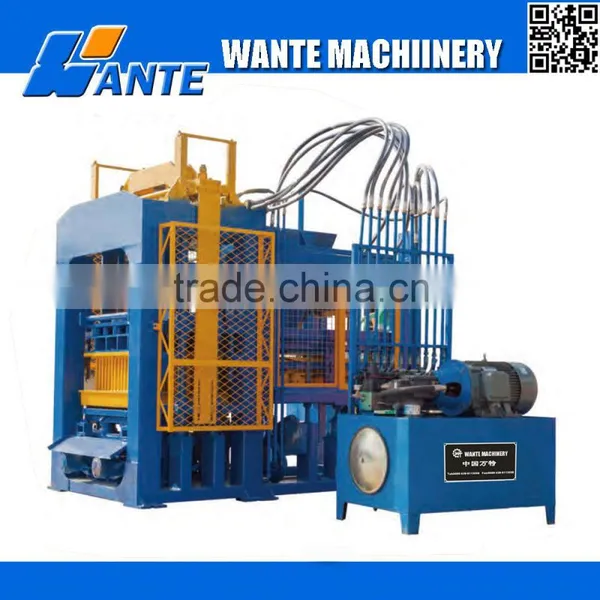

Host Machine
QT10-15 automatic concrete brick machine for sale specifications | |
Overall size | 3500x2220x2850mm |
Shaping cycle | 15-18 seconds |
Pallet size | 1300x900x30mm (bamboo) |
| 1300x900x30mm (plastic) |
Vibration frequency | Max.5500 R/Min |
Electricity | 380V/220V/ (adjustable) |
Vibration force | 120KN |
Total weight | 13000 KGS |

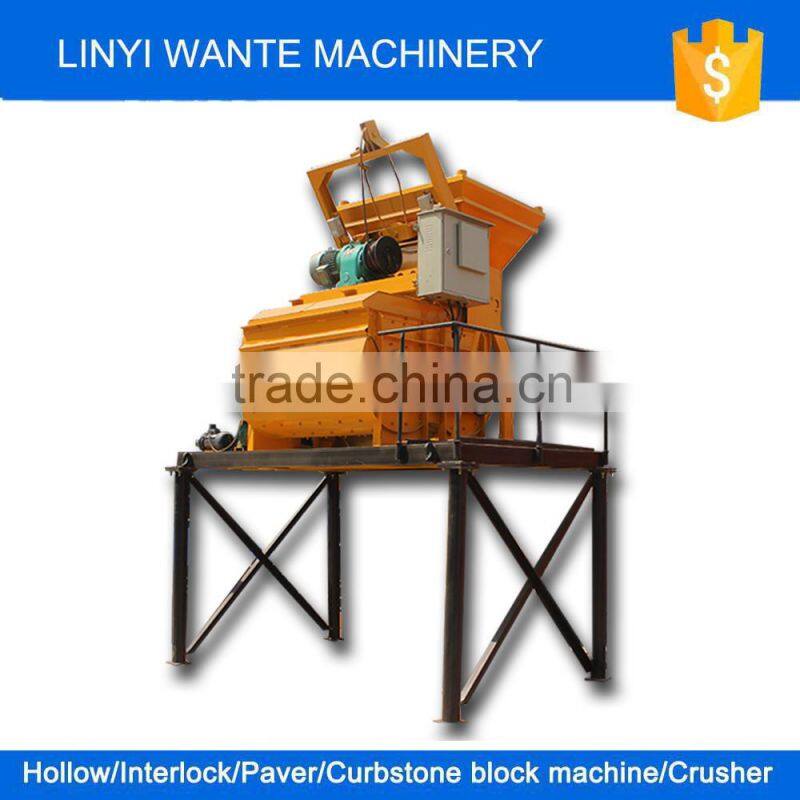

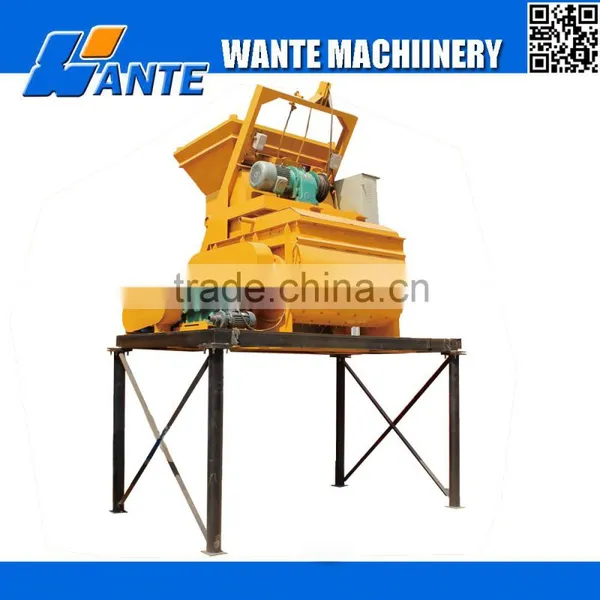

JS750 MIXER
JS750 mixer | ||
Charging Capacity (L) | 1000 | |
Discharging Capacity (L) | 750 | |
Production Capacity (m3/h) | ≥25 | |
Max Aggregate Diameter (mm) | ≤40/60 | |
Cycle Time (s) | 72 | |
Stirring Vane | Rev Speed (r/min) | 31 |
Stirring Motor | Quantity | 4×7 |
| Model |
|
Lifting Motor | Power (KW) | 25.5 |
| Model |
|
Pump Motor | Power (KW) | 5.5 |
| Model |
|
Dimensions ( mm) | Power (KW) | 0.75 |
| Travel State | 3230×2520×2880 |
| Operation State | 5525×3100×5680 |
Total weight (Kg) | 6500 | |

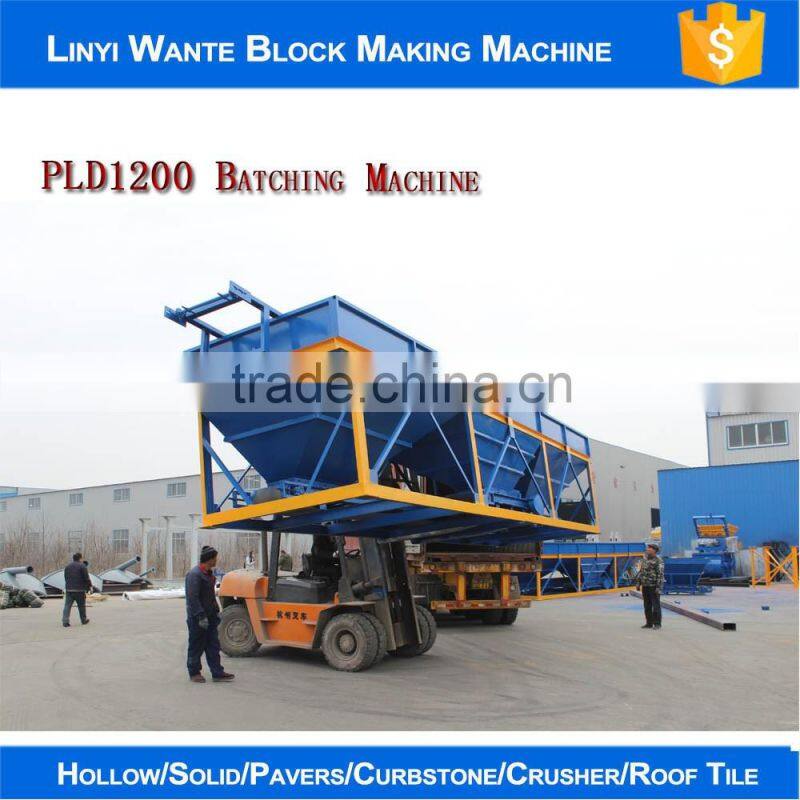

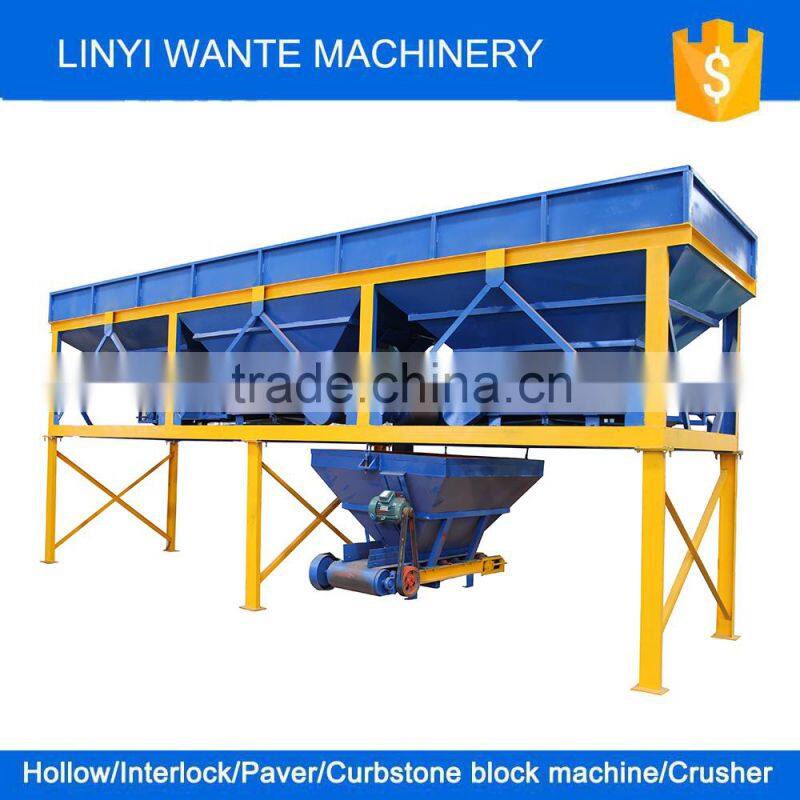

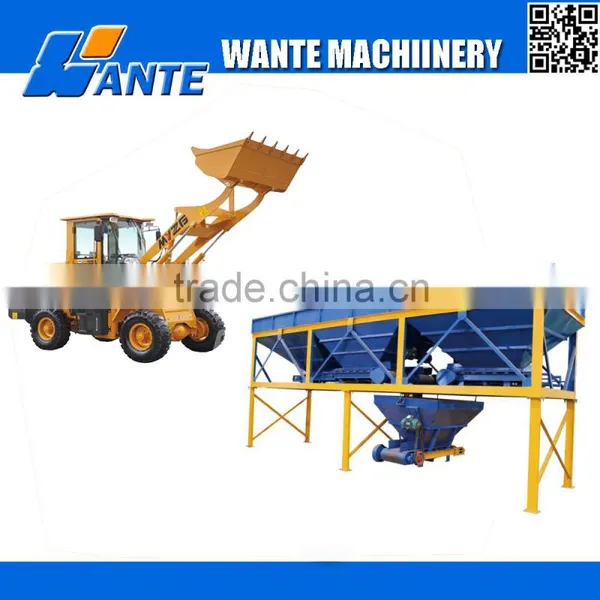

PLD1200 BATCHING MACHINE
PLD1200 batching machine | |
Weigh bucket capacity (L) | 1200 |
Productivity (m3/h) | 56 |
Batching precision | ±1% |
Max weighing capacity (kg) | 3000 |
Number of material matching | 3 |
Work loading height (mm) | 3000 |
Feeding belt speed (m/s) | 1 |
Power (kw) | 12 |
Gross weight (kg) | 4000 |
Dimension (mm) | 9000*2200*3500 |

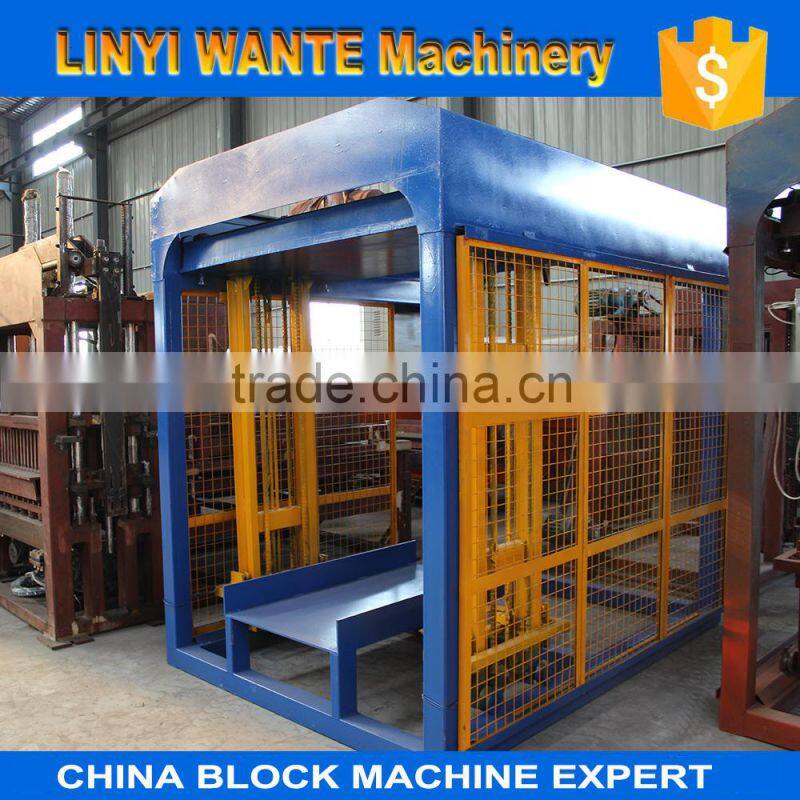

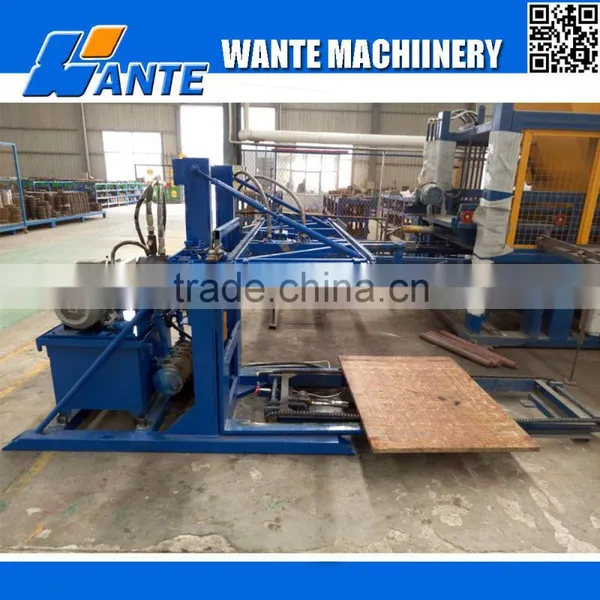

STACKER MACHINE
Stacker machine | |
Overall size | 2100(L)×1800(W)×2300(H)mm |
Power (KW) | 3KW |
Electricity | 380V/220V/ (adjustable) |
Stacker layer | 3 floor |
Speed | 0.5M/S |
Total weight | 2000KGS |
capacity of QT10-15 automatic concrete brick machine for sale
Production capacity | ||||
Size(L x W x H) | Pcs /Mould | Pcs / Hr |
| |
400X100X200 | 20 | 3000-3600 |
| |
400X150X200 | 14 | 2100-2520 |
| |
400X200X200 | 10 | 1500-1800 |
| |
400X250X200 | 8 | 1200 | ||
Hollow blocks

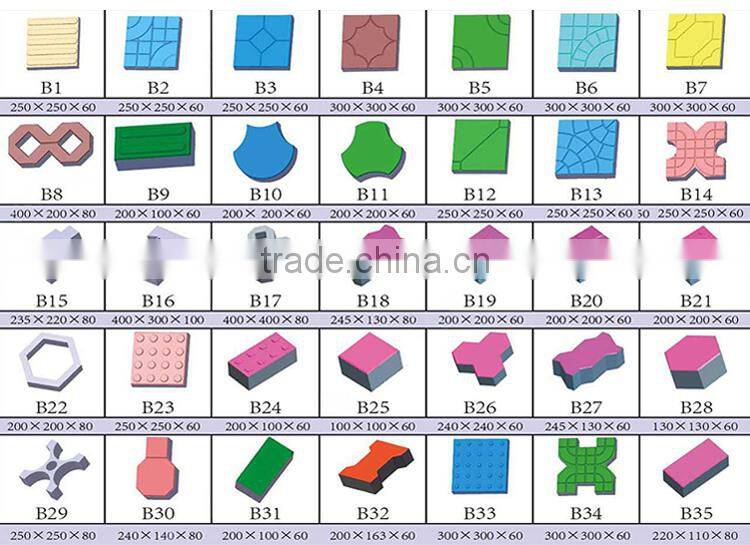

Paver blocks

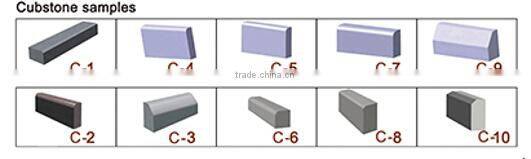

Curbstone

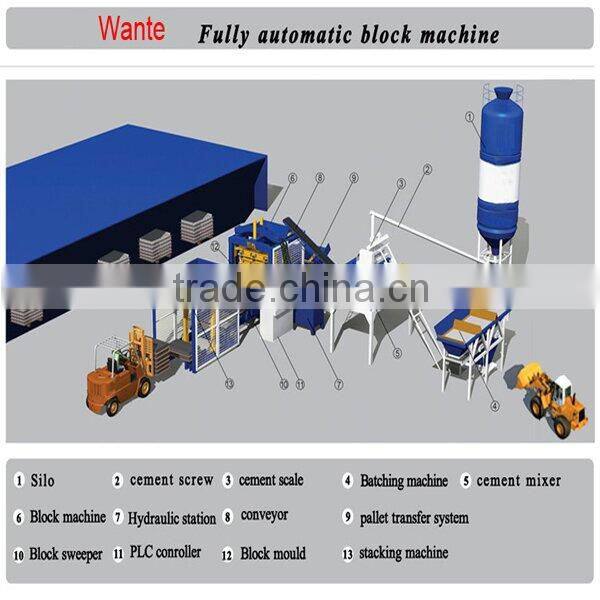

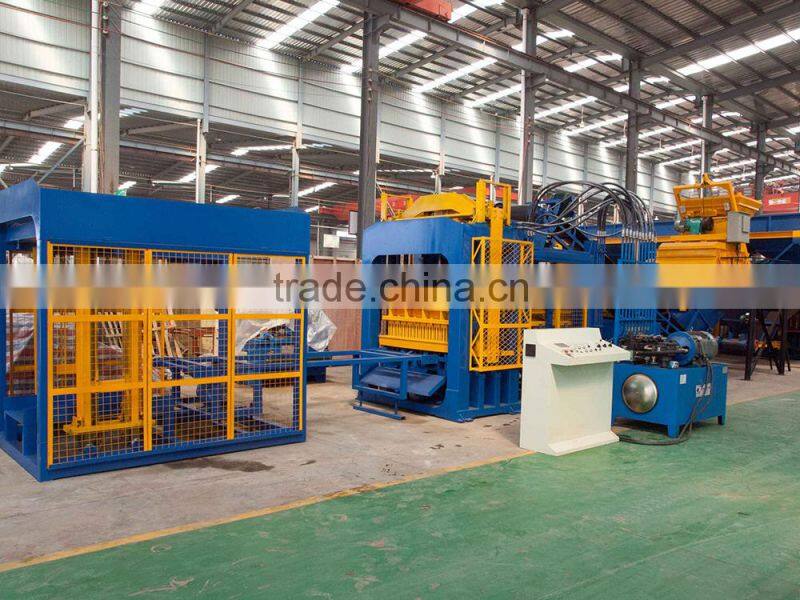

Whole production working line show
Delivery photos
About us
This is the most popular proportion in making block making machine:
1.cement,sand,stone (standard concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
River sand | 40% |
Crushed stone | 45% |
Other specify | You can change the proportion depend on your needs. This block is heavy,but strong |
2.cement,slag (light concrete block)
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
slag | 80-90% |
Other specify | You can change the proportion depend on your needs. This block is light, not so strong |
3.cement,sand,stone,slag
Raw Materials | Quantity per piece |
Water | 3% |
Cement | 9-12% |
Sand | 10-20% |
Stone | 30-40% |
slag | 25-50% |
Other specify | You can change the proportion depend on your needs. This block is a little light, stron |
