QT4-15 concrete bricks manufacturing machine introduction |

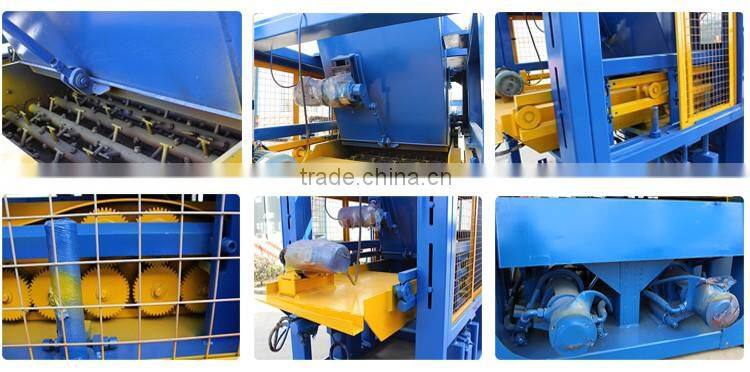

1>Big capacity, multi-purpose fully automatic line.it can produce both hollow blocks,solid blocks,paving blocks and curbstone.The pallet size is 1010*550*30mm,can produce more solid blocks.
2.Host machine structure is bigger and strong,made by chinese standard steel.host machine size is 2500*1630*2600mm.
3.with 2 hydraulic cylinder pressure ,good density of blocks.
4. there has 10 rubber column under the vibrator platform,which can reduce vibrator force.
5.with omron brand infrared sensor,mitubishi brand PLC,siemens motor.
6.synchhronizing system to make sure the height of each block is the same.

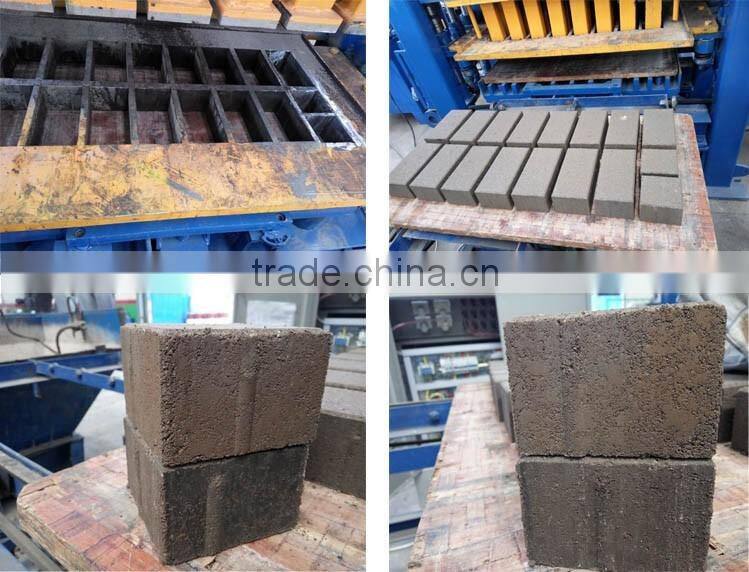

QT4-15 concrete bricks manufacturing machine capacity |
No. | Block size | Pcs/mould | Pcs/hour | Pcs/day |
1 | 400x200x200mm | 4 | 960 | 7680 |
2 | 400x150x200mm | 5 | 1200 | 9600 |
3 | 400x100x200mm | 8 | 1680 | 13440 |
4 | paver:230x115x75mm | 16 | 2880 | 23040 |
| 5 | paver:200x163x60 | 8 | 1440 | 11520 |
QT4-15 concrete bricks manufacturing machine line parts |
| Cement silo | |||
Length | 11M | |||
capacity | 50T | |||
Diameter | 2.15M | |||
Total weight | 5T | |||

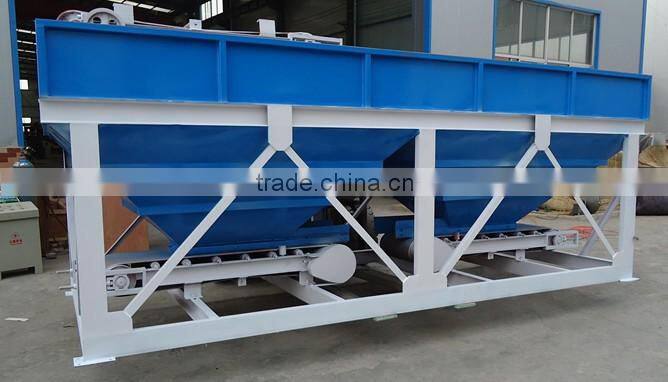

| PLD800 batching machine | |||
Weigh bucket capacity (L) | 800 | |||
Productivity m3/h) | 48 | |||
Batching precision | ±1% | |||
Max weighing capacity (kg) | 3000 | |||
Number of material matching | 2 | |||
Work loading height (mm) | 3000 | |||
Feeding belt speed (m/s) | 1 | |||
Power (kw) | 12 | |||
Gross weight (kg) | 3000 | |||
Dimension (mm) | 5800*2200*3500 | |||

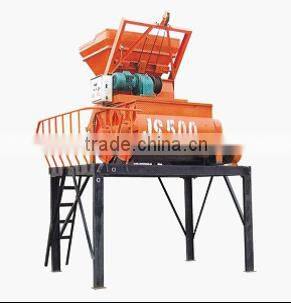

| JS500 mixer | |||
Charging Capacity (L) | 800 | |||
Discharging Capacity (L) | 500 | |||
Production Capacity (m3/h) | ≥25 | |||
Max Aggregate Diameter mm | ≤40/60 | |||
Cycle Time (s) | 72 | |||
Stirring Vane | Rev Speed (r/min) | 31 | ||
| Quantity | 2×7 | ||
Stirring Motor | Model |
| ||
| Power (KW) | 18.5 | ||
Lifting Motor | Model |
| ||
| Power (KW) | 5.5 | ||
Pump Motor | Model |
| ||
| Power (KW) | 0.75 | ||
Dimensions ( mm) | Travel State | 3030×2520×2880 | ||
| Operation State | 5025×3100×5680 | ||
Total weight (Kg) | 3500 | |||

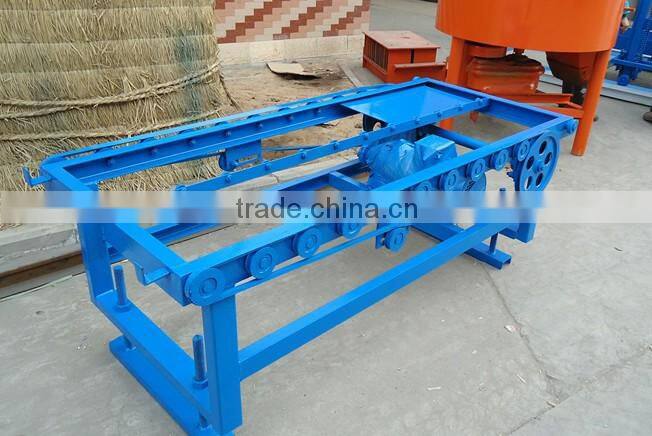

| Conveyor belt | |||
Belt width (M) | 6 | |||
Belt length (M)/KW | 6/2.2 | |||
Belt speed (M/S) | 2 | |||

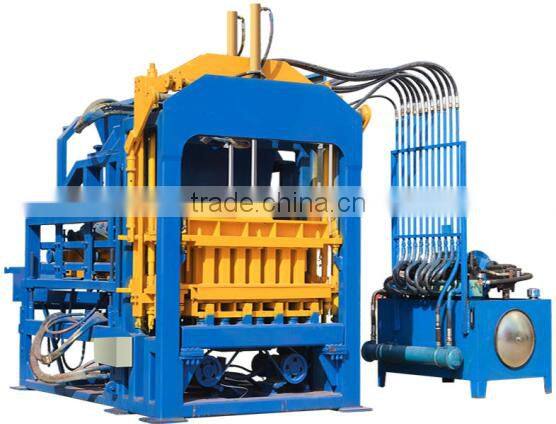

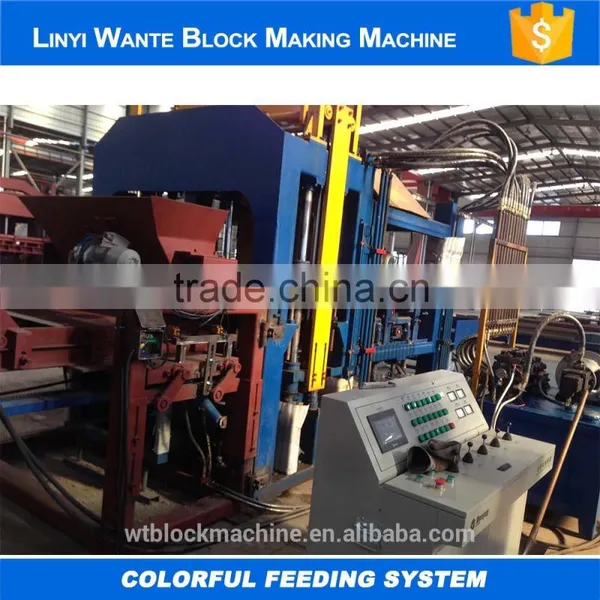

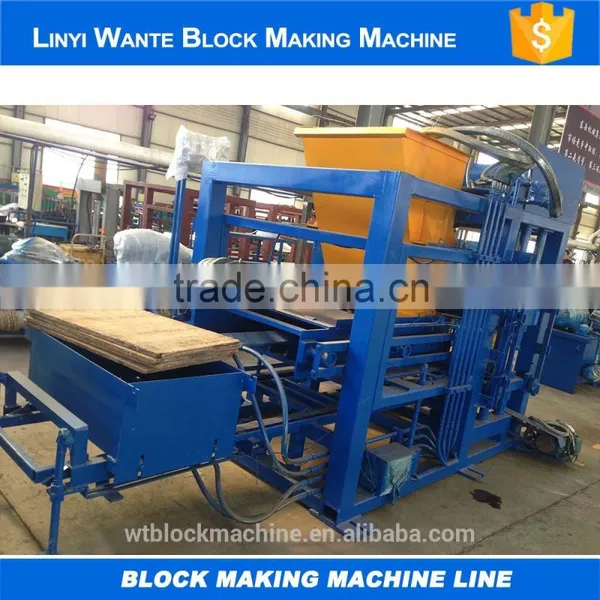

| QT4-15C block machine | |||
Overall size | 3500x2100x2550mm | |||
Shaping cycle | 15-18 seconds | |||
Pallet size | 1010x550x25mm (bamboo) | |||
1010x550x25mm (plastic) | ||||
Vibration frequency | Max.4500 R/Min | |||
Electricity | 380V/220V/ (adjustable) | |||
Vibration force | 55KN | |||
Total weight | 5000 KGS | |||
| Block sweeper | |||
Overall size | 2100(L)×1200(W)×600(H)mm | |||
KW | 0.75 | |||
Electricity | 380V/220V/ (adjustable) | |||
Total weight | 230KGS | |||

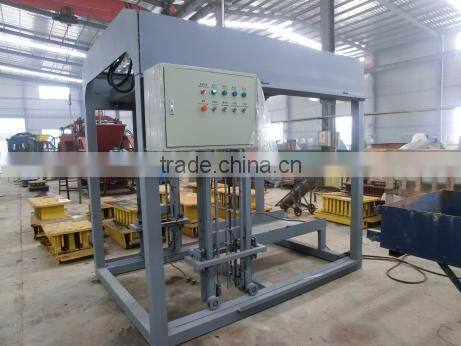

| Stacker machine | |||
Overall size | 2100(L)×1800(W)×2300(H)mm | |||
Power (KW) | 3KW | |||
Electricity | 380V/220V/ (adjustable) | |||
Stacker layer | 3 floor | |||
Speed | 0.5M/S | |||
Total weight | 2000KGS | |||

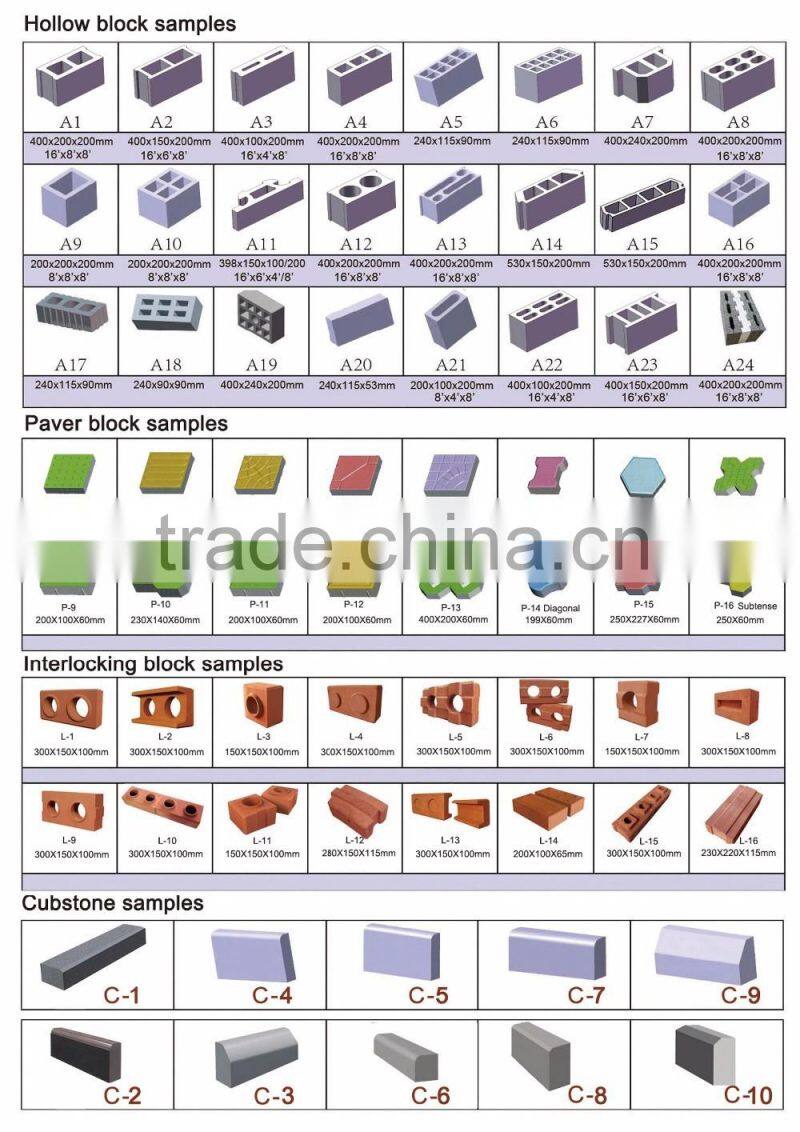

QT4-15 concrete bricks manufacturing machine Choose your block design:
