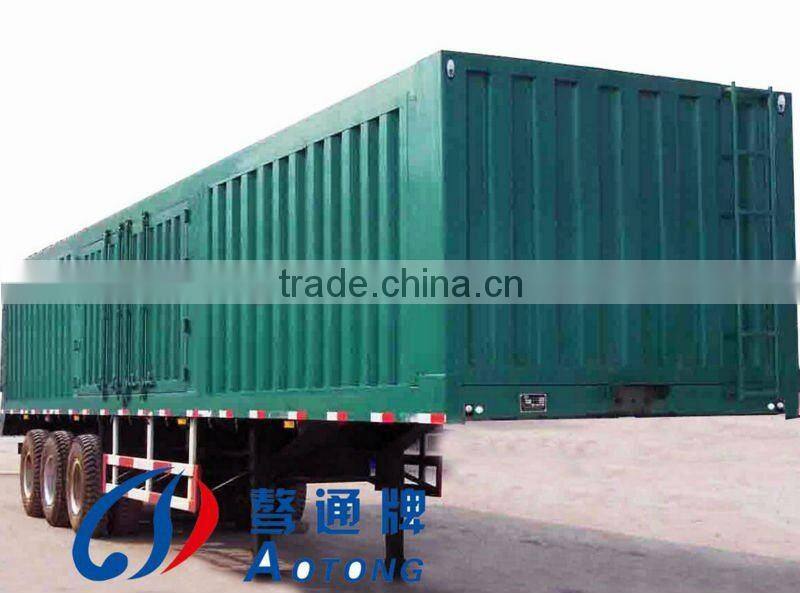

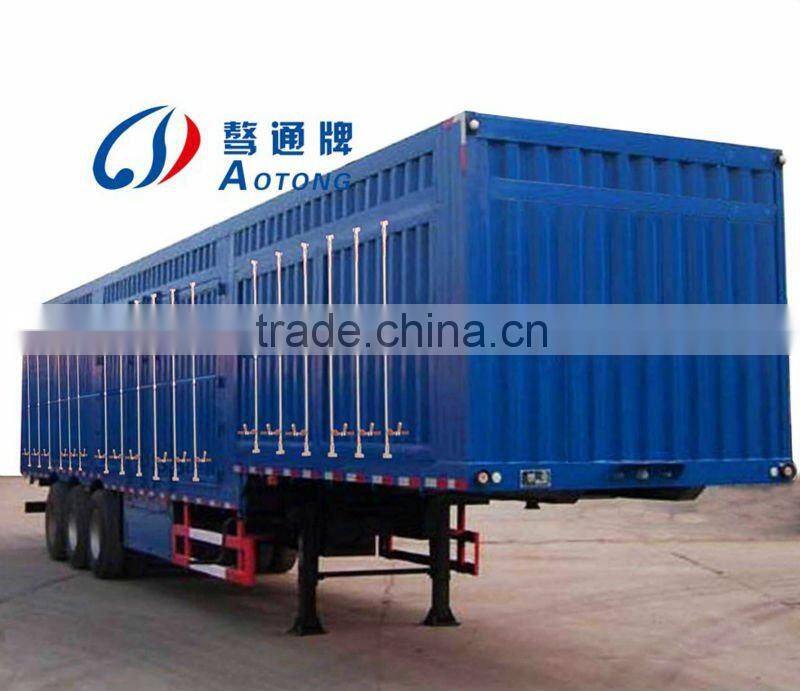

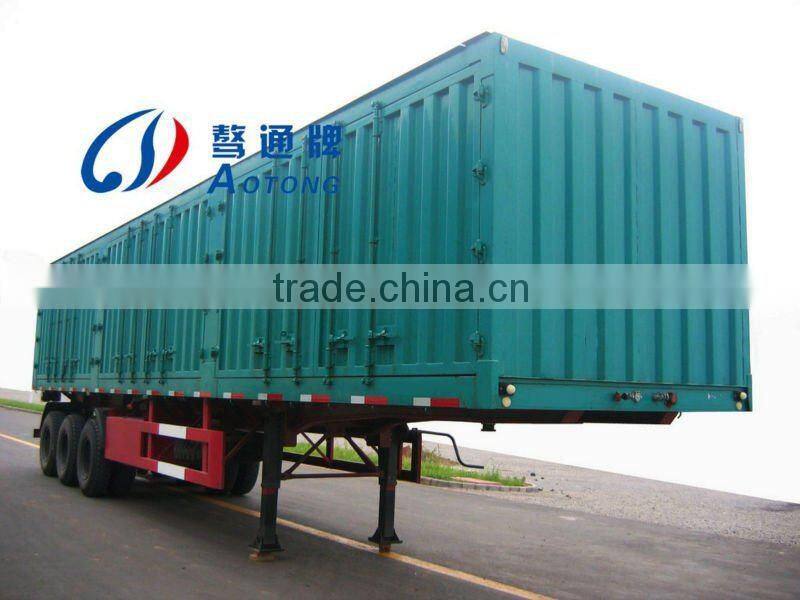

Van Cat Trailer

Product Information

Product

Van semi trailer

Brand Name

Aotong Brand

Model Number

LAT9407XXY

Announcement (batch)

229

Place of Origin

Shangdong province, China

Color

Any color will be available

Manufacture

Liangshan Juyuan special vehicle manufacturing Co., Ltd

Product Specifications

Total Weight

40000 kg

Rated Load

32500 kg

Tare Weight

7500 kg

Wheel Base

6810+1310+1310 6510+1310+1310 (mm)

Tyre Specifications

425/65R22.5 20PR

No. Of the Tyres

6

Axle Brand

FUWA (BPW optional)

No. Of the Axles

3

Axle-load

24000 kg

Pieces of leaf-spring

10 (8) (4)

Suspension

is constitute by tandem steel plate spring and bearing legs.

Departure Angle

13/15

Front/Rear Overhang

2400 mm

Outside Dimensions (LxWxH)

13000,12500X2550X4000,3800,3600,3400 (mm)

Interior Dimensions (LxWxH)

12850,12350X2340X2400 2200,2000,1800 (mm)

Material of the Main Beam

Q235B manganese plates, automatic submerged arc welded

Brake System

ABS:CM2XL-4S/2K (optional )

Brake Air Chamber

Four double and two single chamber

Usage

Applicable to the transportation of the household appliance, textile goods, coal, dinas, and other building materials.

Other Descriptions

box shell uses the corrugated steel plate (anti-wave) or flat type steel plate with high intensities. The interior part adopts a skeletonless structure, maximizing the carrying capacity. X-shape tension brace fixed the box shell a very strong unit.

The side guard adopts close-ended design to reduce the crosswise risks effectively, and energy consumption, running with high speed. And reasonable trailer accessories were placed at the rear guard box for convenience.

Other Specifications

The top of the box is be close-ended (pull/push open-ended, open-type, or open-type with cloth tent poles optional)

The max height of the rear guard from ground is 550mm, and the cross section is 140mmX55mm.
