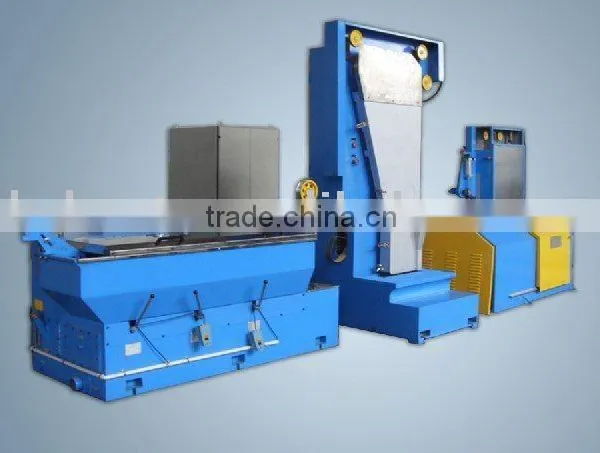

Intermediate Copper Drawing Machine

Intermediate Copper Drawing Machine thumbnail-1
Intermediate Copper Drawing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
3.5mm
Outlet Diameter:
0.8-2.76mm
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Inlet Diameter 3.5mm
Outlet Diameter 0.8-2.76mm
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-280-13D
Voltage 380
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Main technical specifications:

  • Inlet diameter: Φ2.6-Φ4.5mm
  • Outlet diameter: Φ0.8-Φ2.76mm
  • Max dies No.:13 pcs
  • Transmission type: by precision ground gears
  • Machine type: 4 capstan horizontal type
  • Max speed (MPM/Min):1500
  • Slip ratio of M/C: 25%
  • Capstan slip ratio:18.60%
  • Control system: PLC + man-machine interface
  • Motor control: dual inverter control
  • Capstan: tungsten carbide
  • Capstan Dia.(Max): 280mm
  • Finished Capstan Dia.:280mm
  • Bobbin: 500mm /630mm
  • Bobbin loading & unloading: hydraulic oil type
  • Main motor: 55KW
  • Take-up motor:15KW
  • Top power consumption:70KW
  • Synchronous control: PID synchronous control spooler
  • Tension control: weight balance by swing arm
  • Max loading weight: 500kgs
  • Lubrication type: immersion type
  • Annealing voltage(V): DC55
  • Annealing current(A): DC3500
  • Annealing power(KVA): 330
  • Lubrication type for bearing: pump enforce oil
  • Power: 3*380V 50/60Hz
  • Machine size: 9500*3500*3400
