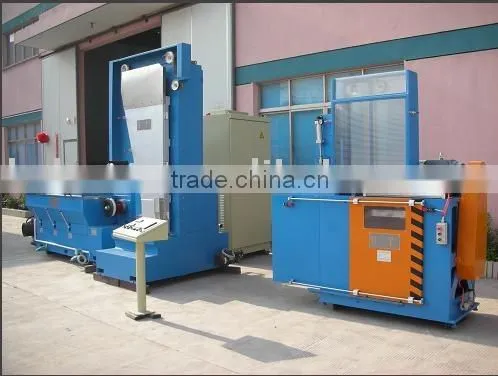

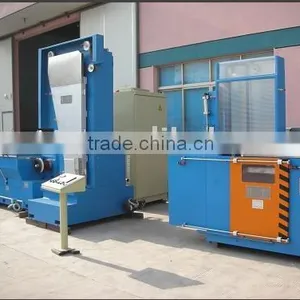

Intermediate Wire Drawing Machine With Continuous Annealer (gear)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-250-13D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Intermediate Drawing Machine With Online AnnealerNegotiableMOQ: 1 Set -
Intermediate Copper Wire Drawing Machine With Online AnnealerUS$ 50,000 - 80,000MOQ: 1 Set
-
Medium Copper Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
-
17 Dies Wire Drawing MachineNegotiableMOQ: 1 Set
-
Medium Wire Drawing Machine and AnnealerNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-250-13D
Usage
Drawing
Part one: Intermediate drawing machine feature
· Main machine: Adopt precisely ground gears for all transmission system; fully submersible drawing lubricant; tungsten carbide drawing cone, capstan; high accuracy gear driven, short oil protection; the speed changing box and wire drawing oil tank isolating device.
· Annealer: Annealing by DC; speed come after annealing ; steam/nitrogen protection.
· Take-up: stable take-up, high speed, low noise, no vibration, easy to operate, save labor.
Part two: Technical parameters
- Inlet wire diameter:Φ2.6-Φ3.5mm
- Outlet wire scope:Φ0.6-Φ1.6mm
- Max dies No.:13
- Transmission type: by precision ground gears
- Machine type: 4capstan horizontal type
- Max speed (MPM/Min):1500
- Slip ratio of M/C:25%
- Capstan slip ratio:18.60%
- Control system: PLC + man-machine interface all alarm and parameter can be controlled and displayed on a fluorescent back lid LCD graphics screen. Digital control for motor are available for computer operation.
- Motor control: Dual inverter control
- Capstan: Tungsten
- Capstan Dia.(Max):250
- Capstan Dia.:250
- Take-up dia.:Φ300-Φ630
- Bobbin loading & unloading: Hydraulic oil type
- Main motor:45KW
- Take-up motor:11KW
- Top power consumption:56KW
- Synchronous control: PID synchronous control spooler
- Tension control: Weight balance by swing arm
- Max loading weight:500kg
- Lubrication type: immersion type
- Annealing voltage(V):DC55
- Annealing current(A):DC2000
- Annealing power(KVA):165
- Lubrication type for bearing: Pump enforce oil
- Power:3*380V 50/60Hz
- Machine size:9500*3500*3400
