24D Fine Wire Drawing Machine Slimline Wire Drawing Machine

24D Fine Wire Drawing Machine Slimline Wire Drawing Machine thumbnail-1

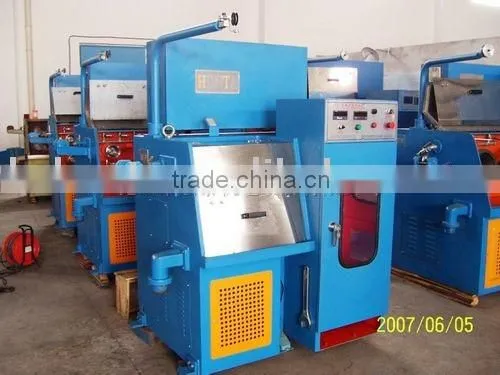

24D Fine Wire Drawing Machine Slimline Wire Drawing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-24
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-24
Usage Drawing

Part one Description of HT-24 Fine wire drawing machine



     The machine is casted to form entirely and treated by annealing to eliminate internal stress. And then been finished by reaming with fine boring machine. It has features of no deformation and high precision.



Part two Main technical data:



Wire inlet range

Ø0.2-Ø0.60mm

Wire outlet range

Ø0.05-Ø0.15mm

Machinery speed

2000MPM/Max

MAX. Use number of dies

24entries (provide by buyer)

Min. use number of dies

13entries (provide by buyer)

Outline size of dies

Ø25mm×8~12mm

Machinery reduction rate

the first to the 23rd  is 11.5%

The 24th      is10%

Main motor

5HP-4P  AC motor and 5HP transducer

Traversing ways

Synchronous motor silk rod drive, the width is 200mm

Coiler motor

3HP-4P  AC motor and 3HP transducer

Coiling capacity

5~15KG

Braking

electromagnetic brake

Control way

Dynamic control

Electric consumption

4~7.5KW

Exterio r size of machine

1900L×1350W×1750Hmm

Machinery weight

net weight1500kg, total weight 1700kg.
