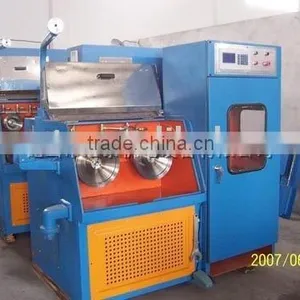

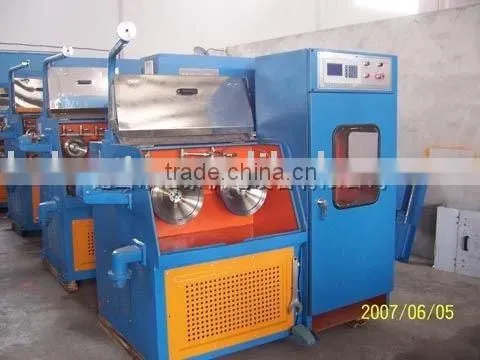

Help CenterCu./AI./C-AI Alloy Wire Drawing Machine Fine Wire Drawing Machine
Related Products
-
High Speed Wire Drawing MachineNegotiableMOQ: 1 Set -
Fine Wire Drawing Machine With Annealer Slimline Machine Fine Line MachineNegotiableMOQ: 1 Set
-
15 Dies Wire Drawing MachineNegotiableMOQ: 1 Set
-
Fine Wire Drawing Machine and Double Spooler With Continuous AnnealerNegotiableMOQ: 1 Set
-
Fine Wire Drawing Machine With Double SpoolerNegotiableMOQ: 1 Set
Specifications
High speed, high efficiencyProduct Information
1) Machine Type: HT-14D
2) Intlet Diameter: 0.8~1.6mm
3) Outlet Diameter: 0.25~0.6mm
4) Drawing Line Speed: 1500m/min
5) Drawing Dies No./Max.:14
6) Slip Ratio Of M/C: 15%
7) Fix Speed Capstan Slip Ratio: 8%
8) Capstan:Tungsten
9) Capstandia.(Max.): 316mm
10) Fix Speed Capstan Dia.:268mm
11) Frame: Welded By Steel Plate
12) Main Motor: 15Kw Three Phase Inductor Motor
13) Spooler Motor: 5.5Kw Three Phase Inductor Motor
14) Spooler Control: Pid Synchronous Control Spooler
15) Inverter Control: Dual Inverter Control
16) Transmission Type: By Fiat Belts
17) Send-Out Method: Over Head
18) Traversing Unit: Flat Belt+Synchronous Motor
19) Tension Control: Weight Balance By Swing Arm
20) Lubrication Type: Spray Type
21) Suitable Diameter Of Spool: 300-400
22) Capacity For Wire Receiving: 50-80
23) Bobbin Loading & Unloading Type: Shaft Brake
24) Power Source: 380V
25) Brake: Magnetic Brake
26) Machine Dimension: 1950L X 1100W X 1750H (mm)
27) Machine Weight: 2200KG
