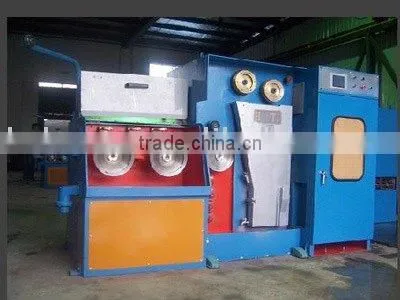

High Speed Wire Drawing Machine

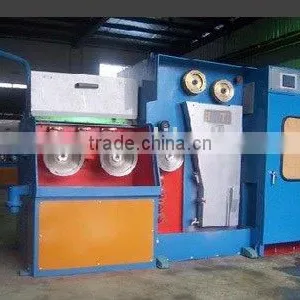

High Speed Wire Drawing Machine thumbnail-1
High Speed Wire Drawing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
1.4
Outlet Diameter:
0.2-0.5
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Inlet Diameter 1.4
Outlet Diameter 0.2-0.5
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-15DT
Voltage 380 - 415V
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Technical data:



<1> Inlet diameter max 1.4mm
<2> Outlet range 0.20 ~ 0.50mm
<3> The maximum line speed max 1500m/min
<4> Die No. max 15
<5> Die diameter 20 mm &. 18 mm
<6> Mechanical extension rate fixed diameter die 1.10% Other 1.18
<7> Drawing dark round diameter max 315.9 mm
<8> The fixed-speed round diameter 268.2 mm
<9> The drawing host motor power AC18.5kw
<10> Drawing machine appearance size (L × W × H) 1400 × 2050 × 1200 mm
<11> Net weight about 3300kg
