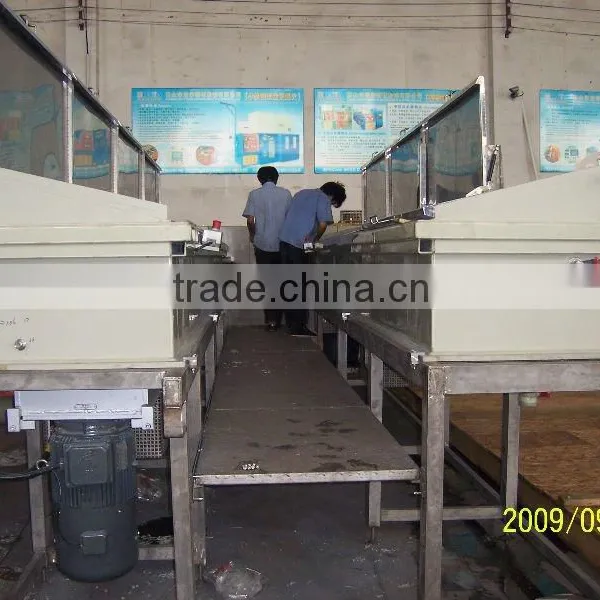

Help CenterElectrolytic Plating Machine
Related Products
-
Electrolytic Single Wire Plating Machine (Ni/Sn)NegotiableMOQ: 1 Set -
Electrolytic Wire Plating Machine Wire and Cable MachineNegotiableMOQ: 1 Set
-
Electrolytic Single Wire Plating MachineNegotiableMOQ: 1 Set
-
Electrolytic Single Wire Plating MachineNegotiableMOQ: 1 Set
-
Electric Plating MachineNegotiableMOQ: 1 Set
Technical Parameter of Electroplating Machine | |
Wire model |
HT -6000-15m/s |
Number of Wire |
1 |
Line speed |
Max 15 m/s |
Raw material |
Copper |
Diameter scope |
1.00 -2.6 mm ( hard wires) 1.00 -3.5 mm ( soft wires) |
Requirements to the wires |
low grease and without oxidation |
cladding material |
Sn (tin)/Ag/ Ni/Cu. |
coating thickness |
1 to 25 µm |
coating quality |
as per DIN 40500, ASTM B 33 |
general assembling power |
approx. 120 kW |
Voltage of Power |
3 x 380 V, 50 Hz |
control Voltage |
24 V DC, 220 V AC |
electrical equipment |
acc. to VDE and VBG 4 |
Max. environmental temperature |
45°C (hall temperature) |
Noise level |
85 dB (A) Max. 85 dB (A) |
electric plating current |
6000 A, 10 V |
degrease electric current |
500 A, 10 V |
electric plating immersion length |
140 m |
degrease immersion length |
40 m |
Diameter of electric plating groove |
400 mm, 27 grooves |
Diameter of degrease groove |
400 mm, 18 grooves |
volume of collecting box |
400 l |
degrease |
200 l |
acid cleaning |
200 l |
electric plating |
2500 l |
length |
About 8,000 mm |
Width |
About 6,000 mm |
height |
About 2,600 mm |
Without the weight of liquid |
About 8,000 kg |
With the weight of liquid |
About 12,000 kg |
