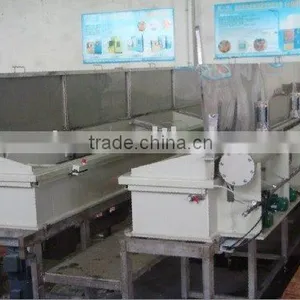

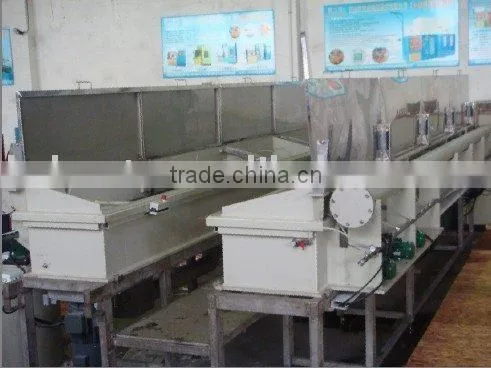

Help CenterElectrolytic Single Wire Plating Machine
Related Products
-
Electrolytic Single Wire Plating MachineNegotiableMOQ: 1 Set -
Electric Plating MachineNegotiableMOQ: 1 Set
-
Plating Machine Tin Plating Machine Electrolytic Plating LineNegotiableMOQ: 1 Set
-
Electrolytic Tin Coating Machine Tin Plating LineNegotiableMOQ: 1 Set
-
Electrolytic Plating Machine Zinc Plating Machine 6000ANegotiableMOQ: 1 Set
Main technical data of HT-10000Sn-15m/s Plating machine:
Type of line: HT- 10000 Sn- 15 m/s
Length: approx. 7,500 mm
Width: approx. 5,600 mm
Height (cover opened): approx. 2,500 mm
Weight without bath liquids: approx. 8,000 kg
Weight with bath liquids: approx. 12,000 kg
Number of wires: one
Wire speed: max. 15 m/s
Wire material: Cu
Wire diameter range: 1.2 2.6 mm hard
1.2 3.5 mm soft
Condition of wire: low grease and free from oxides
Coating material: Sn
Coating thickness: 1 to 25 µm
Coating quality: as per DIN 40500, ASTM B 33
Total installed load: approx. 130 kW
Mains voltage: 3 x 380 / 50 Hz
Control voltage: 24 V DC, 230 V AC
Electric equipment : acc. to VDE and VBG 4
Max. ambient temperature: 45°C (hall temperature)
Noise level: max. 85 dB (A) average sound level ,
Plating current: 10000 A, 10 V
Degreasing current: 500 A, 10 V
Immersion length, plating : 140 m
Immersion length, degreasing: 40 m
Groove dia. of current roller, plating: 400 mm, 27 grooves
Groove dia. of current roller, degreasing: 400 mm, 18 groov
