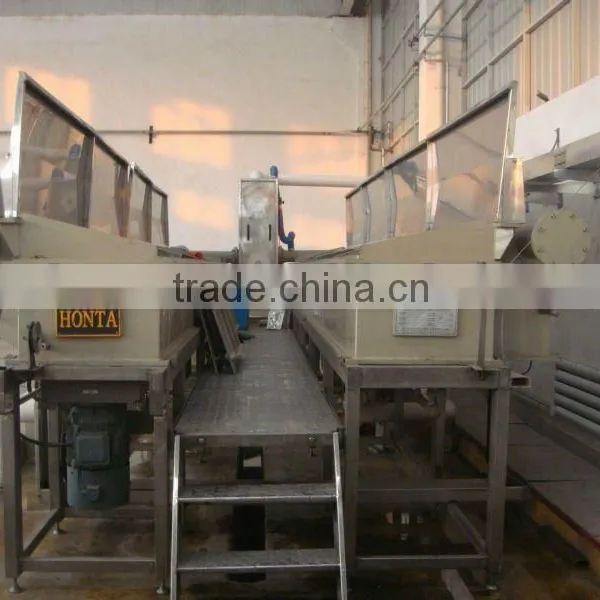

Electrolytic Single Wire Plating machine
- 20 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HONTA | Model Number: | HT-4000 Sn-13m/s |
Usage: | Coating |
Product Description
Specifications
Features: 1. Degreasing;Pickling;Plating; 2. stainless steel support structure; 3. Grooves made by PP plate; 4.Highly efficiencyMain technical data of Electrolytic Wire Plating machine:
Technical Parameter of Electroplating Machine | |
Wire model | HT-4000 Sn-13m/s |
Number of Wire | 1 |
Line speed | Max 13 m/s |
wire | Cu |
Diameter scope | 0.80 -2.6 mm ( hard wires) 0.80 -3.5 mm ( soft wires) |
Requirements to the wires | low grease and without oxidation |
cladding material | Sn (tin) |
coating thickness | 1 to 20 µm |
coating quality | as per DIN 40500, ASTM B 33 |
general assembling power | approx. 120 kW |
Voltage of Power | 3 x 380 V, 50 Hz |
control Voltage | 24 V DC, 220 V AC |
electrical equipment | acc. to VDE and VBG 4 |
Max. environmental temperature | 45°C (hall temperature) |
Noise level | 85 dB (A) Max. 85 dB (A) |
electric plating current | 4000 A, 10 V |
degrease electric current | 400 A, 10 V |
electric plating immersion length | 140 m |
degrease immersion length | 40 m |
Diameter of electric plating groove | 400 mm, 27 grooves |
Diameter of degrease groove | 400 mm, 18 grooves |
volume of collecting box | 400 l |
degrease | 200 l |
acid cleaning | 200 l |
electric plating | 2500 l |
length | About 8,000 mm |
Width | About 6,000 mm |
height | About 2,600 mm |
Without the weight of liquid | About 8,000 kgs |
With the weight of liquid | About 12,000 kgs |
