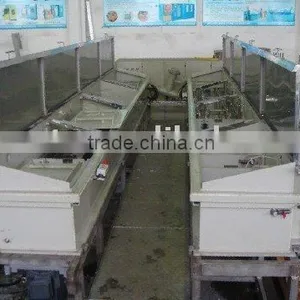

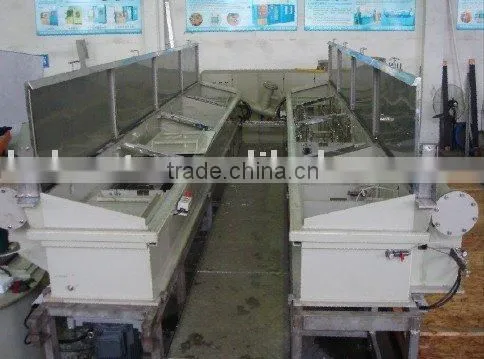

Help CenterElectric Plating Machine
Related Products
-
Plating Machine Tin Plating Machine Electrolytic Plating LineNegotiableMOQ: 1 Set -
Electrolytic Tin Coating Machine Tin Plating LineNegotiableMOQ: 1 Set
-
Electrolytic Plating Machine Zinc Plating Machine 6000ANegotiableMOQ: 1 Set
-
Electrolytic Plating Machine Copper Plating Machine 6000ANegotiableMOQ: 1 Set
-
Electrolytic Single Wire Plating Machine Wire and Cable MachineNegotiableMOQ: 1 Set
1. Main technical data:
Length : approx. 7, 500 mm
Width : approx. 5, 600 mm
Height (cover opened) : approx. 2,500 mm
Weight without bath liquids : approx. 8,000 kg
Weight with bath liquids : approx. 12,000 kg
Number of wires : one
Wire speed : max. 13 m/s
Wire material: Cu
Wire diameter range : 1.2 – 2.6 mm hard
1.2 – 3.0 mm soft
Condition of wire : low grease and free from oxides
Coating material : Sn
Coating thickness : 1 to 25 µm
Coating quality : as per DIN 40500, ASTM B 33
Total installed load : approx. 120 kW
Mains voltage : 3 x 380V / 50 Hz
Control voltage : 24 V DC, 230 V AC
Plating current : 6000 A, 10 V
Degreasing current : 500 A, 10 V
Immersion length, plating : 140 m
Immersion length, degreasing : 40 m

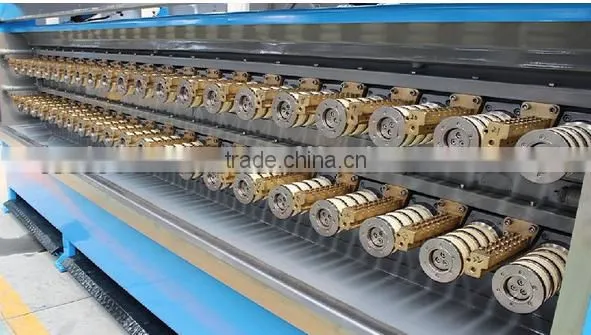

Groove dia. of current roller, plating : 400 mm, 27 grooves
Groove dia. of current roller, degreasing : 400 mm, 18 grooves
2. PROCESS SEQUENCE:
pay-off---Electrolytic degreasing---Three-stage cascade rinse---Pickling---
Electrolytic plating---Three-stage cascade rinse---coiler/spooler.
Well packed on steel pallets in containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
1. Technical support, design machine according to customer's requirement.
2. Prepare detail proposals for customer's check.
3. Be guider for machine installation.
4. To send engineers to customer's plant to finish machine commissioning.
5. Help customers to remove troubles in future running.
|
|
|||
Send Inquiry to This Supplier
