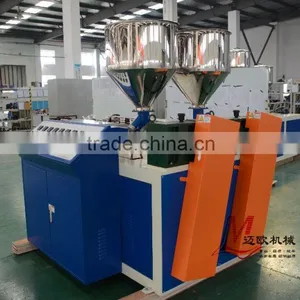

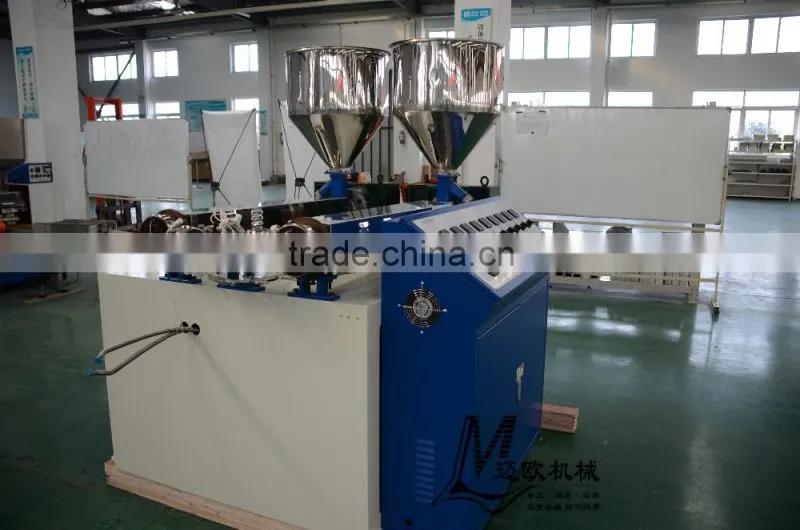

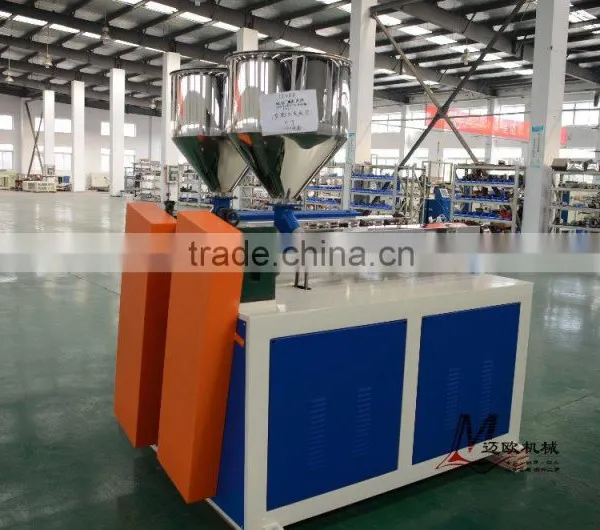

ML12 TWO COLOUR DRINKING STRAW EXTRUDER

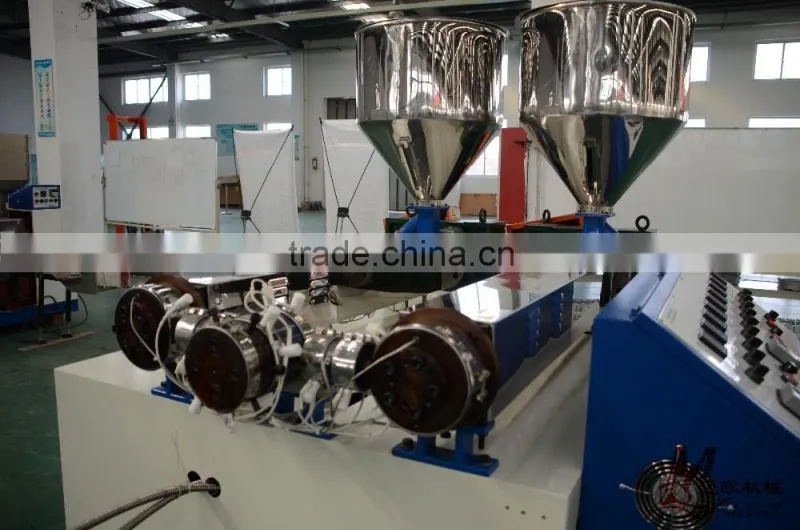

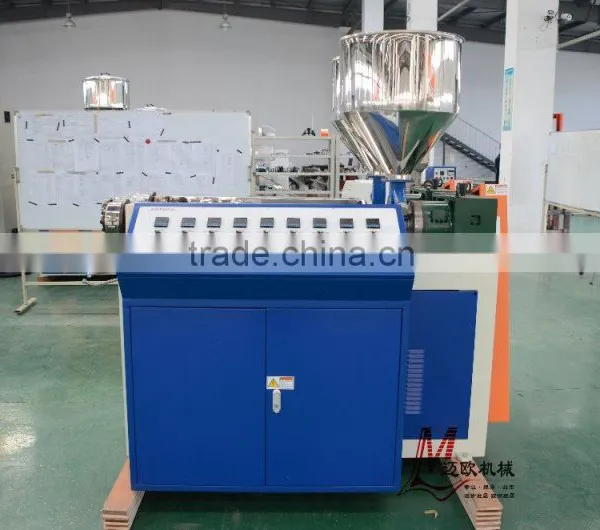

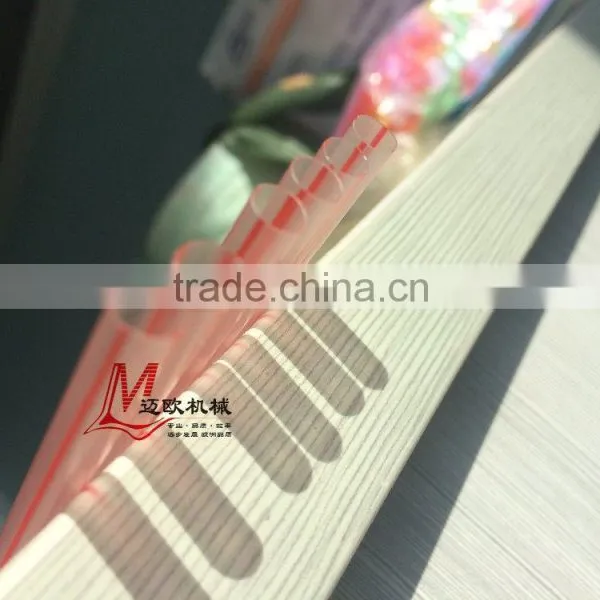

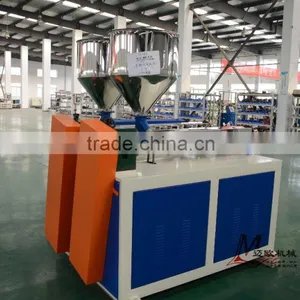

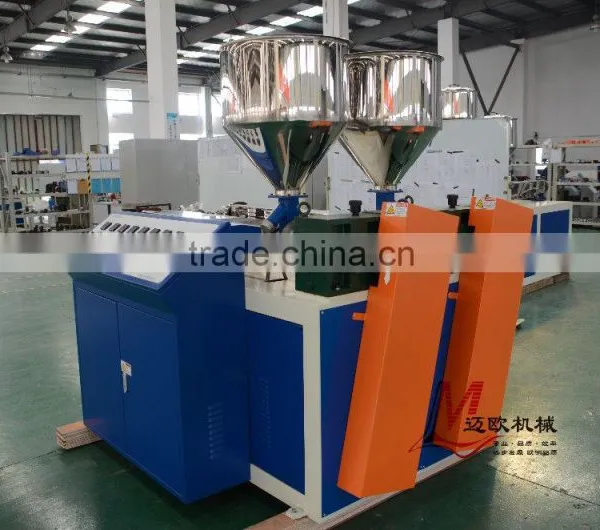

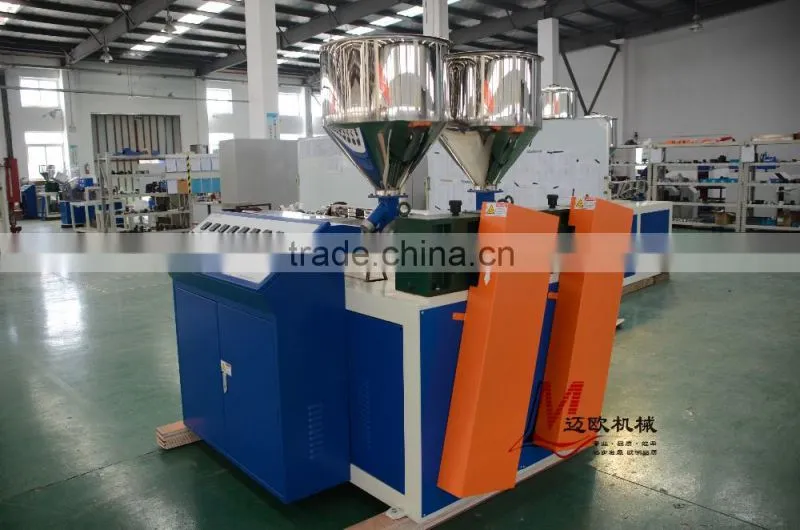

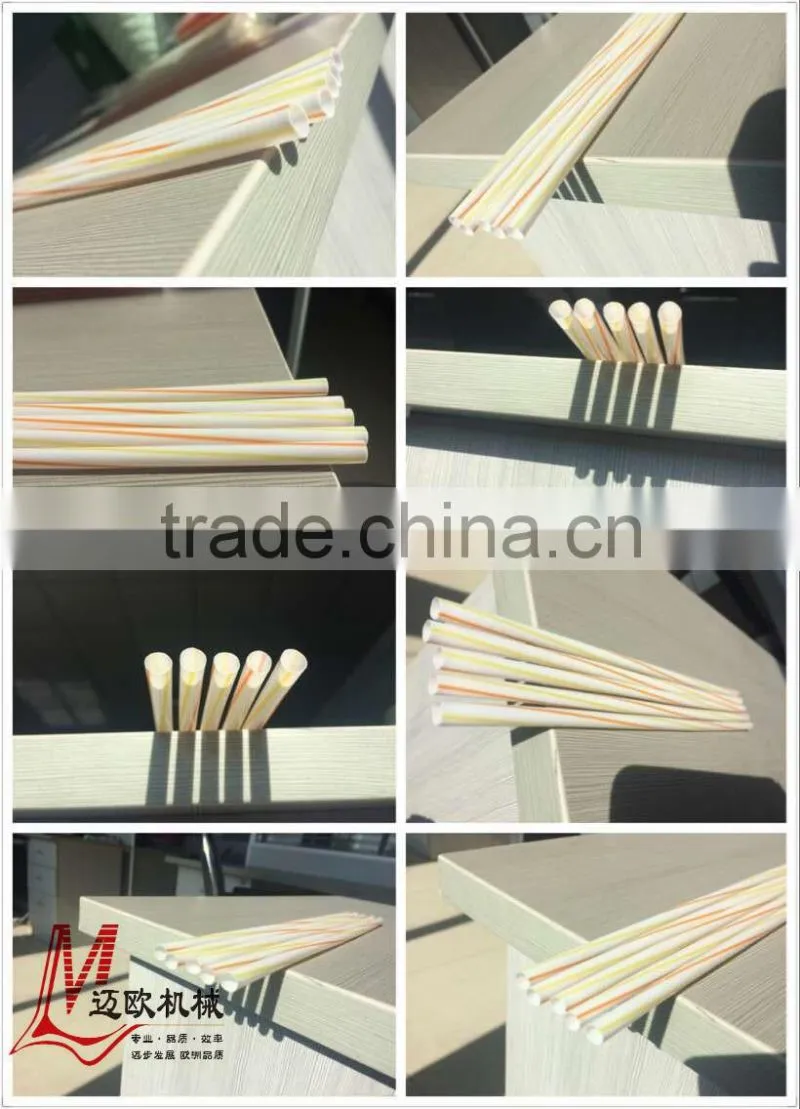

ML12 is a tube extrusion line, composed of extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, The series machines can produce all kinds of drinking straw,spiral strip straw,from one color two colors , medical pipe, all the machine’s controls base with the control elements ergonomically adapted to permit easy operation.
Model |
ML12 |
|
Feature |
Material |
PP |
Color |
2 |
|
Straw diameter |
3.0 ~12 mm |
|
thickness |
0.10 ~ 0.35 mm |
|
Straw length |
80 ~ 300 mm |
|

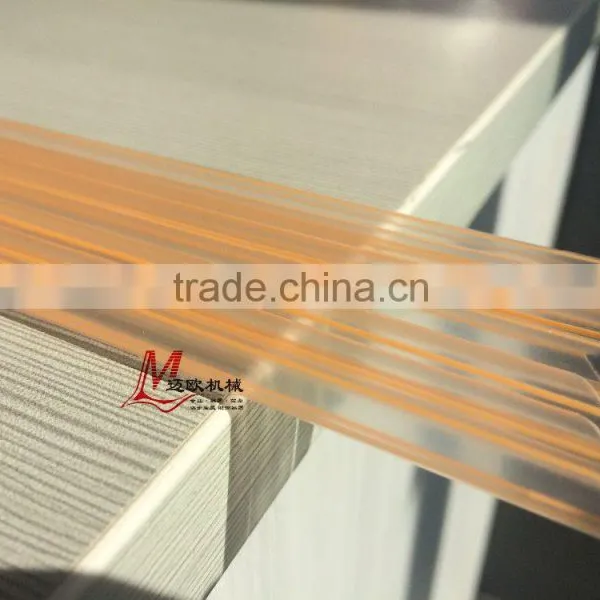

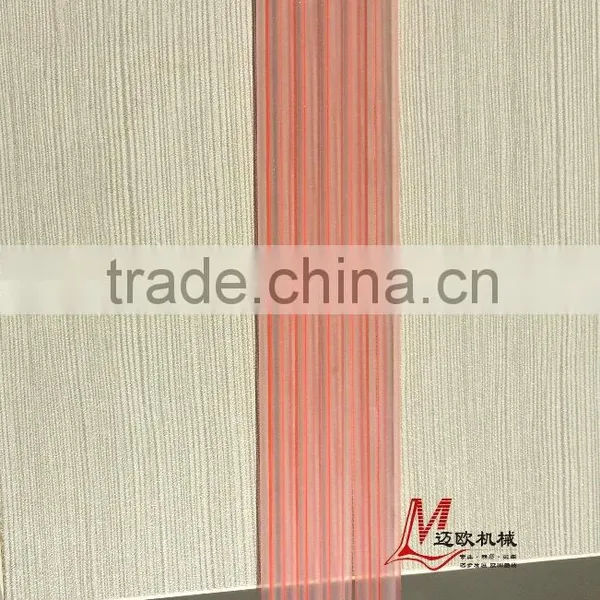

Stripes |
Straight or / Helical |
|
Capability |
400 ~ 1800 pcs/min |
|
xtruding output range |
20 ~40 kgs/hr |
|

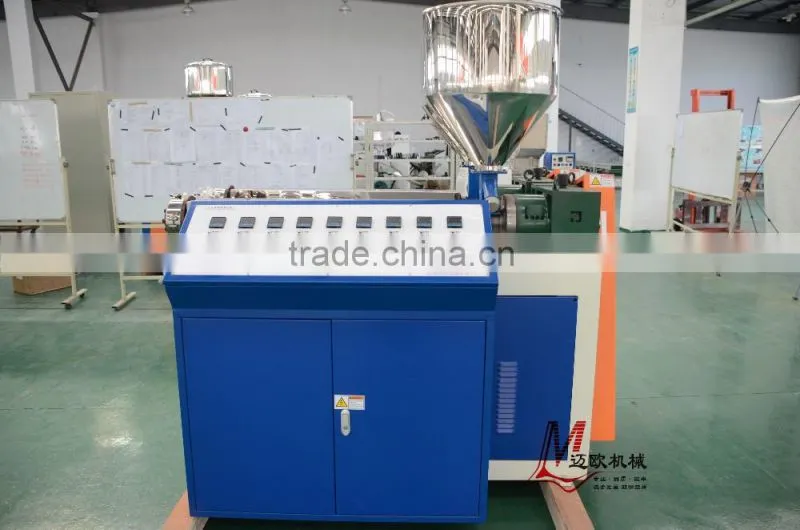

Extruder |
Main Screw diameter |
φ50 mm ( BM Screw) |
Screw L/D |
28 : 1 |
|
Main driving motor |
11 Kw (VFD) |
|
Vice screw diameter |
25 mm×1 |
|
Vice driving motor |
0.75Kw ×1(VFD) |
|
Gearbox |
ZLY133 |
|

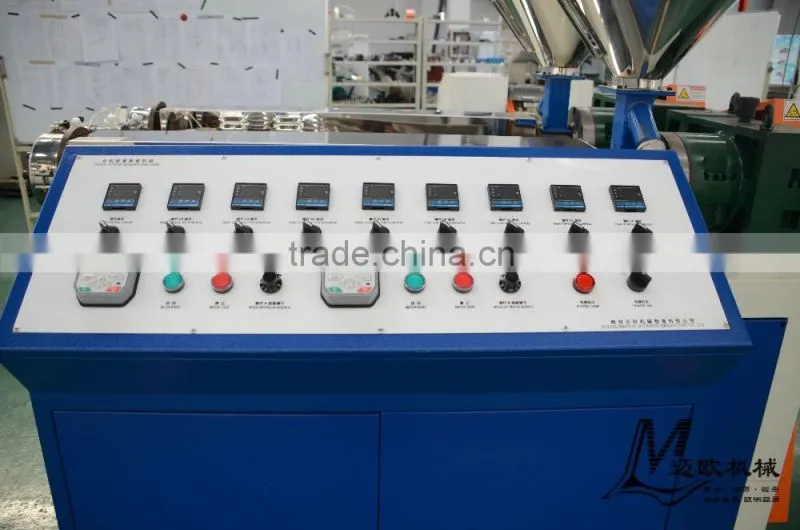

Automatic thermo-controller |
8 sets |
|
Heating power |
11.63 kw |
|
Water cooling tank |
orming device |
1 set |
Vacuum Pump motor |
1.1 kw(choose) |
|
Water storage tank |
(length)3400 mm /304 Steel stainless |
|
Base frame material |
(304 Steel stainless) |
|
Blow dry device |
1 set |
|
Take up & Cutting Unit |
Take up unit |
1 set |
motor |
0.75kW×1(VFD) |
|
Cutting knife unit |
1 set |
|
motor |
0.75kW×1(VFD) |
|
angle of port |
90°/60°/45° |
|
Digital counter |
1 set |
|
|
Others |
Air compressor |
1.5kw(choose) |
Dimension LxWxH |
8m×1.2m×1.6 m |
|
Machine weight |
2100 kgs |
|
1, The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,
2, Water bath in stainless steel can be adjusted in three planes
3, The haul-off unit can be belt or rollers, it is customizable, Fitted with double rotary cutter. Cut angle: 90°/45°, 90°/60°
4, Conveyor device(you may select if you want)
