One Color Straw Machine

One Color Straw Machine photo-1
One Color Straw Machine photo-2
One Color Straw Machine photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Marrow
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name Marrow
Model Number ML11-50
Voltage 220V/380V/415/440V,50hz(60hz),3 phase
Power(W) 11kw
Dimension(L*W*H) 8m*0.9m*1.6 m
Weight 2000kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

One Color Straw Machine

Model One color straw machine is a tube extrusion line, composed of extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, The series machines can produce all kinds of drinking straw with one color, medical pipe,all the machine’s controls base with the control elements ergonomically adapted to permit easy operation.

SPECIFICATIONS




Feature

Material

PP PE

Color

1

Straw diameter

φ3.0 ~ φ12 mm

Thickness

0.10 ~ 0.35 mm

Straw length

80 ~ 300 mm

Capability

400 ~ 1800 pcs/min

Extruding output range

20 ~ 40 kgs/hr



Extruder

Main Screw diameter

φ50 mm ( BM Screw)

Screw L/D

28 : 1

Main driving motor

11 Kw (VFD)

Gearbox

ZLY133

Automatic thermo-controller

5 sets

Heating power

8.1kw




Water tank

Forming device

1 set

Vacuum Pump motor

1.1 kw(choose)

Water storage tank

(length)3400 mm

 304 Steel stainless

Base frame material

304 Steel stainless

Blow dry device

1 set

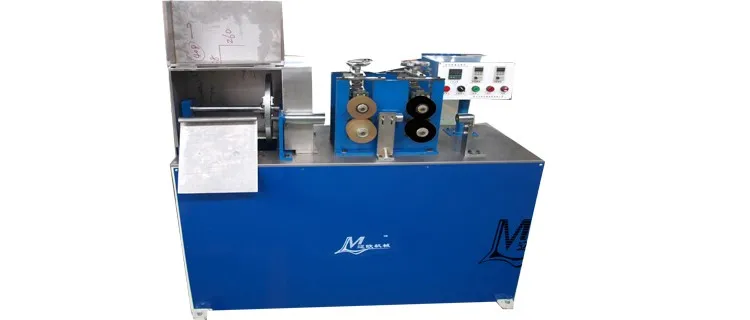

Take up & Cutting Unit

Take up unit

1 set

Motor

0.75kW×1(VFD)

Cutting knife unit

1 set

Motor

0.75kW×1(VFD)

Angle of port

90°/60°/45°

Digital counter

1 set


Others

Air compressor

1.5kw(choose)

Dimension LxWxH

8m×0.9m×1.6 m

Machine weight

1800 kgs

Main Features

1) Cut-end: 90° /90° , 90° /45° , 90° /60° , 45° /45° , 60° /60°.

2) All the direct contact parts made from stainless steel.

3) The cutting unit adopted the big plate cutter and with automatic gathering system.

4) The breaker, AC contactor and knob switch brand is SCHNEIDER.

Certifications
Detailed Images

Machine Parts

Brand: Schneider

Original: France



Machine Parts

Brand: Siemens
Original: Germany


Machine Parts

Brand: Emerson
Original: United States

Our Service

Pre-Sales Service

* Online sales.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* After-sales service.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Our responsibilit

* Help you solve every problem and offer you 24-hour online after-sales service.

* Atter the machine finished ,we will send the video and pictures to confirm ,if all ok ,we will arrange the shippment .but if you have any change , please tell us in advance!!
* We will confirmed all including spare parts , when is ok , we wil let you can see the shipping loading pictures in contai-ner .in each step we all done very well to avoid any mistake when arrived the destination port .

Packing & Delivery
Packaging
Size

8m(L) *0.9 m(W) *1.6m(D)




Packaging Details
The normal package is wooden box(Size: L*W*H). If  use the container,we will use pe film for packing or pack it according to customers special request.
