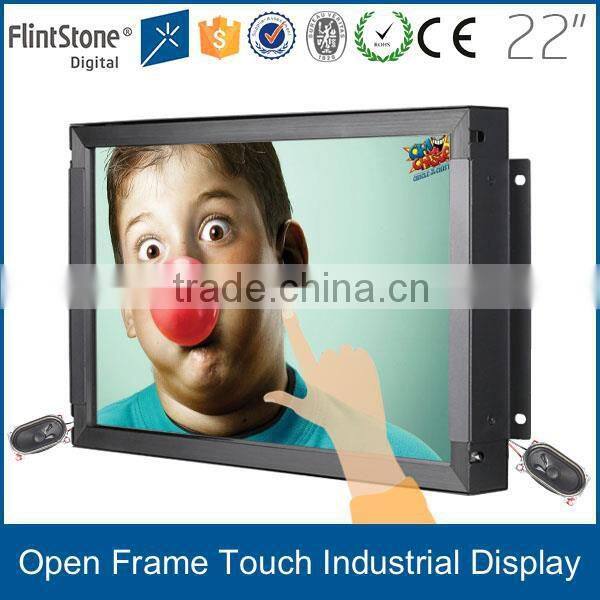

FlintStone 1920x1080 Open Frame 15/19/22/32/42/55 Inch Touch Screen Monitor

FlintStone 1920x1080 open frame 15/19/22/32/42/55 inch touch screen monitor

What features of our open frame lcd monitor ?

1. Industrial-grade design, heavy-duty built for non-stop loop-playing 24/7/365
2. Rich signal input ports: HDMI / VGA / BNC / AV and more
3. Metal shielding structure, anti-radiation, anti-static, anti-magnetic, anti-interference
4. Latest fan-less design, noise-less, dust-less, no potential damage of moving mechanical parts, no potential over heating hazard
5. Open frame structure: highly flexible and customizable to embed into your furniture, store shelf, wall, or any other objects as per your needs
6. Our engineers can provide design service as per your special needs
7. With tough industrial grade IR touch screen (USB port), easy to connect with PC or Android system

What functions of our open frame lcd monitor ?

1. 2 point touch; Touch by fingers, opaque touch pen etc.
2. 14ms touch responding time; 50 million touch times durability
3. Solid open frame structure and flexible brackets for embedding
4. Adopt latest 3D digital filtering and 3D digital noise reduction technology
5. Professional industrial A+ LCD panel
6. 16.7M color, true presentation of all the details
7. High brightness, high color gamut, high contrast ratio to improve the image performance
8. 5ms response time;  60,000 hours life span
9. With both flexible push buttons and IR remote control

What are the specifications of our open frame lcd monitor ?

Technical specifications

1. LCD screen

  LCD size: 21.5 inch

  Active area: 476.64mm (H) X 268.11mm (V)

  Screen ratio: 16:9

  Resolution: 1920 X 1080

  Brightness: 250cd/m2

  Contrast ratio: 1000:1

  View angle: L / R / U / D (85° / 85° / 80° / 80°)

  Pixel: 0.2482mm X 0.2482mm

  Color: 24 bit

  Vertical synchronization range: 50-75HZ

  Horizontal synchronization range: 30-80KHZ

2. Touch panel

  Touch input: any opaque objects(finger, touch pen, etc.)

  Touch sensing: infrared

  Touch screen resolution: 4096 X 4096

  Touch screen type: 2 points

  Minimum touch object: 2mm

  Responding time: 14ms

  Touch durability: 50,000,000 times

  Touch interface: USB interface  ×1 type A USB female interface

  Light transmittance: ≥94% 100%(MAX)

3. Video

  Color system: PAL, SECAM, NTSC, etc.

  3D comb filter: yes

  3D de-interlace: yes

4. Input and output

  VGA input interface: X 1 (D-Sub 15 pin female)

  HDMI input interface: X 1 (19P standard HDMI interface)

  AV input: X 2 (BNC interface)

  AV output: X 1 (BNC interface)

  Audio input: X 1 (headphone socket)

  Audio output: X 1 (headphone socket)

5. OSD display (screen menu display)

  Menu language: Chinese, English

6. Casing

  Casing material: steel

  Casing color: black

  VESA pitch: 100mm X 100mm,Φ6mm

  Function buttons: 7 buttons

  AC cable length: 1.5 M

7. Others

  Power consumption: AC100~240V 1A(MAX)

  Standby power consumption: <1W

  Speaker power: 2 X 8 Ω / 5 W

  Body size: 523mm (L) X 314mm (W) X 54mm (H)

  Net weight: 9kg

  Package: neutral packaging

  Accessories: power adapter, remote control, etc.

  Standard bracket: L shape bracket

  Application environment: indoor

  Working temperature: 0℃ - 45℃

    Storage temperature: -20℃ - 45℃

    Working humidity: 20% - 80%

    Storage humidity: 10% - 95%

   open frame lcd monitor photos

What is the application of our open frame lcd monitor ?

- Post ads

- Publish the latest information
- Real-time news
- The latest product photos
- Exhibition information
- Corporate incentive information
- Welcome Board
- Brand promotion
- Product promotion
- Entertainment platform
- Education platform
- Information sharing
- Media platform operation

  More ... ...

- Media companies

- Government
- Schools
- Banks

- Super Markets

- Hospitals
- Restaurants
- Railways stations

- Bus stops

- Airport

- Hotels

  More ... ...
