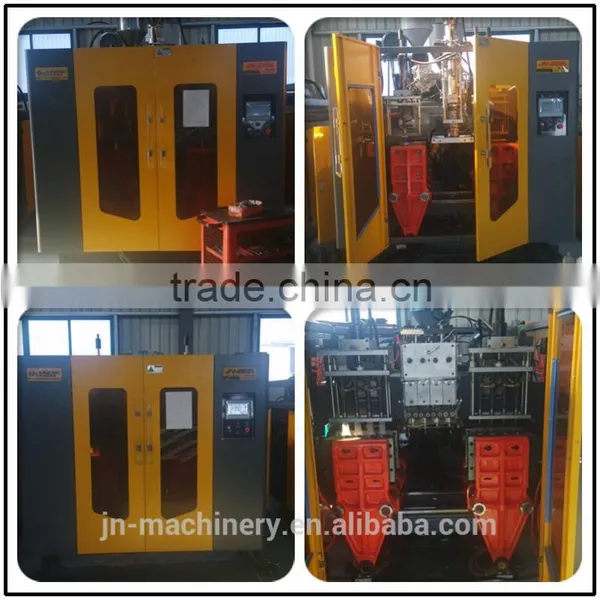

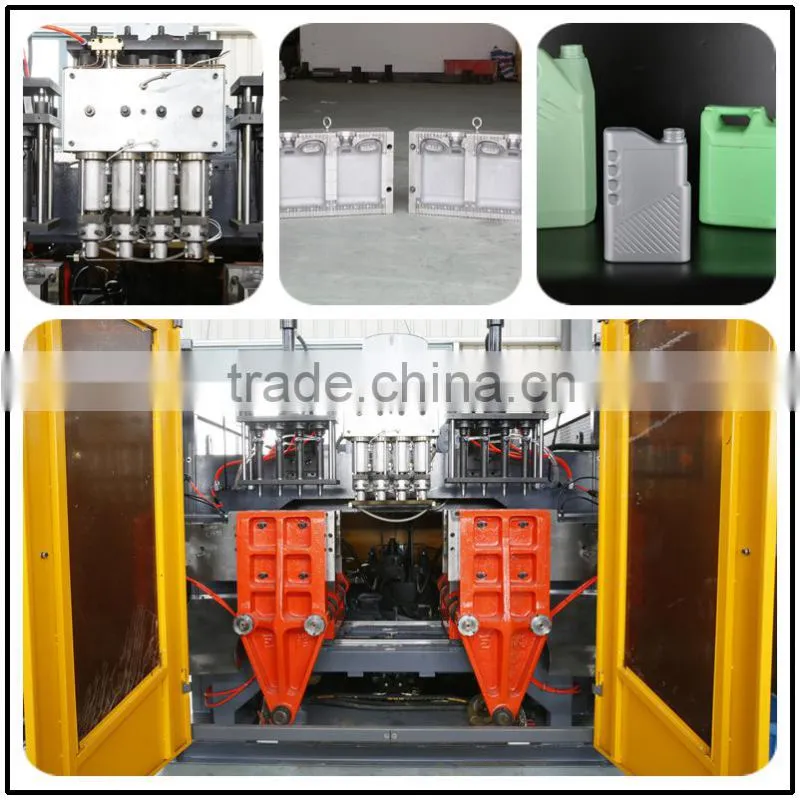

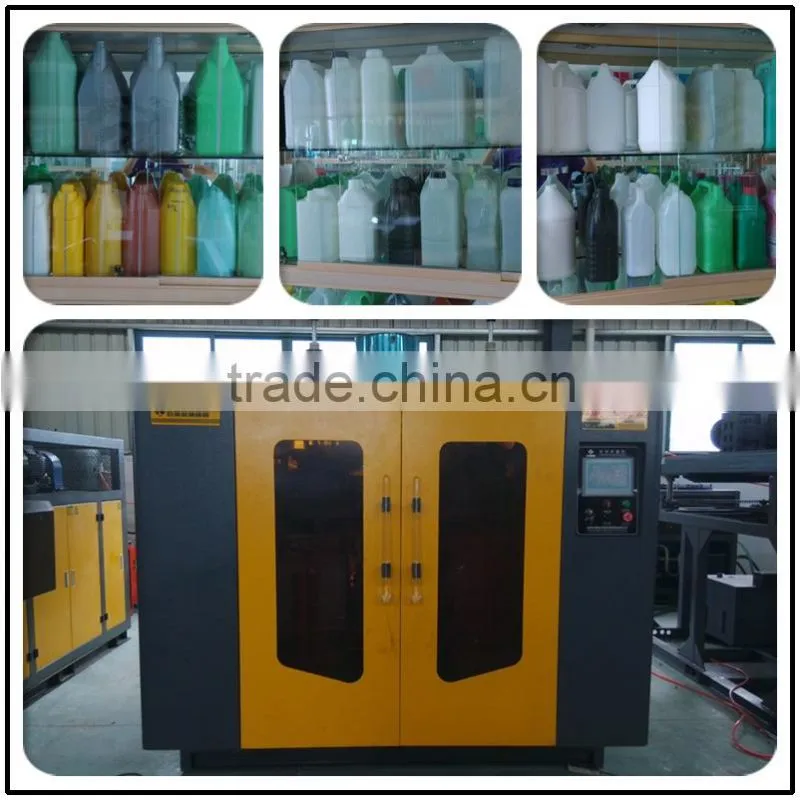

Help CenterJN-2S2L Extrusion Blow Molding Machine
Related Products
-
Extrusion Blow MouldUS$ 500 - 2,000MOQ: 1 Set -
JN-2S2L Extrusion Blow Moulding MachineUS$ 27000.00 - 27000.00MOQ: 1 Set
-
JN-2000 Fully Automatic Stretch Blow Molding MachineUS$ 2,500 - 3,500MOQ: 1 Set
-
JN-4000 Fully Automatic Stretch Blow Molding MachineUS$ 4,000 - 4,500MOQ: 1 Set
-
JN-S30L Fully Automatic Extrusion Blow Molding MachineUS$ 61,000 - 65,000MOQ: 1 Set
company brief introduction
taizhou huangyan juneng machine mould co.,ltd loacted inhuangyan,the" hometown of mould" in china,our company introduce overseas advanced technology,formed a research and development team with many experts,engineers and technicians,to ensure the high quality products.our company specialized in designning and producting many series and sizes extrusion blow molding machines,full automatic stretch blow molding machines and semi automatic blow molding machines with assistant bottles moulds and cap moulds.we can offer many kinds of plastic extrusion production range from 5ml to 260liters.
product description:
| general specifications of extrusion blow molding machine | ||||||
| model no. | Unit | JN-2S2L | JN-2S5L | JN-2S2L/T | JN-2S5L/T | JN-2S12L |
| duct volume | L | 2 | 5 | 2L/1 | 5L/1 | 12L/1,5L/2 |
| Dry cycle | pc/h | 800*2 | 600*2 | 750*2 | 550*2 | 600 |
| screw diameter | mm | 60 | 70 | 60+25 | 70+25 | 90 |
| screw L/D ratio | L/D | 24-26 | 24-26 | 24-26 | 24-26 | 24-26 |
| screw motor power | kw | 15 | 22 | 15+1.1 | 22+1.1 | 37-45 |
| screw heating capacity | kw | 3.3-4.5 | 5.04-8.2 | 5.04-6.7 | 6.8-10.3 | 7.3-9 |
| no.of heating zone | zone | 3 | 3 | 3 | 3 | 4 |
| output of HDPE | kg/h | 50-70 | 70-85 | 50-70 | 70-85 | 100-110 |
| oil pump drive power | kw | 7.5 | 11 | 7.5 | 11 | 22 |
| clamping force | kn | 38 | 60 | 38 | 60 | 110 |
| mold stroke | mm | 138-368 | 148-508 | 138-368 | 148-508 | 180-600 |
| size of mould(W*H) | mm | 300*320 | 370*390 | 300*320 | 370*390 | 450*500 |
| mould thickness | mm | 150-210 | 180-290 | 150-210 | 180-290 | 200-330 |
| max.die diameter | mm | 90 | 145 | 90 | 145 | 220 |
| die heat capacity | kw | 1.8-3.5 | 3.5-4.3 | 1.8-3.5 | 3.5-4.3 | 4.4-5.5 |
| blowing pressure | mpa | 0.6-0.8 | 0.6-0.8 | 0.6 | 0.6 | 0.7 |
| blowing air volume | M³/Min | 0.4 | 0.6 | 0.4 | 0.6 | 0.6 |
| cooling water pressure | mpa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| water consumption | L/Min | 50 | 60 | 55 | 65 | 70 |
| weight of machine | ton | 4 | 4.8 | 4.1 | 5 | 11.2 |
| size of machine(L*W*H) | m | 3*2*2.1 | 3.5*2.1*2.1 | 3*2*2.2 | 3.5*2.1*2.3 | 3.6*3.5*2.6 |

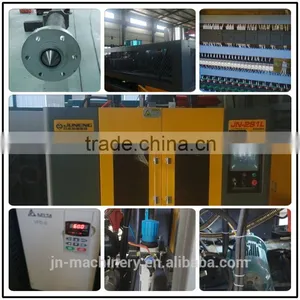

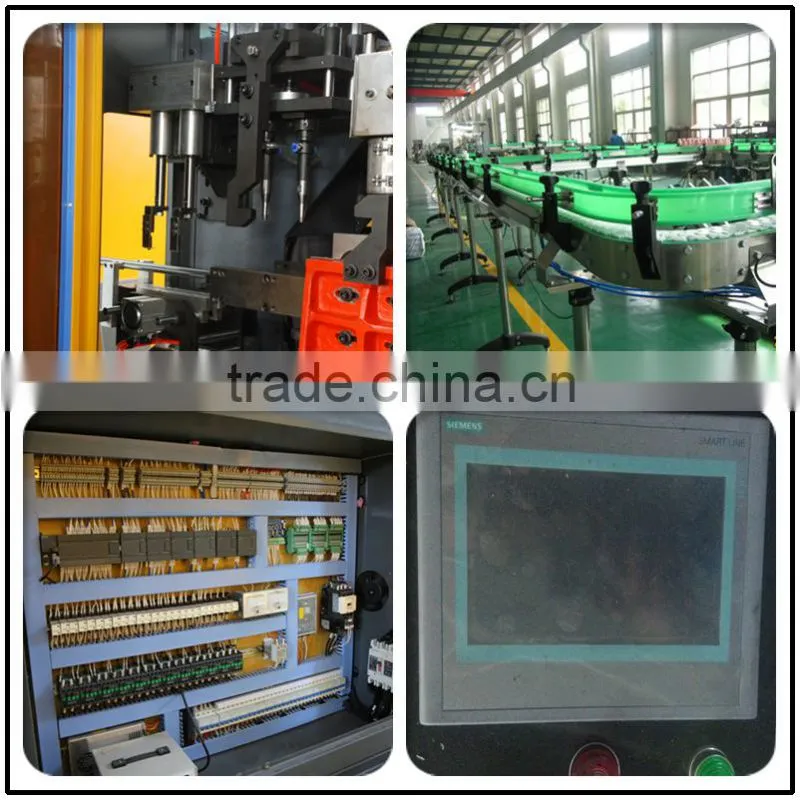

Components resources:
PC screen |
Germany Siemens |
Controller |
Germany Siemens |
oil pump |
Japan yuken |
main direction valve |
Taiwan Northman hydraulic valve |
Two-way proportional valve |
Taiwan Northman valve |
Two-way multiply throttle valve |
Taiwan Northman valve |
Pilot operated check valve |
Taiwan Northman valve |
oil seal |
UK SEALTECH |
frequency |
TAIWAN DELTA |
blowing valve |
Taiwan AIRTAC |
AC contactor |
France SCHNEIDER |
Air switch |
France SCHNEIDER |
Thermal relay |
France SCHNEIDER |
Small relay |
France SCHNEIDER |

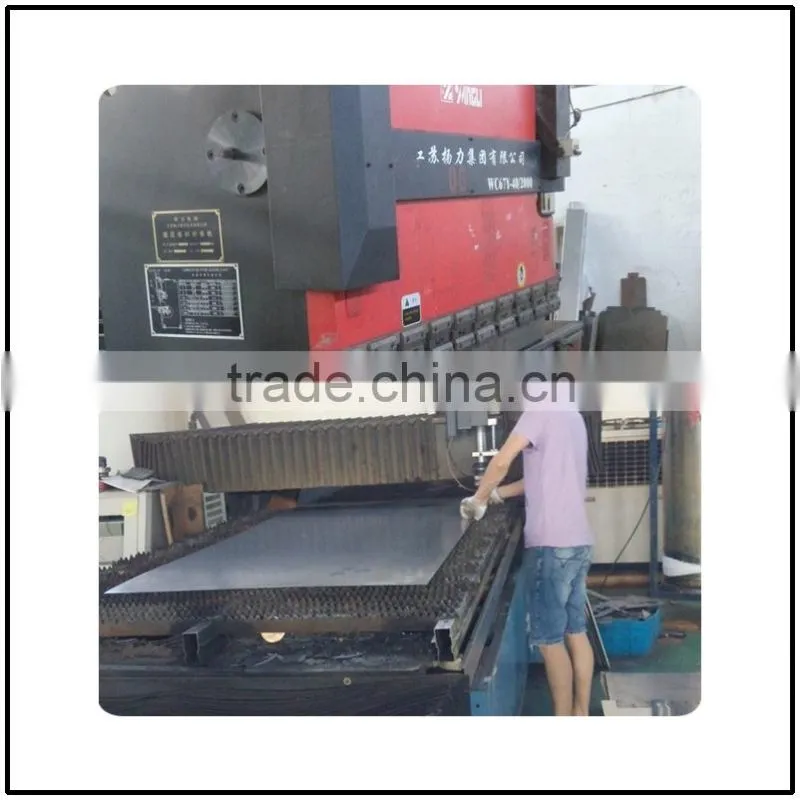

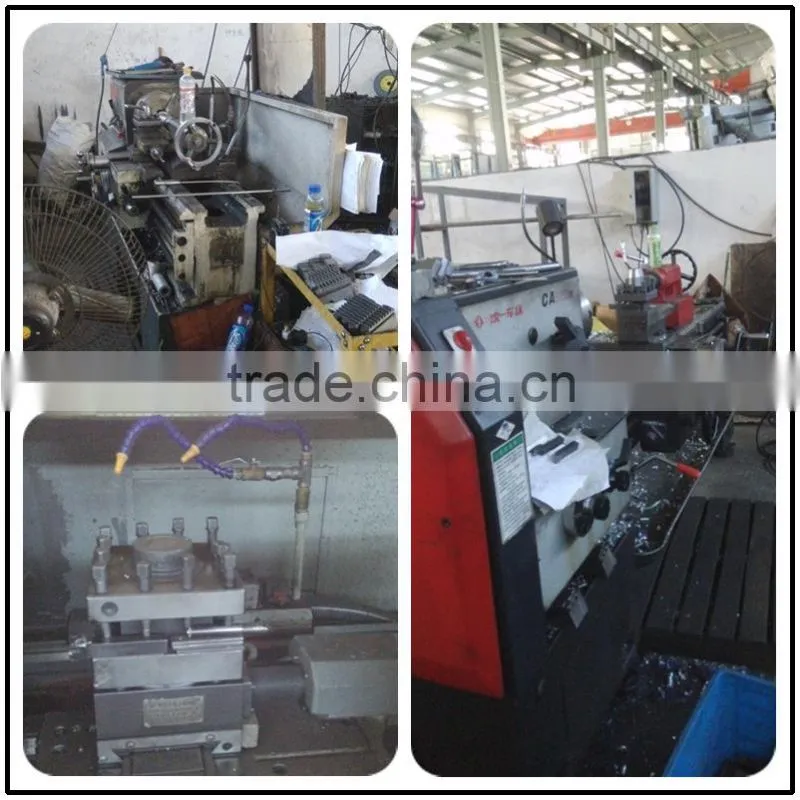

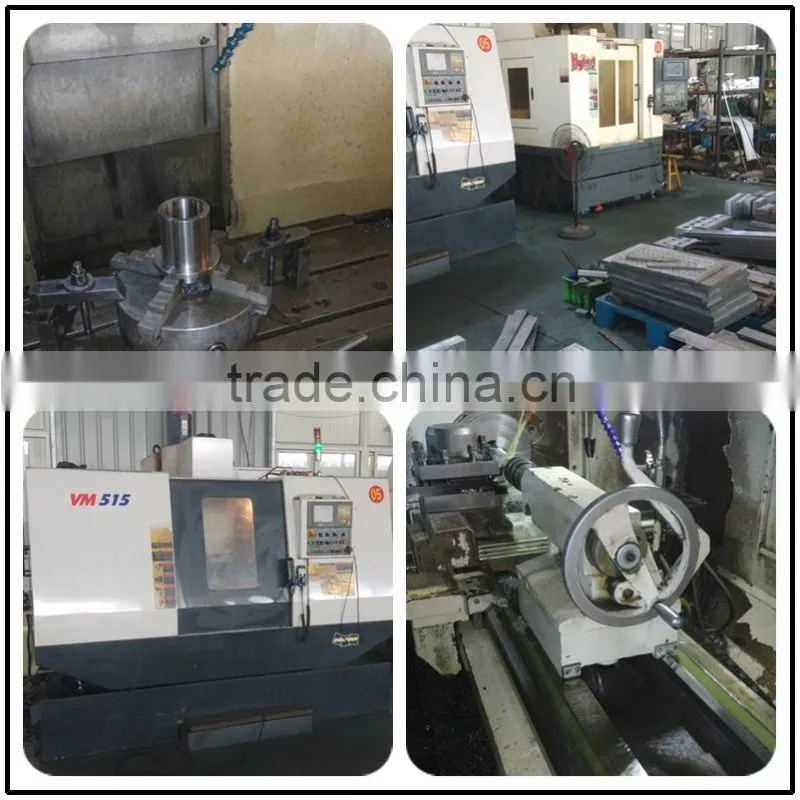

CNC center:
we have own CNC center to produce the spare parts by ourself to make sure the high level quality to mating our machine, extrusion blow molding machine.
REMARKS:
1.TERMS OF PAYMENT: 30% DEPOSIT BY T/T, AND THE REST PAYMENT SHOULD BE PAID BEFORE DELIVERY
2.PACKING:STANDARD EXPORT PACKING
3.LOADING PORT: NINGBO,CHINA
4.PARTIAL SHIPMENT IS NOT ALLOWED
5.INSURANCE EFFECTED BY BUYER
6.POWER: 3 PHASE,380V,60HZ
