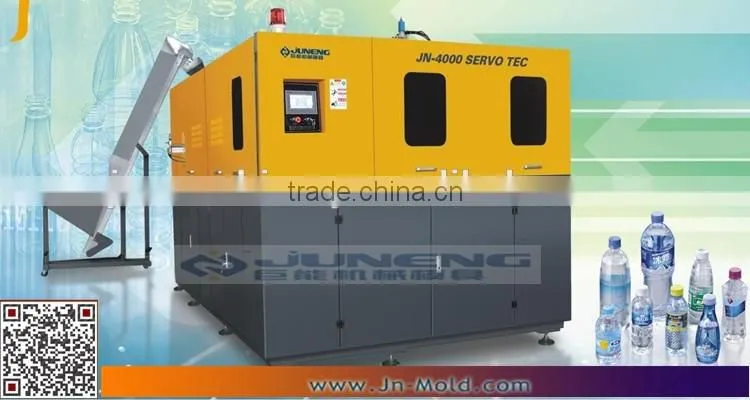

JN-4000 fully automatic stretch blow molding machine
- 80 Set / Sets per Month
- ningbo
- T/T Credit Card
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | JUNENG |
Model Number: | JN-4000 | Voltage: | design as your providing | Power(W): | 110kw |
Dimension(L*W*H): | 4.8*2.2*2.2m | Weight: | 6Ton | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product Description |
Certification:ISO and CE |
Full automatic |
SEPICIFICATIONS FOR JN-4000
| ||||
clamping system
| Clamping unit (Kg)
| 42000 | Mold stroke (mm) | 90 |
| ||||
Number of cavity (cavity)
| 4 | stretch stroke (mm) | 250 | |
Bottle of stroke (mm)
| 30 | Cavity pitch (mm) | 76.2 | |
Heating pitch ( mm)
| 76.2 | Number of holder (pcs) | 86 | |
Container | ntainer volume (Itr)
| 0.6 | Max. neck diameter (mm) | 38 |
Max. preform height (mm) | 140 | ntainer diameter (mm) | 110 | |
ntainer height (mm) | 250 | |||
Theoretical output B.P.H 4000
| ||||
Electrical System | Heating oven (UNITS)
| 8*7 | Heating power (Kw) | 67.2 |
Number of lamp (pcs) | 56 | Installed power (kw) | 75 | |
Voltage (voltage) | 220v/380v/3 phase | |||
Air System
| operating pressure (kg/cm²)
| 7 | Blowing pressure (Mpa) | 3.5 |
High pressure air (L/Min)
| 4200 | power (Kw) | 44 | |
chiller system | Tempreature ( ℃)
| 10-15 | Pressure (Mpa) | 0.3-0.5 |
Flow rate (L/Min) | 80 | Heating power (Hp) | 6 | |
machine | Size of machine (L*W*H) (m)
| 4.8*2.2*2.2 | Weight of machine (Ton) | 6 |
Machine component:
Components | Brand,Origin |
PLC controller | Delta,Taiwan |
Touch screen | Wenview, Taiwan |
Cylinder | SMC, Japan |
Filter | TPC, Korea |
Magnet valve | TPC, Korea |
Photoelectric switch | OMRON,Japan |
Contactor | Schneider,France |
Proximity switch | SICK ,German |
Sensor | OMRON,Japan |
Switch power | MEANWELL,Taiwan |
Frequency converter | Mitsubishi,Japan |
Main Servo motor | Mitsubishi 1.5kw,JAPAN |
Feeding Servo Motor | Mitsubishi 0.4kw,JAPAN |
oil valve | Li Shile |
Clamping | Hydraulic clamping |
Seal | Pipe fixed |

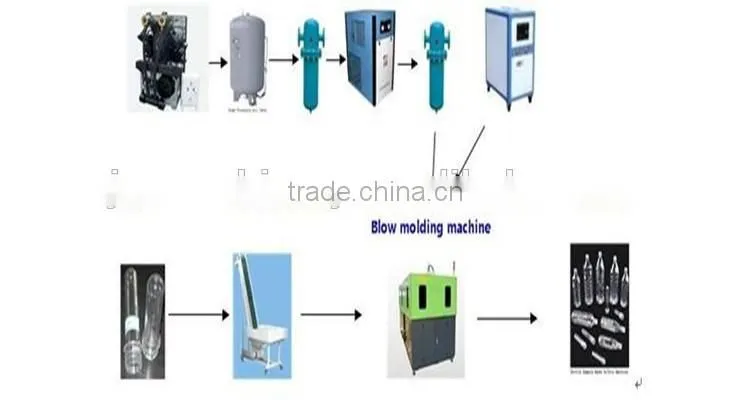

JN-4000 CONNECTIONS |
On the basis of our rich experience in stretch field , we all adopt high quality accessories,and in accordance with the requirement of customers ,we can supply machines with the standard configuration, the medium configuration and high configuration.
Characteristic
A. Control Unit: Delta,Taiwan PLC programmable controller and Germany SIEMENS touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.
B. Clamping Unit:Single cylinder double sliding tramroad, fast and balanced; four mould boards, high precision linearity leaders, single hydraulic cylinder double bidirectional open-closing mould.

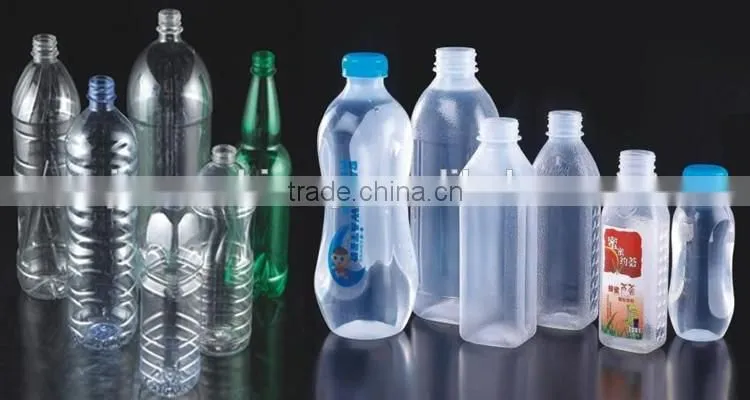

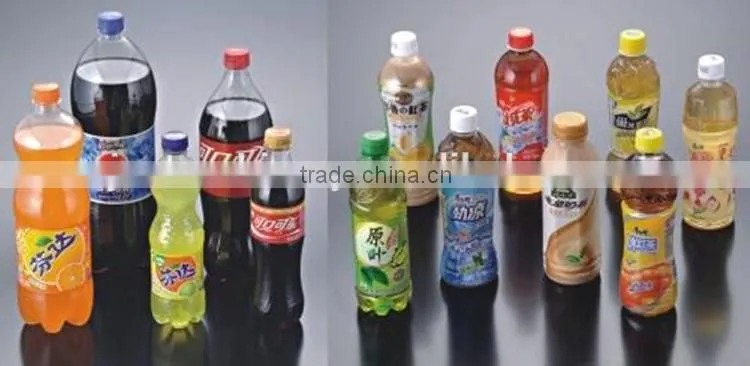

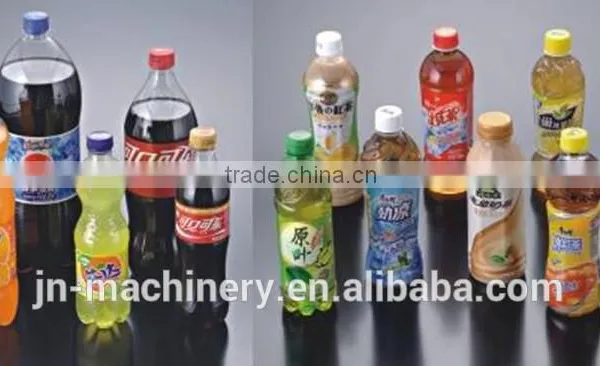

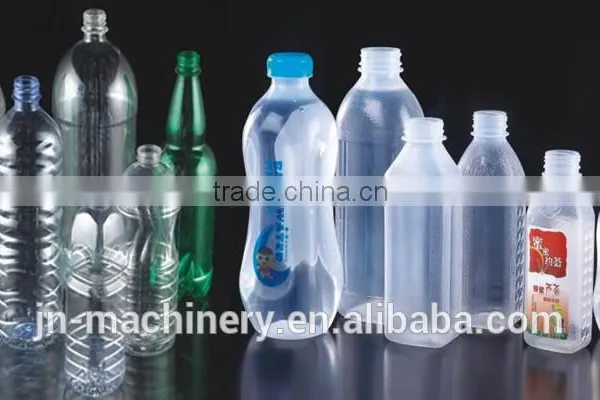

Products show |
Suitable for PET ,PP, bottle with any shapes for oil , CSD ( Carbonic Soft Drink), Beverage ,Mineral Water, Pesticide, Cosmetic, Jar etc containers.
Capacity:
Bottles from 10 miniliter to 2 liter
Material:
PET,PP
Products Features:
- Bottles produced never leakage
- Save cost of production
- High productivity automatically
Our certification |
Company profile |

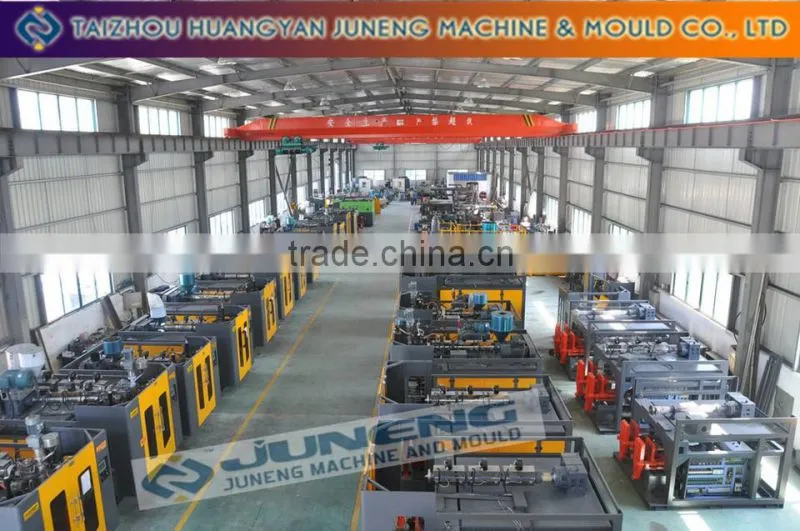

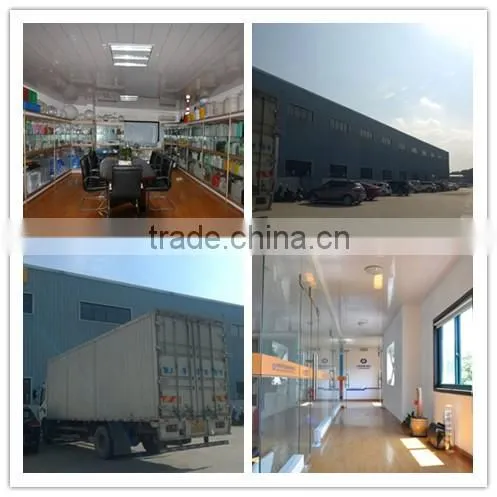

TAIZHOU HUANGYAN JUNENG MACHINE MOULD CO.,LTD. located in Huanyan Zhejiang----the Town of Mold. We have more than 20 years' experience in manufacturing the productions of HDPE Extrusion Blow Molding machines, PET stretch blow molding machine and assistant bottle cap moulds and have earned a good reputation with our customers.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing Details :
Inside : film and bubble wrap
Outside : standard wooden case
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery Details : 30-50 days after payment.
Q1: Are you a factory or trading company? |
A: We are a factory. |
Q2:Is it OK to print my logo on led light product? |
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. |
Q3:Do you offer guarantee for the products? |
A: Yes, we offer 1 years warranty to our products. |
Q4:How to proceed an order for machine? |
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. |
5Q: What is your terms of payment ? |
A:30% T/T in advance ,balance before shippment. |
6Q: Where is your factory located? |
A:Juneng Machine Mould Co.,Ltd. located in Huangyan,Zhejiang ---The Town of Mould.We are warmly welcome you to visit us. |
