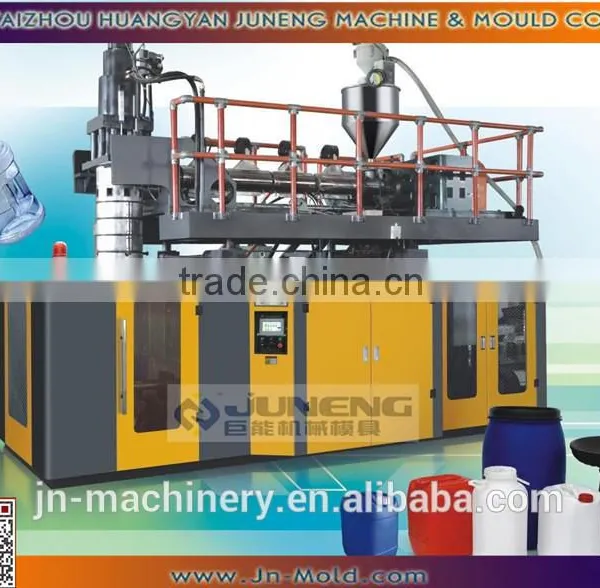

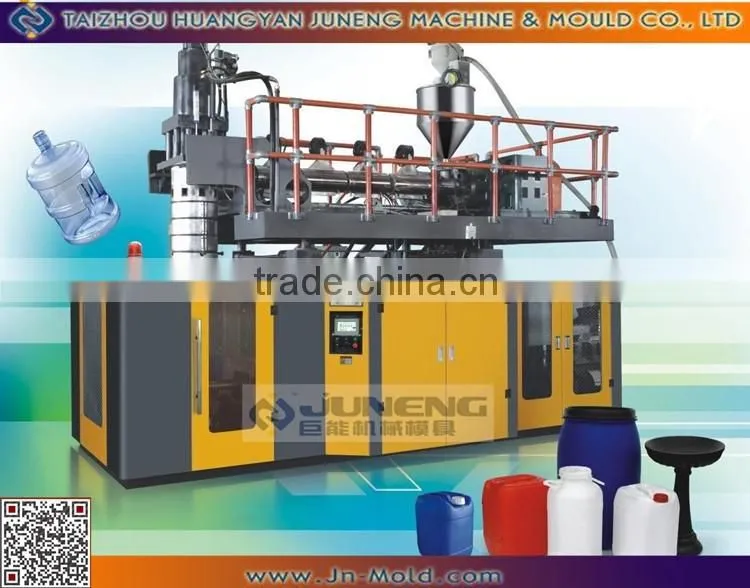

Help CenterJN-S30L Fully Automatic Extrusion Blow Molding Machine
Related Products
-
JN-S5L Fully Automatic Extrusion Blow Molding MachineUS$ 25,000 - 30,000MOQ: 1 Set -
JN-2S12L Fully Automatic Extrusion Blow Molding MachineUS$ 53,000 - 56,000MOQ: 1 Set
-
JN-2S12L Plastic PP/PE/PVC Bottle Extrusion Blow Molding MachineUS$ 53,000 - 56,000MOQ: 1 Set
-
JN-2S5L Plastic PP/PE/PVC Bottle Extrusion Blow Molding MachineUS$ 28,000 - 35,000MOQ: 1 Set
-
JN-6000 HIGH-SPEED AUTOMATIC BLOW MOLDING MACHINEUS$ 50,000 - 60,000MOQ: 1 Set
Product Description |
| Hydraulic pattern |
| Certification:ISO and CE |
Full automatic |
|
SEPICIFICATIONS FOR JN-2S5L
| ||||
|
clamping system |
Clamping force (KN)
|
215 | Mold stroke (mm) | 350~800 |
|
capacity (L)
|
4.4 | Size of mold (W*H)mm | 550*650 | |
|
Max.die diameter (mm)
|
300 | Die head capacity (Kw) | 5.28 | |
| container |
max. container volume ( L)
|
28 | ||
| blow system |
Dry Cycle (pc/h)
|
600 | Screw Diameter (mm) | 80 |
|
Screw L/D ratio (L/D)
|
24~26 | Screw motor power (Kw) | 30~37 | |
|
Screw heating capacity (Kw)
|
6.2~8.2 | No. of heating zone (*Zone) | 4 | |
|
Output of HDPE (Kg/hr)
|
100~120 | Oil pump drive power (Kw) | 22 | |
| air system |
Blowing pressure (Mpa)
|
0.8 | Air volume (m³/Min) | 0.8 |
| chiller system |
Cooling water pressure ( Mpa)
|
0.3 | Water consumption (L/min) | 60 |
| machine |
Size of machine (L*W*H) (m)
|
4.5*2.1*3.8 | Weight of machine (Ton) | 12 |

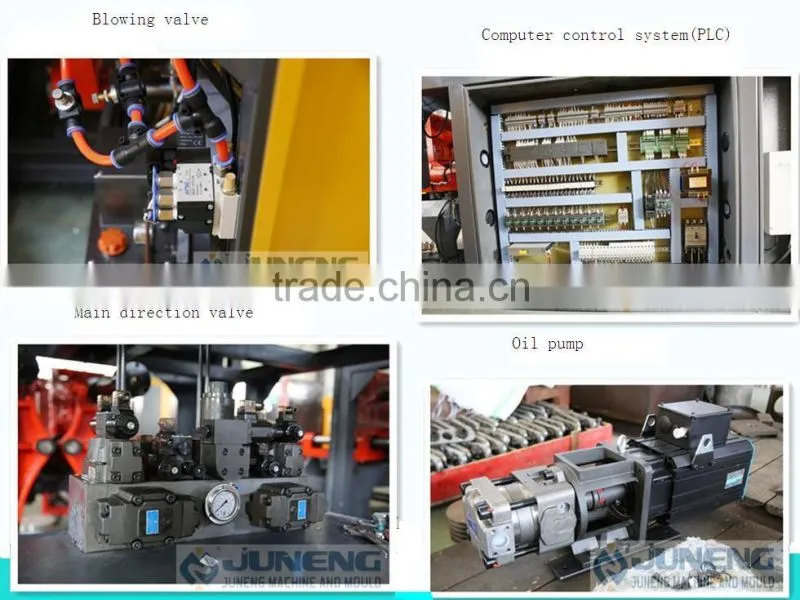

Machine component:
| Item | Standard |
| PC Touch Screen | SIEMENS |
| PLC Controller | SIEMENS |
| Oil Pump |
VICKERS (if use servo motor, SUMITOMO OIL PUMP connect servo motor ) |
| Main Direction Valve | Taiwan Northman hydraulic valve |
| Two-Way Proportional Valve | Taiwan Northman valve |
| Two-Way Multiply Throttle Valve | Taiwan Northman valve |
| OperatedCheck Valve | Taiwan Northman valve |
| Oil Seal | UK SEALTECH |
| Frequency | Taiwan DELTA |
| Blowing Valve | Taiwan AIRTAC |
| Motor Component |
China brand (if use servo motor, extruder motor use china brand and the oil pump motor use ITALY PHASE)
|
AC Contactor |
France SCHNEIDER |
| Air Switch | France SCHNEIDER |
| Thermal Relay | France SCHNEIDER |
| Small Relay | France SCHNEIDER |
| Product details |
On the basis of our rich experience in extrusion field , we all adopt high quality accessories,and in accordance with the requirement of customers ,we can supply machines with the standard configuration, the medium configuration and high configuration.
Characteristic
A. Control Unit:Japan Mitsubishi PLC programmable controller and Germany SIEMENS touch panel. English parameter process setting, state monitoring and products counting are convenient and intuitionistic. PLC automatic temperature control model.
B. Hydraulic Unit:It adopts international famous Taiwan NORTHMAN brand hydraulic valve and seal, proportional control. And has features of high stationarity and reliability, accurate operation, long longevity, quick response and so on.
C. Extrusion Unit:Hard gear surface decelerator; famous HFinverter inverter adopts Italian technology; Screw speed regulation adopts variable-frequency speed regulation control system. It has the features of stable rotate speed, powerful power, energy-saving and so on. Mixing screw has wide applicability to raw materials and the plasticization quality is even better. Energy-saving machine barrel and A-alloy heaters are adopted for heating.
D. Die Head Unit:With single cylinder material-center-in accumulator head, is smooth and dependable. This die head adopts German technology and is made by special imported steel.
E. Clamping Unit:Single cylinder double sliding tramroad, fast and balanced; four mould boards, high precision linearity leaders, single hydraulic cylinder double bidirectional open-closing mould.
F. Parison Programmer: reducing the differences on the width of the up and down due to reducing material and vertical tensile,and improve the uniformity of the wall thickness efficiently.
| Products show |

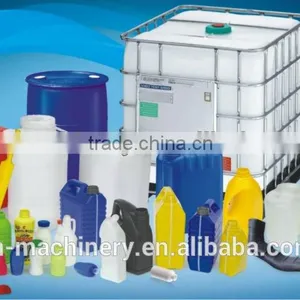

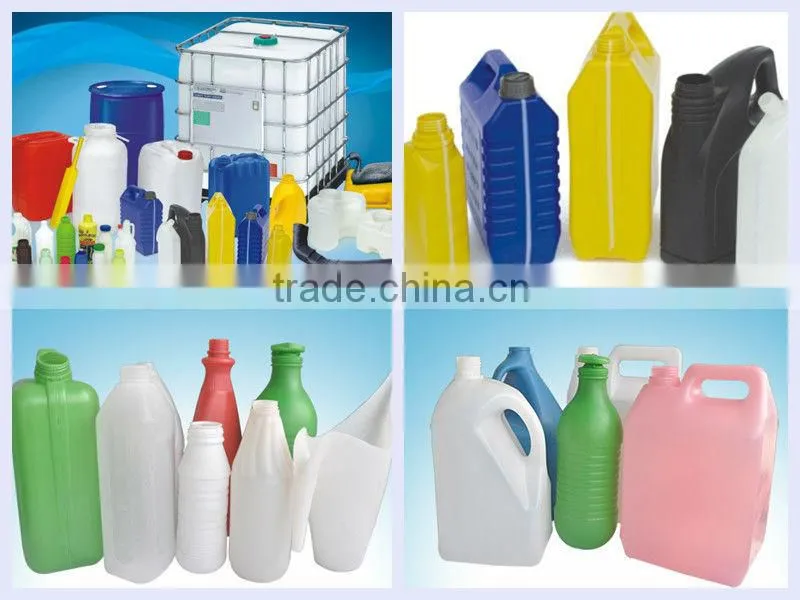

Suitable for PE ,pp,pvc bottle with any shapes for oil , CSD ( Carbonic Soft Drink), Beverage ,Mineral Water, Pesticide, Cosmetic, Jar etc containers.
Capacity:
Bottles from 5 liter to 12 liter
Layers:
1 layer, 2 layer, 3 layer, 4 layer
Material:
PE,PVC
Products Features:
- Bottles produced never leakage
- Save cost of production
- High productivity automatically
| Our certification |
| Company profile |
TAIZHOU HUANGYAN JUNENG MACHINE MOULD CO.,LTD. located in Huanyan Zhejiang----the Town of Mold. We have more than 20 years' experience in manufacturing the productions of HDPE Extrusion Blow Molding machines, PET stretch blow molding machine and assistant bottle cap moulds and have earned a good reputation with our customers.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing Details :
Inside : film and bubble wrap
Outside : standard wooden case
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery Details : 30-50 days after payment.
| Q1: Are you a factory or trading company? |
| A: We are a factory. |
Q2:Is it OK to print my logo on led light product? |
| A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample. |
| Q3:Do you offer guarantee for the products? |
| A: Yes, we offer 1 years warranty to our products. |
| Q4:How to proceed an order for machine? |
|
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. |
| 5Q: What is your terms of payment ? |
| A:30% T/T in advance ,balance before shippment. |
| 6Q: Where is your factory located? |
| A:Juneng Machine Mould Co.,Ltd. located in Huangyan,Zhejiang ---The Town of Mould.We are warmly welcome you to visit us. |
