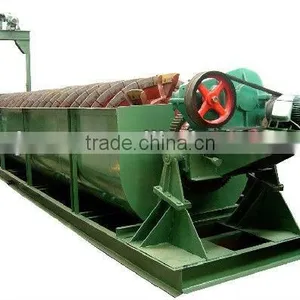

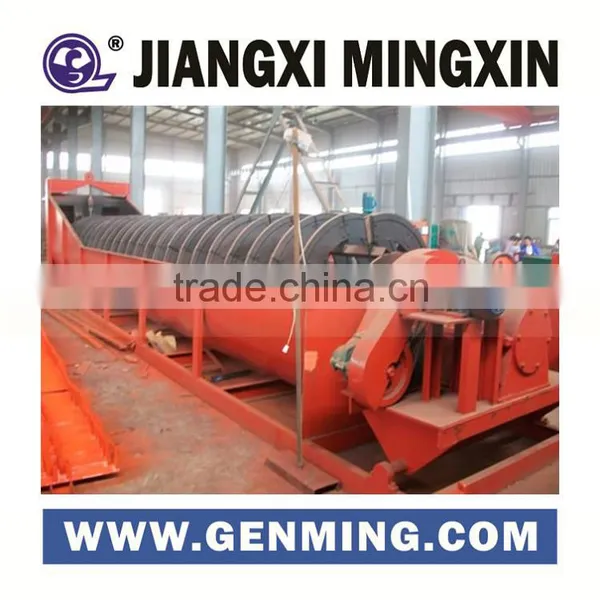

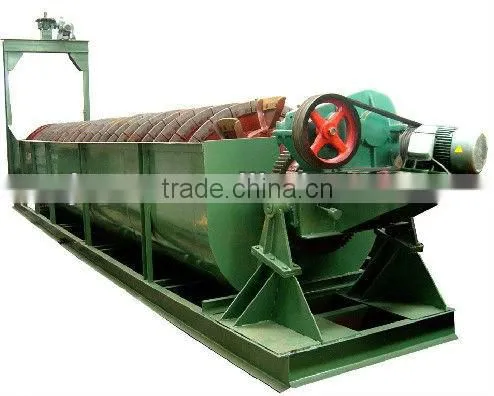

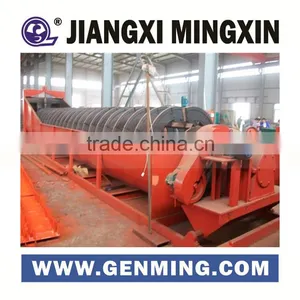

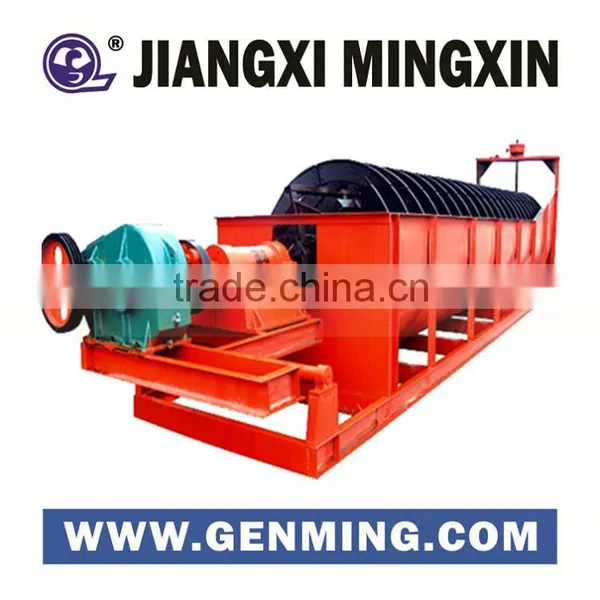

Help CenterMineral Processing Spiral Classifier
Related Products
-
Widely Applicable Best Quality Tungsten Spiral ClassifierUS$ 10,000 - 100,000MOQ: 1 Set -
Mine Machinery Hydrocyclone DesanderUS$ 100 - 5,000MOQ: 1 Set
-
Mine Machinery HydrocycloneUS$ 100 - 5,000MOQ: 1 Set
-
Hydrocyclone FilterUS$ 100 - 5,000MOQ: 1 Set
-
Hydrocyclone Separator Machine for ClassificationUS$ 100 - 5,000MOQ: 1 Set
The Spiral classifier is suitable for the beneficiation plant with the ball mill with closed-circuit circulation process, classification of ore or used in gravity concentrator to grade sand and mud and sand dehydrated feeding.
I. Spiral classifier application:
1. Separation of fine particles and liquid from coarse particles
2. Separation of light particles from heavy particles
3. Separation of the particles into a number of products graded according to size
4. Separation of liquid from solid particles
II. Main benefits of spiral classifier:
1. Energy saving
2. Heavy duty, rugged construction
3. Powerful self-contained spiral lifting device
4. Continuous spiral raking
5. Optimal particle size range 800 to 75 microns
Type |
Axle swing times(r/m) |
Capacity(t/h) |
Water channel pitch(degree) |
Spiral Machine |
Lift machine |
dimension (L*W*H) mm |
Weight(t) |
|||
Bleed(t/day) |
Back(t/day) |
|
Type |
Motor power(KW) |
Type |
Motor power(KW) |
|
|
||
FLG-300 |
12 |
10-30 |
38-105 |
14-18 |
Y90S-6 |
0.75 |
|
|
3844*646*835 |
0.668 |
FLG-500 |
9.8 |
45-75 |
145-260 |
14-18 |
Y60L-6 |
1.1 |
|
|
5430*934*1274 |
1.575 |
FLG-750 |
8.5 |
65-154 |
255-563 |
14-18 |
Y132S-6 |
3 |
|
|
6720*1267*1584 |
2.688 |
FLG-1000 |
7.6 |
50-260 |
216-1000 |
14-18 |
Y132M-6 |
5.5 |
|
|
7891*1570*1934 |
4.104 |
FLG-1200 |
5.6.7 |
150-530 |
1145-3680 |
12 |
Y132M-6 |
5.5 |
Y90L-4 |
1.5 |
9460*1834*2566 |
8071 |
FLG-1500 |
4-6 |
230-460 |
1120-5360 |
12 |
Y160M-6 |
7.5 |
Y90L-4 |
1.5 |
10199*1976*4080 |
12.54 |

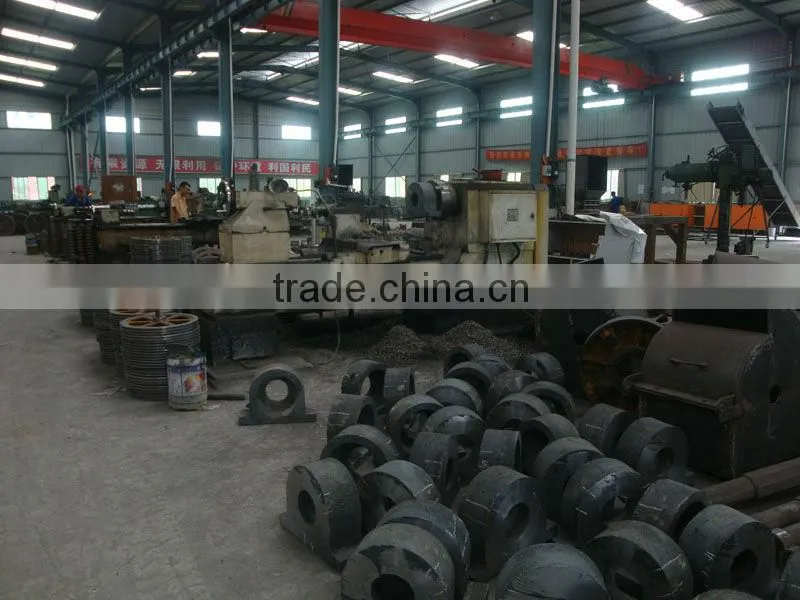

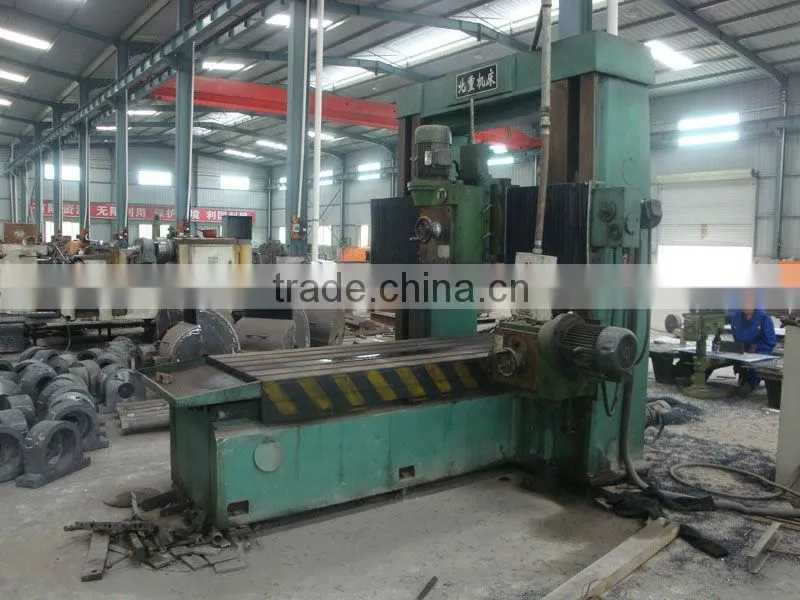

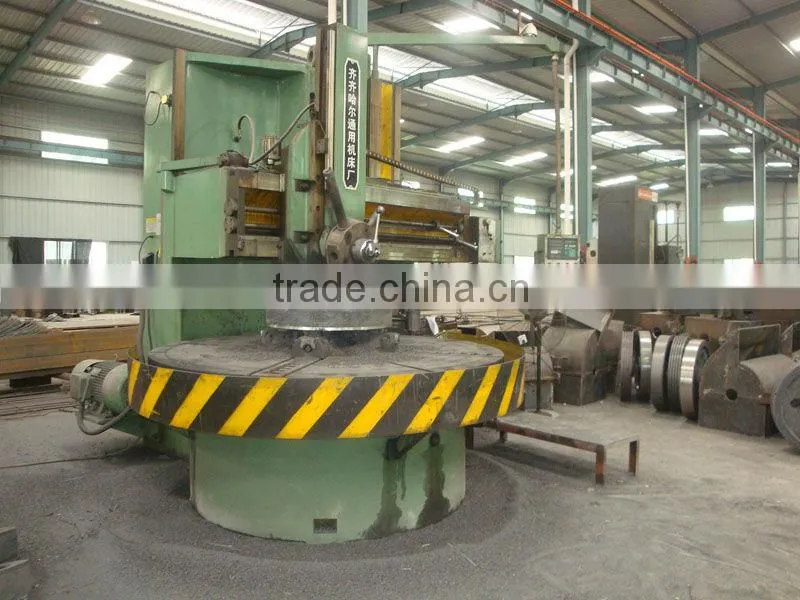

Factory show:
