Specifications
1. Measuring scope: 0.00mA~300A(50/60Hz) 2. Accuracy: 0.01mA3. LCD display, Data Storage:99 sets
4.Data upload: RS232 inte

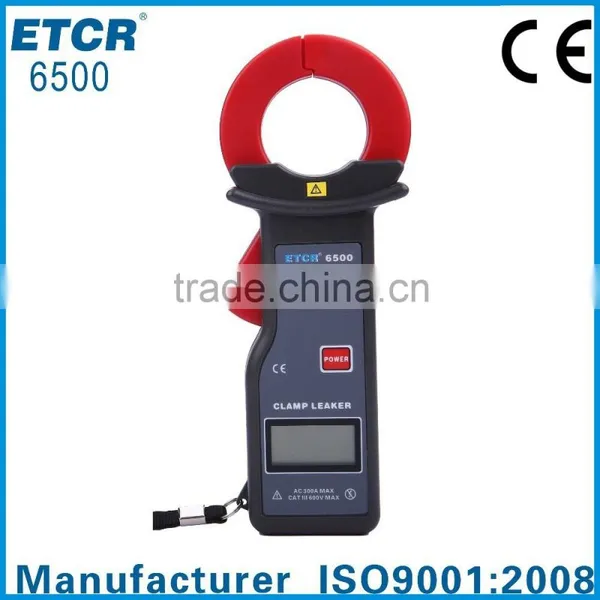

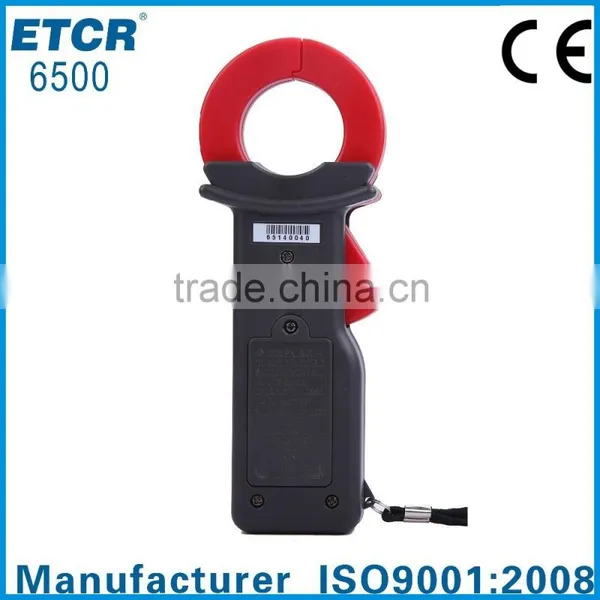

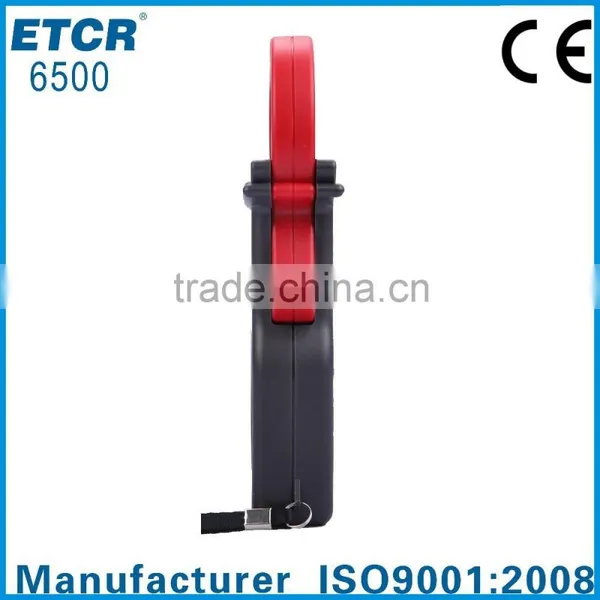

ETCR6500 High Accuracy Clamp Leaker

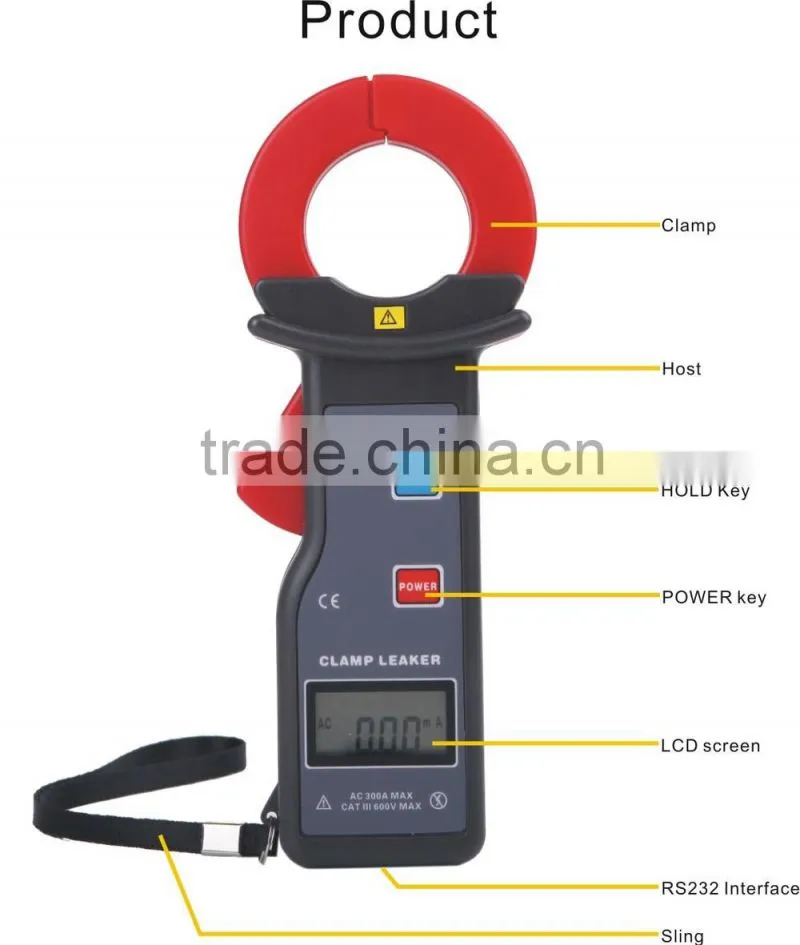

Product Features
1. Measurement of AC leakage current, AC current, online AC current
2. Newest Double Shielding, high Accuracy and Strong Anti-interference Capability
3. Current range: AC 0.00mA~300A;;

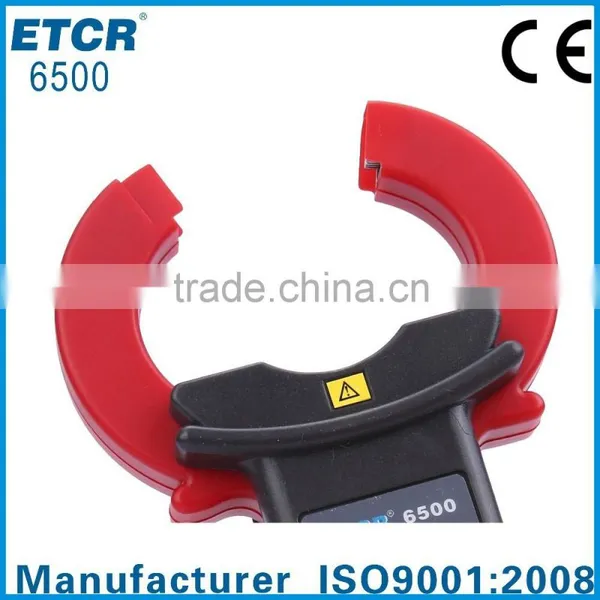

4. Size of clamp: 35mmx40mm
5. Peak hold function
6. With RS232 interface
7. Data storage: 99sets
Model Difference
Model |
Range |
Resolution |
Clamp size |
ETCR6000 |
AC/DC 0mA~60.0A |
1mA |
φ7mm |
ETCR6100 |
AC/DC 0.0A~1000A |
0.1A |
30mm×35mm |
ETCR6300 |
AC 0.000mA~60.00A |
1uA |
25mm×30mm |
ETCR6500 |
AC 0.00mA~300.0A |
0.01mA |
35mm×40mm |
ETCR6600 |
AC 0mA~600A |
1mA |
35mm×40mm |
ETCR6800 |
AC 0.00mA~1200A |
0.01mA |
φ68mm |
ETCR6800D |
AC 0.0A~1500A ,DC 0.0A~2000A |
0.1A |
φ68mm |
Technical Specifications
Function |
Measurement of AC leakage current, AC current, online AC current |
Power Supply |
Zn-Mn dry battery 6F22 9V |
Measure Type |
Clamp CT, Integral Approach |
Display Type |
4 Digits LCD,35mm×21.5mm;display domain:32mm×15mm |
Sample rate |
2time/sec |
Frequency |
50Hz,60Hz Automatic identification |
Shifting |
Automatic Shift |
Size of clamp |
35mm×40mm |
Meter Dimension |
LxWxH:180mm×70mm×38mm |
Meter Weight |
140g(With battery) |
Range |
0.00mA~300A |
Resolution |
0.01mA |
|
Accuracy (23℃±3℃,below70%RH) |
0~60A: ±1.5%±5dgt |
60A~200A: ±2%±5dgt | |
200A~300A: ±3%±5dgt | |
300A~600A: ±4%±5dgt | |
Line Voltage |
AC600V |

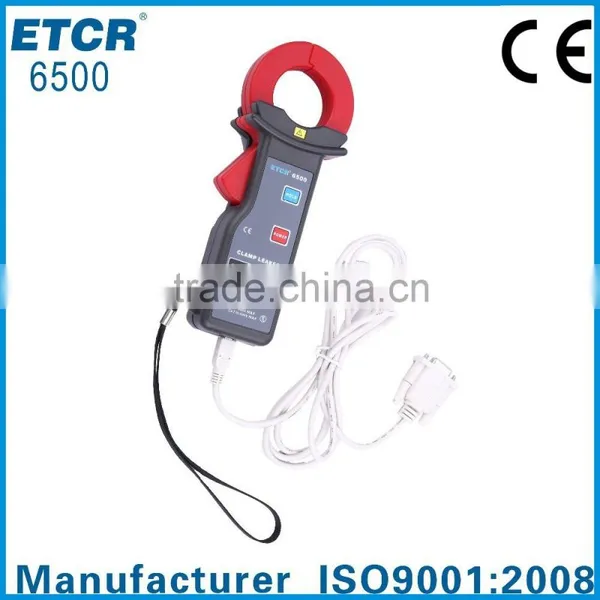

RS232 Interface |
With RS232 interface, Data stored in the memory can be uploaded to the computer, with software monitoring |
Data storage |
99 sets, “FULL” Blinking when memory is full |
Peak Maintaining |
Peak value capture hold function, press HOLD without Release to display peak value |
Reading Hold |
Reading hold function: “DH” symbol display |
Overflow Indication |
Range overflow function: “OL” symbol display |
Shutdown |
5 minutes after boot up |
Battery voltage |
When the voltage is below7.2V, the low voltages signal“ ” warn to replace the battery. |
Rated Power |
5mW |
Humiture |
0℃~40℃;below 80%rh |
Insulation Strength |
AC2kV/rms. (between core and housing) |
Safety Provisions |
IEC1010-1, IEC1010-2-032, Pollution Degree: 2, CAT Ⅲ(600V) |

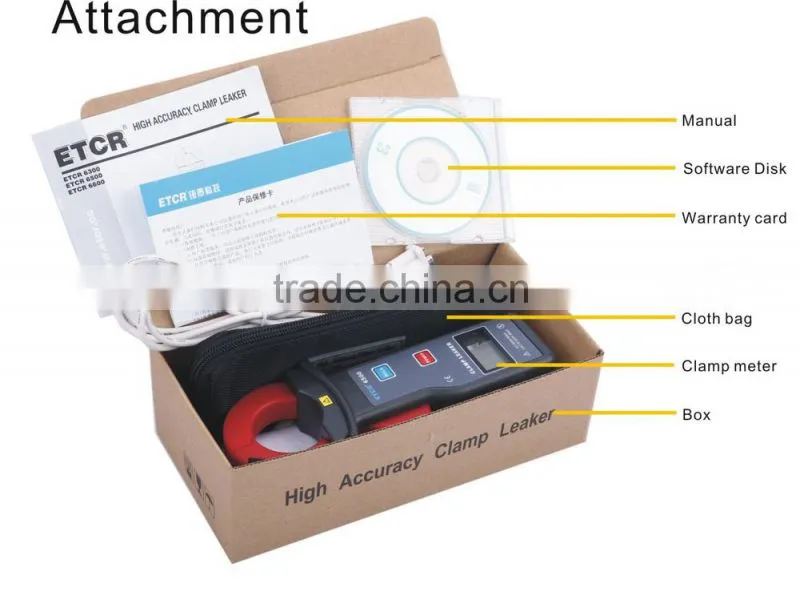

Accessories |
Meter: 1 pc; RS232 Com-cable:1 pc; Disk: 1 pc; Battery (6F22 9V): 1 piece |
Packing Size: (L ×W ×H): 220× 70×110(mm)
Weight: 0.25Kg
