ISO CE ETCR6800 High Accuracy Clamp Leaker

ISO CE ETCR6800 High Accuracy Clamp Leaker thumbnail-1
ISO CE ETCR6800 High Accuracy Clamp Leaker thumbnail-2
ISO CE ETCR6800 High Accuracy Clamp Leaker thumbnail-3
ISO CE ETCR6800 High Accuracy Clamp Leaker thumbnail-4
ISO CE ETCR6800 High Accuracy Clamp Leaker thumbnail-5
ISO CE ETCR6800 High Accuracy Clamp Leaker photo-1
ISO CE ETCR6800 High Accuracy Clamp Leaker photo-2
ISO CE ETCR6800 High Accuracy Clamp Leaker photo-3
ISO CE ETCR6800 High Accuracy Clamp Leaker photo-4
ISO CE ETCR6800 High Accuracy Clamp Leaker photo-5
US$ 133.47 - 233.33 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ETCR
Model Number:
ETCR6800
Contact Supplier Request Quote Chat Now
Guangzhou ETCR Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ETCR
Model Number ETCR6800
Display Type Digital Only
Measuring Range 0.00mA~1200A
Accuracy Class 2
Supply Voltage 9V
Operating Temperature -10℃~40℃
Dimensions 224*115*43mm

Specifications

Measuring range: AC 0.00mA ~ 1200A
Accuracy: 0.01mA
LCD display, Data Storage:99sets
Data upload: RS232 interface

ETCR6800 High Accuracy Clamp Leaker

Product information





ISO CE ETCR6800 High Accuracy Clamp LeakerISO CE ETCR6800 High Accuracy Clamp Leaker

Product Features

1. Measurement of AC leakage current, AC current, online AC current

2. Newest Double Shielding, high Accuracy and Strong Anti-interference Capability

3. Current range: AC 0mA~600A;

4. Size of clamp: 35mmx40mm

5. Peak hold function

6. With RS232 interface

7. Data storage: 99sets





 ETCR6800 High Accuracy Clamp Leaker is specially designed for measurement of AC leakage current; by adopting up-to-date CT technology and digital integration technology, it is a product with relatively small size, large clamp, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments. Clamp core of this High Accuracy Clamp Leaker adopts special alloy; in addition, with utilization of magnetic shielding technology, it is almost free from influences of external magnetic field so as to ensure high precision, high stability and high reliability of perennial continuous measurement.



       This High Accuracy Clamp Leaker obtains one USB interface. With the help of the software that we provide, many functions are available. For example, the meter can realize on-line monitoring, historical data inquiry, active curve drawing, indication of max, min and average value and indication, alarm value setting, indication of alarm value, historical data inquiry, export, and print. This meter can use to measure current of AC circuit with AC voltage lower than 600V, on-line current; and have the function of peaking holding, data holding data storage; with convenient use, it is essential tool for electrician safety testing.





Model Difference

Model

Range

Resolution

Clamp size

ETCR6000

AC/DC  0mA~60.0A

1mA

φ7mm

ETCR6100

AC/DC  0.0A~1000A

0.1A

30mm×35mm

ETCR6300

AC  0.000mA~60.00A

1uA

25mm×30mm

ETCR6500

AC  0.00mA~300.0A

0.01mA

35mm×40mm

ETCR6600

AC  0mA~600A

1mA

35mm×40mm

ETCR6800

AC  0.00mA~1200A

0.01mA

φ68mm

ETCR6800D

AC 0.0A~1500A ,DC 0.0A~2000A

0.1A

φ68mm



Technical Specifications

Function

Measurement of AC leakage current, AC current and on-line measurement

Power

Zn-Mn dry battery,6F22,9V

Size of jaw

Φ68mm

Range

0.00mA~1200A

Resolution

0.01mA

Accuracy

(23℃±3℃,below70%RH)

0.00mA~59.9A:   ±1.5%±5dgt

60.0A~199A:     ±2%±5dgt

200A~599A:      ±3%±5dgt

600A~1200A:     ±4%±5dgt

Test Mode

Clip-on CT, integral mode

Display Mode

Four digits LCD display

Dimension

H x W x T:224mm×115mm×43mm

LCD Dimension

35mm×21.5mm;display domain:32mm×15mm

Sampling Rate

about 2 times/s

Range Shift

Automatically

Voltage Range

AC600V

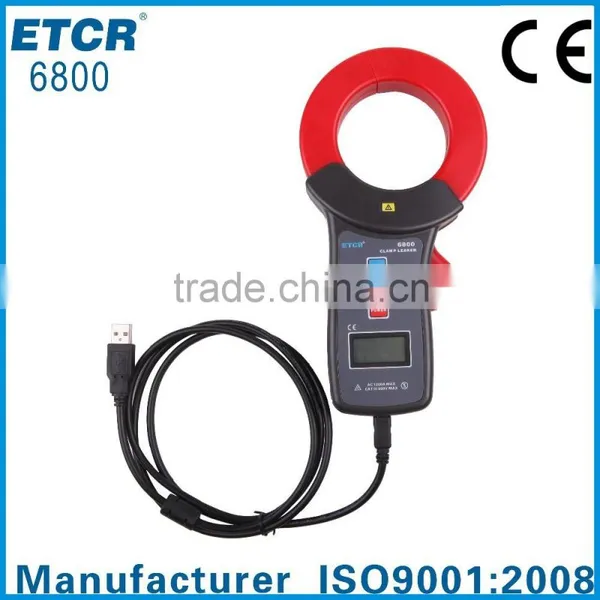

USB Interface

Upload Data to PC, or on-line monitoring

USB line

1.5m

Storage

99units,all used when display FULL

Peak Hold

Push HOLD without release, the meter will show the peak value during the pushing period

Reading Hold

DH indicating the reading is hold

Out of Range

OL indicating the current is out of range

Auto Power-off

5 Minutes after power on, it will power off automatically to lower the power consumption

Battery Voltage

“   ”Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed

Weight

515g(including the battery)

Consumption

About15mW

Work environment

0℃~40℃,below 80%rh

Storage environment

-10℃~60℃,below 70%rh

Insulating Strength

AC2kV/rms. (between the alloy of the clamp and the housing)

Applicable Safety Rules

IEC1010-1,IEC1010-2-032,pollution  2,CAT Ⅲ(600V)

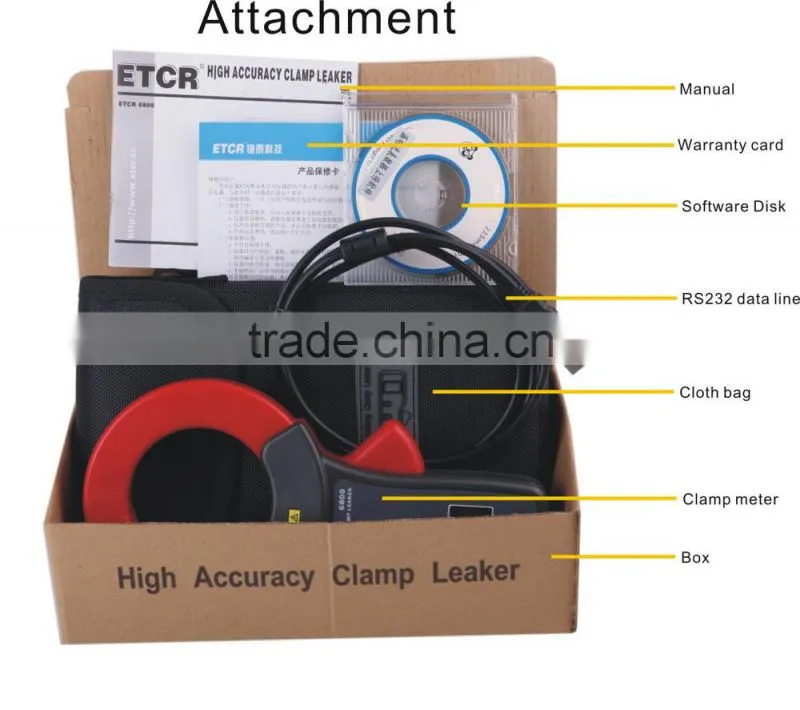

Accessories

Meter: 1pc; Toolkit: 1pc; USB communication line: 1pc; Disk: 1pc.
Packing

Packing Size: (L ×W ×H): 247× 145×70(mm)

Weight: 0.72Kg
