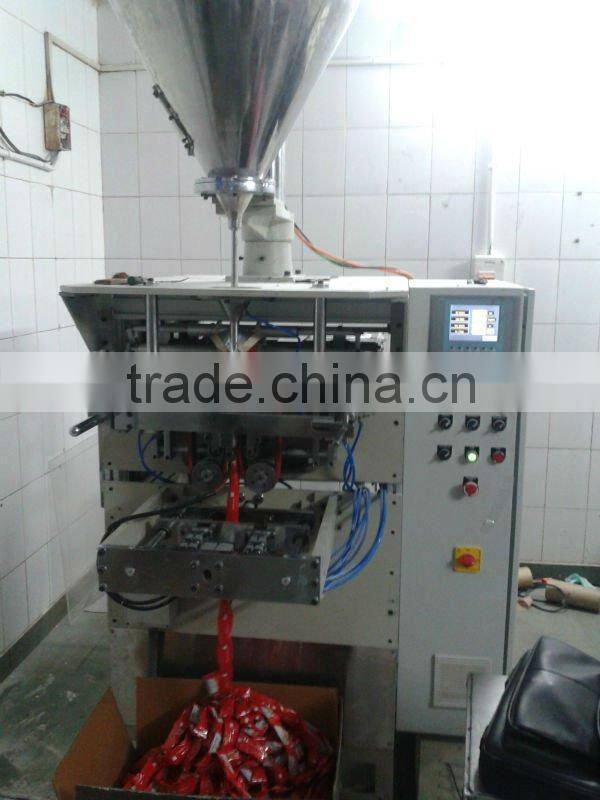

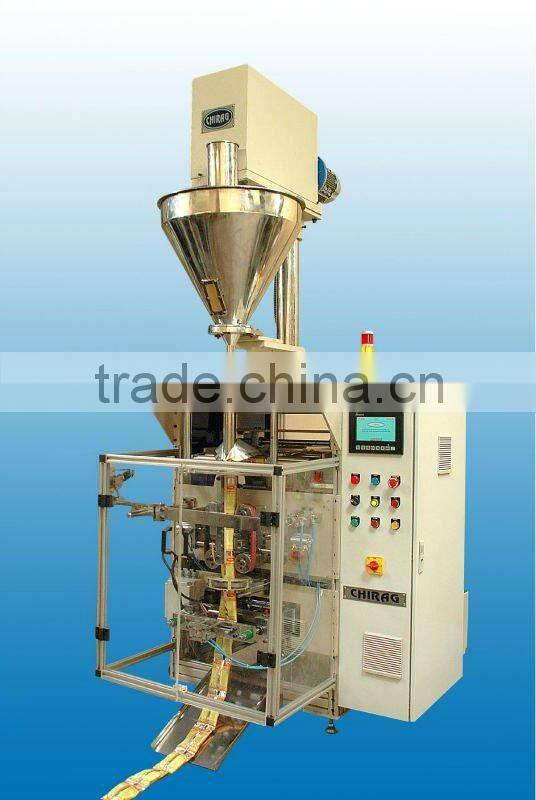

Detergent Powder Packing Machine

• The chirag electronics series CH-100 is ideal bagger to pack various products at high speed. It is suitable to pack Detergent powder, spices, milk powder, glucose, tea, coffee, rice, salt, sugar, snacks & dry fruits.

• Filling Range: 100gm to 500gm/ 500gm to 2000gm.

Features:

• Controlled by PLC with color touch screen.
• AC Servo drive in auger filling/AC Inverter drive for pulling paper.
• Self diagnostic features.
• Easy loading of film roll.
• No product no fill to ensure no wastage of bags.
• Safety doors interlocked.
• Password protection.
• Fault history.
• Technical specification:
• Bag Width: 60 to 225mm
• Out put: 80 T0 90 Bags/Min.
• Max. roll dia: 480mm
• Bag type : Center seal
• Supply voltage: 415V, 3phase, 50 Hz
• Power requirement: 5.5Kw
• Air requirement: 6kg/cm2
• Machine weight: 1500kg.
• Machine dimension: 7' * 4' * 9'

• Commenced in the year 2002, we are one of the top manufacturers and suppliers of Liner carton filling & sealing machines , flexible pouch packaging machines, Bagger machines, Jar filling lines, impeller packer, fluid filling machines etc,. Our assortment is acclaimed for its features of accurate dimension, trouble free operation and easy installation. These are hugely demanded in the industries and areas such as Dairy industry, Food industry, chemical industry, packaging industry, export houses and others. In addition to that, we also undertake customized packaging services on contract basis.

• With a remarkable experience of 15 years experience in the field, our founder Mr. Parveen Parashar guided us to continuous growth. Under his guidance, we have developed a dedicated team that supports us in achieving our targets. They enable us to meet the demands of the markets in the form of product and service. Our R&D personnel are continuously involved in various research and they carry out regular analysis which helps us to update ourselves according to the latest developments in the field of packaging.

• On the basis of the specific demands of customers, we provide custom made product range to them. We effectively pack the products with good quality packing material and deliver them on timely basis. All these things helped us to achieve our reputed position and goodwill in the domestic markets.

Our Filling System

• Since a variety of products can be packed on our packaging machines, we have also developed suitable, fast and accurate filling systems. our new electronic fillers give an accuracy of 0.5%. For powders, our servo driven augers are not only reliable and trouble free but also accurate up to 0.3%.

• For granules packaging, we have Cup Filler, Multi head weigh filler, Load cell based Double beam Weigher and Vibratory Weigh Filler & for bulk packaging, we have Net Weighter, Gross weigher, Impeller packer, Air packer, canister filler etc.

Quality Assurance

• We- as a quality oriented firm is committed to our clients to give them superior quality range of packing machines. For maintaining high quality standard in our company, we implement established quality control policy in our firm.

• On the basis of this policy our quality inspectors check the raw material, supervise the production process and test the finished product to make sure that they have required market standard.

Modern Manufacturing Unit

• A well equipped manufacturing unit is essential for the success of every establishment, and we possess such a full fledged unit. Our manufacturing unit is situated in an area of 500 square yards and we have a production capacity of 8 to 10 machines per month. We make use of advanced machines and equipment which is as follows:

• 1) Cutting Machine

• 2) Winding Machines

• 3) Special Purpose Winding machine

• 4) Taping Machine

• 5) Rectangular Ct Winding Machine

• 6) Slider Toroidal

• 7) Single Shuttle

• These facilities enable us to manufacture our range in bulk quantity and with unmatched quality. Our manufacturing unit is supported by an In-house design unit with CAD/ CAM facility which helps us to give innovative designs for our range.

• We also have one of our sister concern unit by the name of M/s Inventive Packaging Private ltd. is a professionally managed company engaged in manufacturing and supplying of lined (Ceka) and mono cartons.

• Started to create milestones, we Inventive Packaging Pvt. Ltd. marked our presence in the year 2011 and operates in the manufacturing of lined (Ceka pack) and mono cartons. We breathe with the aim to satisfy our clients with our smart products / services.

PRODUCTS WE MANUFACTURE

• We are an able manufacturer, exporter and supplier of a wide range of packaging products comprising:

• Lined Cartons (CEKA PACK)

• Mono Cartons

• We design cartons as per the need of today's fast moving environment and business schedule.
